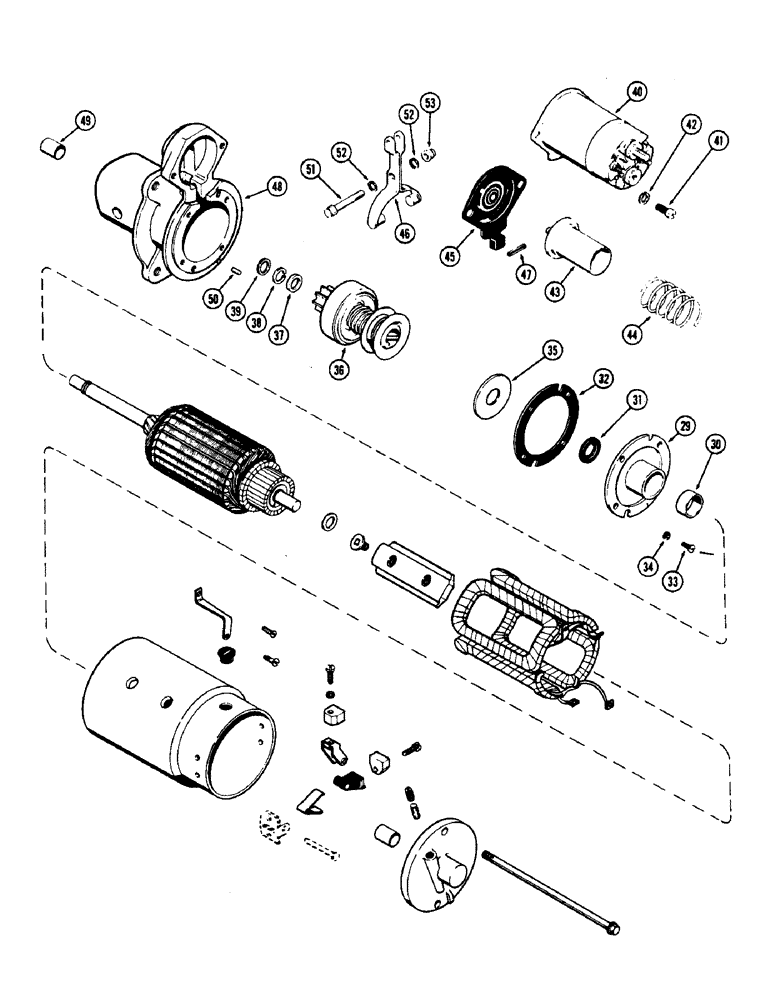

Запчасти Case 430CK (057E) - A36583 STARTER, (188) DIESEL ENGINE

A36583

STARTER MOTOR

STATOR ASSY - (Continued from Figure 57C) (See note), Inlcudes: Ref. 29 - 53

1шт.

29

A40223

PLATE

ASSY. - center bearing, Inlcudes: Ref. 30 and 31

1шт.

30

A41982

BUSHING

BEARING - center plate

1шт.

31

A40228

OIL SEAL

- center

1шт.

32

A41981

GASKET

- bearing plate

1шт.

33

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- plate to housing, #10-32 x 3/8" rd. hd.

4шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

35

R15043

WASHER

- thrust, center bearing

1шт.

36

A41871

DRIVE

ASSY. - starter (Replaces A25337)

1шт.

37

R15049

COLLAR

- stop, starter drive

1шт.

38

R15048

RING

- snap, collar

1шт.

39

A25385

WASHER

- thrust, starter drive

1шт.

40

G44891

SOLENOID

ASSY. - (See Figure 57O)

1шт.

41

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- solenoid mtg., 1/4 x 1/2" N.C. rd. hd.

2шт.

42

192-10

WASHER - lock, 1/4"

2шт.

43

A40218

PLUNGER

- solenoid

1шт.

44

A40221

SPRING

- plunger return

1шт.

45

A42126

GASKET

BOOT - solenoid cover

1шт.

46

A40220

LEVER

- shift, drive

1шт.

47

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

48

A40224

FRAME

HOUSING ASSY. - drive end, Inlcudes: Ref. 49

1шт.

49

A40227

BUSHING

- armature shaft

1шт.

50

R15041

PIN - locating

1шт.

51

A40520

BOLT

- pivot, shift lever

1шт.

52

A42181

SEALING WASHER

- seal, pivot stud

2шт.

53

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.
