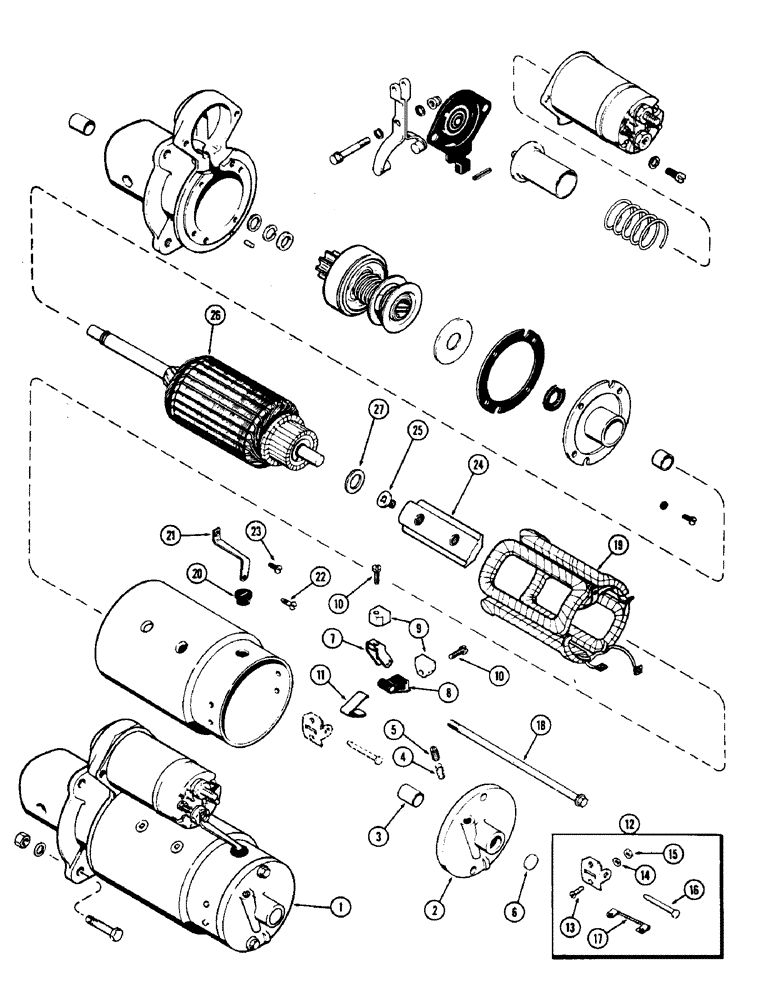

Запчасти Case 430CK (057C) - A36583 STARTER, (188) DIESEL ENGINE

1

A36583

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #1107583) (Order A39839) (See Figure 57K) (See note), Inlcudes: Ref. 2 - 27

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end, Inlcudes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - oil wick hole, 1/8" P.T.

1шт.

6

R15021

PLUG

PLUG - expansion

1шт.

7

A40217

HOLDER

HOLDER - ground, brush

2шт.

8

R15027

HOLDER

HOLDER - insulating, brush

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush holder

4шт.

11

A25359

SPRING

SPRING - brush, pressure

2шт.

12

A25379

KIT

SUPPORT KIT - brush holder, Inlcudes: Ref. 13 - 17

1шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - brush support, #10-24 x 1/2" rd. hd.

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - support screw, #10-24

2шт.

16

A41983

PIN

PIN - brush holder

2шт.

17

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

2шт.

18

A25552

BOLT

BOLT - thru

2шт.

19

A25319

COIL

COIL - field

1шт.

20

A41980

GROMMET

GROMMET - connector

1шт.

21

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

22

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - connector, #10-32 x 7/16" rd. hd.

1шт.

23

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

24

A25391

SHOE

SHOE - pole

4шт.

25

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe, 3/8 x 5/8" N.F. flat hd.

8шт.

26

A40219

ARMATURE

ARMATURE - starter

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, commutator end

1шт.
