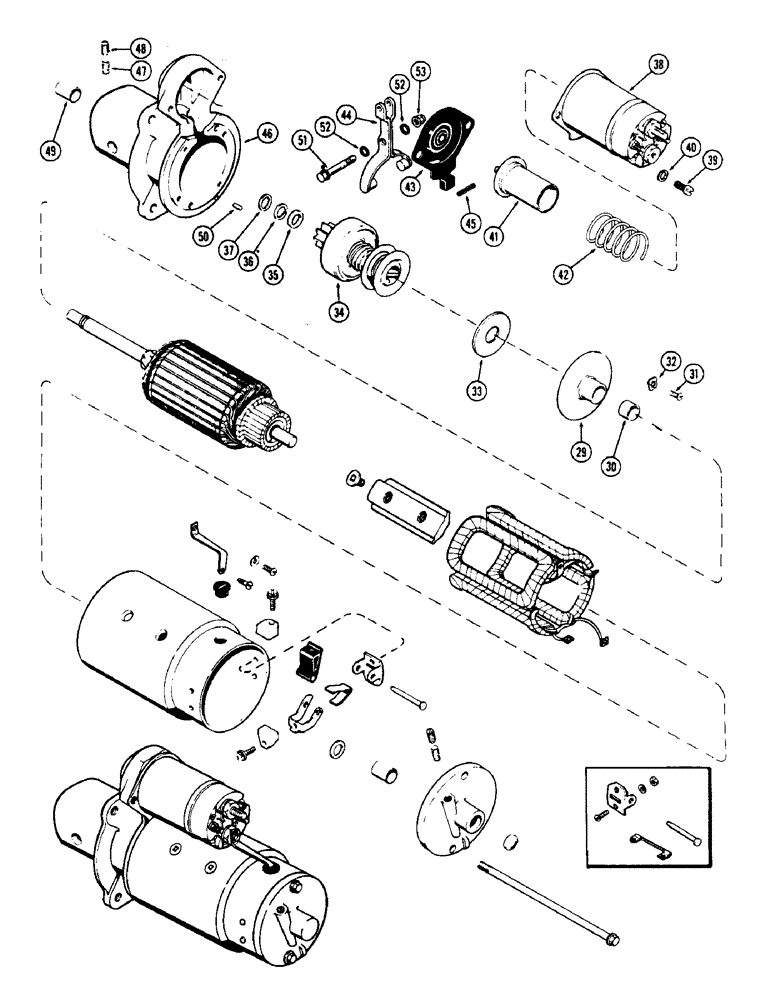

Запчасти Case 430CK (057A) - A36582 STARTER, (188) DIESEL ENGINE

A36582

STARTER ASSY. - (Continued from Figure 56) (See note), Inlcudes: Ref. 29 - 53

1шт.

29

A40215

PLATE ASSY.

- center bearing, Inlcudes: Ref. 30

1шт.

30

A42125

BUSHING

BEARING - center

1шт.

31

A41959

SCREW,#10 - 32 x 3/8"

- plate to drive housing

2шт.

32

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - Shakeproof, #10 int./ext.

2шт.

33

R15043

WASHER

- thrust, center bearing

1шт.

34

A41871

DRIVE

ASSY. - starter (Replaces A25337)

1шт.

35

R15049

COLLAR

- stop, starter drive

1шт.

36

R15048

RING

- snap, collar

1шт.

37

A25385

WASHER

- thrust, starter drive

1шт.

38

G44891

SOLENOID

ASSY. - (See page 57O)

1шт.

39

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- solenoid mtg., 1/4 x 1/2" N.C. rd. hd.

2шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

41

A40218

PLUNGER

- solenoid

1шт.

42

A40221

SPRING

- plunger return

1шт.

43

A42126

GASKET

BOOT - solenoid cover

1шт.

44

A40220

LEVER

- shift, drive

1шт.

45

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

46

A40226

FRAME

HOUSING ASSY. - drive end, Inlcudes: Ref. 47 - 49

1шт.

47

R15129

WICK

- oil

1шт.

48

221-1041

PLUG

- oil wick hole, 1/8" P.T.

1шт.

49

A25387

BEARING

BUSHING - armature shaft

1шт.

50

R15041

PIN - housing locating

1шт.

51

A40520

BOLT

- pivot, shift lever

1шт.

52

A42181

SEALING WASHER

- seal, pivot stud

2шт.

53

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.
