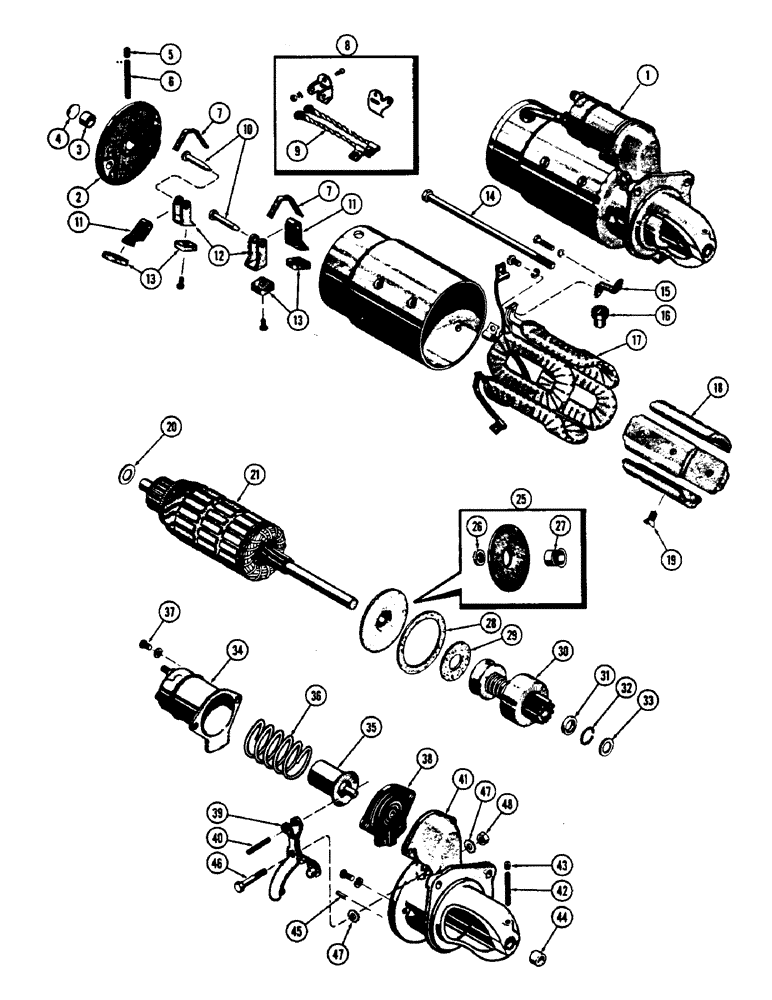

Запчасти Case 430CK (055G) - G44927 STARTER, (188) DIESEL ENGINE

1

G44927

SPARE PART STARTING MOTOR - (Delco-Remy #1107516) (Order A39839) (See Figure 57K), Inlcudes: Ref. 2 - 48

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end, Inlcudes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - expansion

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - oil wick hole

1шт.

6

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

7

A25359

SPRING

SPRING - brush pressure

2шт.

8

A25379

KIT

SUPPORT KIT - brush holder, Inlcudes: Ref. 9

1шт.

9

A25363

ELECTRICAL WIRE

WIRE LEAD - brush ground

2шт.

10

NSS

NOT SOLD SEPARAT

PIN - brush holder

2шт.

11

R15027

HOLDER

HOLDER - brush, insulating

2шт.

12

A40217

HOLDER

HOLDER - brush, ground

2шт.

13

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

14

A25376

X

BOLT - thru

2шт.

15

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

16

NSS

NOT SOLD SEPARAT

GROMMET - connector

1шт.

17

A25319

COIL

COIL - field

1шт.

18

A25391

SHOE

SHOE - pole

4шт.

19

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

8шт.

20

NSS

NOT SOLD SEPARAT

WASHER - brake, comm. end

1шт.

21

A40219

ARMATURE

ARMATURE

1шт.

25

A25549

PLATE

PLATE ASSY. - center bearing, Inlcudes: Ref. 26 - 28

1шт.

26

A25409

SEAL

OIL SEAL - 3/4" I.D. x 1" O.D.

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - center

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - center bearing

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - thrust, center bearing

1шт.

30

A41871

DRIVE

DRIVE - starter (Replaces A25337)

1шт.

31

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

32

R15048

RING

RING - snap, collar

1шт.

33

A25385

WASHER

WASHER - thrust, starter drive

1шт.

34

G44891

SOLENOID

SOLENOID ASSY. - (See Figure 57O), Inlcudes: Ref. 35 and 36

1шт.

35

A40218

PLUNGER

PLUNGER - solenoid

1шт.

36

A40221

SPRING

SPRING - plunger return

1шт.

37

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: solenoid-housing

2шт.

38

A25410

BOOT

COVER - solenoid & drive housing

1шт.

39

A25397

LEVER

LEVER - shift

1шт.

40

A25399

X

PIN - shift, Serial Range: lever-plunger

1шт.

41

A25351

SPARE PART HOUSING - drive, Inlcudes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

43

NSS

NOT SOLD SEPARAT

PLUG - oil wick

1шт.

44

A25309

SPARE PART BUSHING - end, 15/32 x 5/8 x 13/16"

1шт.

45

NSS

NOT SOLD SEPARAT

PIN - drive end locating

1шт.

46

A25401

SPARE PART STUD - pivot, shift lever

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - Shakeproof, pivot stud

2шт.

48

NSS

NOT SOLD SEPARAT

NUT - pivot stud

1шт.
