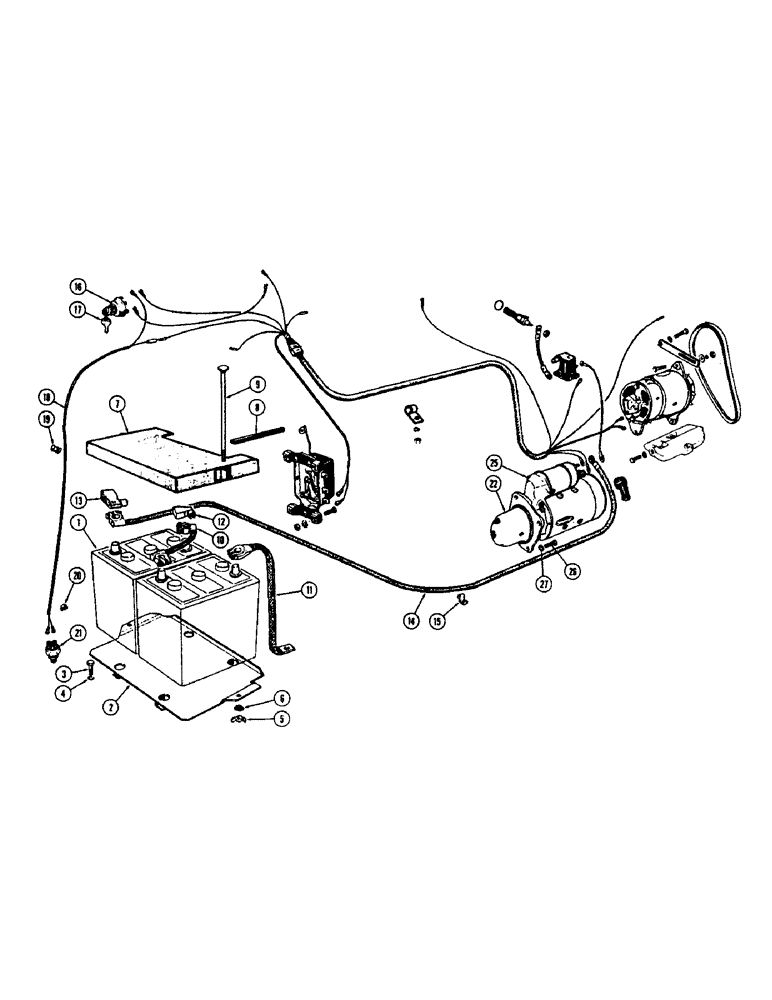

Запчасти Case 430CK (055C) - ELECTRICAL SYSTEM, (188) DIESEL ENGINE

1

L16056

DRY BATTERY

- 6 volt

2шт.

2

G30295

PAN - battery base

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

G49020

NUT

- 5/16" N.C. wing

2шт.

6

G46096

RETAINER

- rubber, cover bolt

2шт.

7

G30296

COVER ASSY

COVER - battery

1шт.

8

G46881

MOULDING - rubber, battery cover

2шт.

9

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - 5/16 x 9" rd. hd. sq. neck

2шт.

10

G44055

CABLE PULLING GRIP

CABLE -, Serial Range: battery-battery

1шт.

11

A36368

STRAP

- ground

1шт.

12

G46880

COVER

- terminal (ER)

1шт.

13

G46879

COVER

- terminal (EL)

2шт.

14

A27987

CABLE

-, Serial Range: battery-starter

1шт.

15

A26696

NO LONGER SERVICED

CLIP - battery cable

1шт.

16

A24510

SWITCH

- starting, w/keys, (Diesel) Inlcudes: Ref. 17

1шт.

17

A24509

KEY

- switch (Set of 2)

1шт.

18

G44066

CABLE

- safety switch

1шт.

19

A27211

CLIP - cable to fuel tank

1шт.

20

G46047

CLIP - cable to battery pan

1шт.

21

A20990

SWITCH

- safety, neutral start

1шт.

22

REF

INSTRUCTION

STARTING MOTOR - (See Figure 57C)

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.
