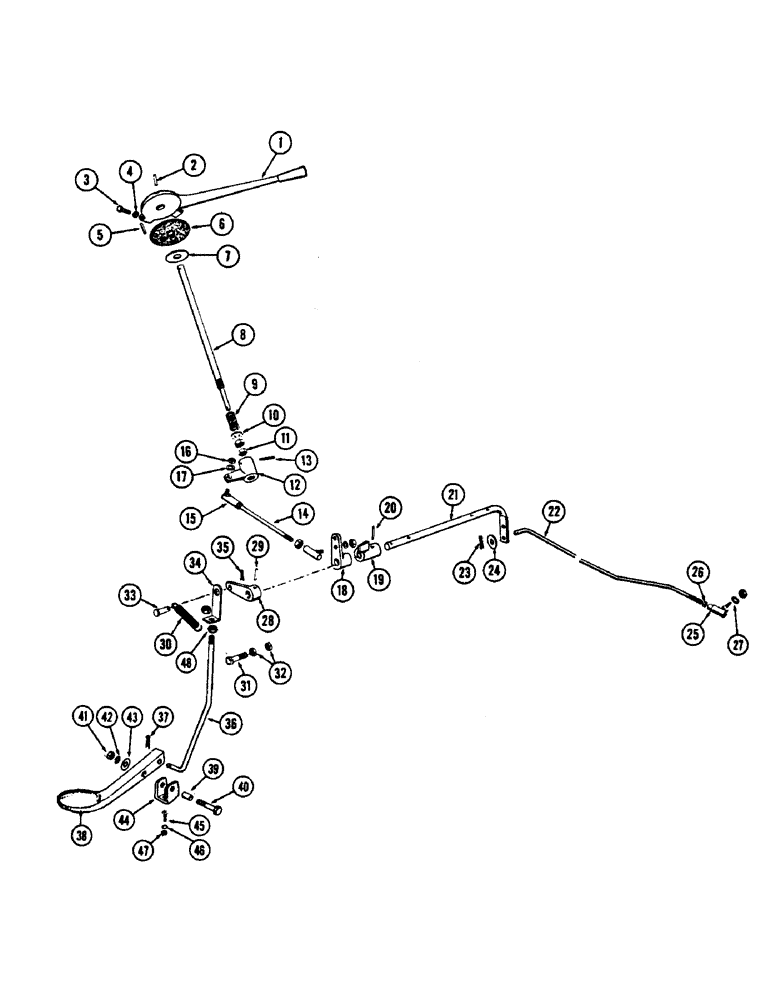

Запчасти Case 430CK (048) - THROTTLE CONTROL LINKAGE, (188) DIESEL ENGINE

1

A36513

LEVER

- hand

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Lever stop 1/4" x 3/4", Slotted

1шт.

6

A11969

GASKET

DISC - friction

1шт.

7

A32838

WASHER

- friction disc

1шт.

8

A36512

SHAFT

- hand lever

1шт.

9

A34113

SPRING

- tension, lever shaft

1шт.

10

195-33

WASHER,1/2"

- plain 1/2"

1шт.

11

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

12

A35644

LEVER - lower, hand lever shaft

1шт.

13

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

14

A35642

ROD

- intermediate

1шт.

15

A10329

BALL JOINT,1/4" - 28 x 1"

- intermediate shaft

2шт.

16

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

A35638

LEVER

- cross shaft

1шт.

19

A35639

LEVER

- override, foot throttle

1шт.

20

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

21

A35636

SHAFT

- cross, throttle lever

1шт.

22

A35635

ROD - cross shaft to pump rod

1шт.

23

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

25

A10329

BALL JOINT,1/4" - 28 x 1"

-, Serial Range: rod-pump

1шт.

26

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

A35640

LEVER - foot throttle to cross shaft

1шт.

29

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

30

B18277

SPRING

- return

1шт.

31

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" x 3" N.F. hex. hd.

1шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

2шт.

33

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link to lever 3/8" x 1.060"

1шт.

34

G16898

LINK - foot, Serial Range: throttle-lever

1шт.

35

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

36

A35641

ROD

- foot throttle

1шт.

37

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

38

G15692

PEDAL

- foot throttle

1шт.

39

G49618

BUSHING

- pedal pivot

1шт.

40

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex. hd.

1шт.

41

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

42

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

43

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

44

G15694

BRACKET

- pedal pivot

1шт.

45

77-512

SCREW

- 5/16" x 3/4" truss hd.

1шт.

46

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.
