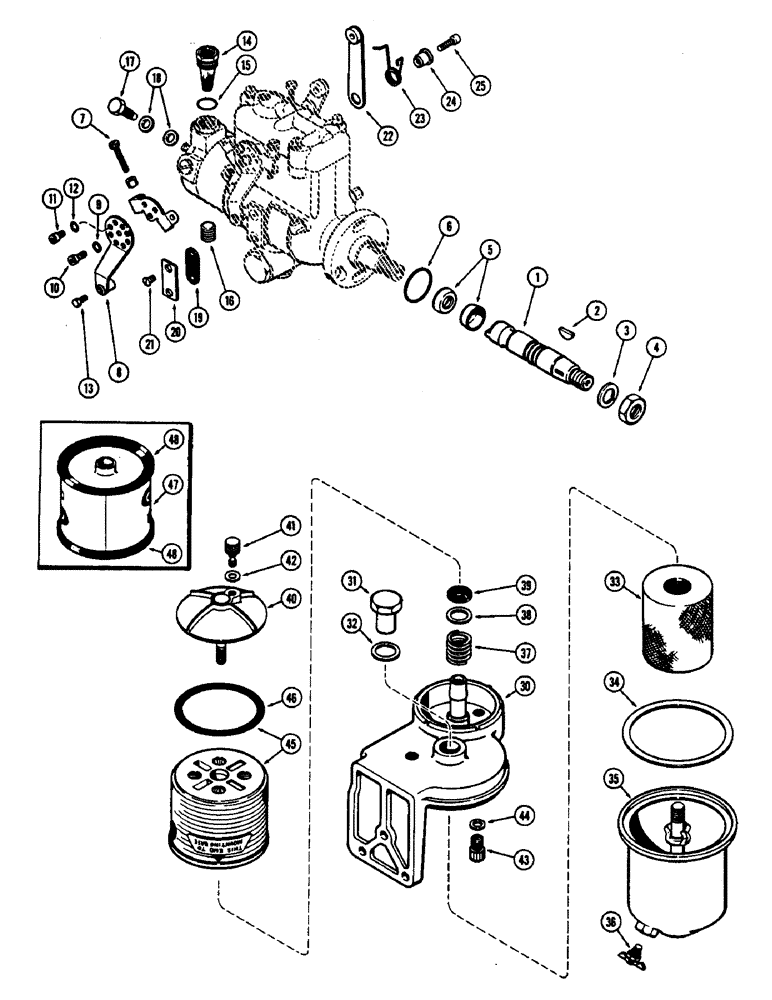

Запчасти Case 430CK (046) - PARTS FOR INJECTION PUMP, (188) DIESEL ENGINE

G37030

PUMP ASSY. - injection

1шт.

1

G47113

SHAFT

- drive

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

3

G49081

WASHER

LOCKWASHER - drive shaft nut

1шт.

4

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex. jam

1шт.

5

R14711

SEAL

- drive shaft

2шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

7

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

8

G45337

ARM

- shut-off

1шт.

9

73630

LOCK WASHER

WASHER - shut-off arm retaining screw

1шт.

10

73670

SCREW

- retaining, shut-off arm

1шт.

11

73646

SCREW

- positioning, shtu-off arm

1шт.

12

493-21017

LOCK WASHER,Int Tooth, #8

LOCKWASHER - positioning screw

1шт.

13

73667

IGNITION SWITCH

- fitting, shut-off arm

1шт.

14

73671

ROPE

CAP AND FILTER

1шт.

15

51200280

SEAL

- filter cap

1шт.

16

73627

X

PLUG - pipe, end plate

1шт.

17

73613

SCREW

- connector, fuel line

4шт.

18

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHESR - connector screw

8шт.

19

73453

GASKET

- timing window cover

1шт.

20

G46330

COVER

- timing window

1шт.

21

NLS

NO LONGER SERVICED

- timing window cover

2шт.

22

G45338

ARM

- throttle

1шт.

23

G48505

SPRING

- throttle arm

1шт.

24

G49621

RETAINER

- spring, throttle arm

1шт.

25

G49079

SET SCREW

SCREW - throttle arm

1шт.

A35735

FILTER

ASSY. - complete, A35735 fuel filter assy, Inlcudes: Ref. 30 - 48

1шт.

30

A35664

HEAD

- fuel filter mounting, A35735 assy

1шт.

31

A21131

NUT

- primary filter body to head, A35735 fuel assy

1шт.

32

A28055

GASKET

- nut to head, A35735 fuel filter assy

1шт.

33

A35863

FILTER, ELEMENT

ELEMENT - primary filter, A35735 fuel assy

1шт.

34

A28056

GASKET

- primary filter body to head, A35735 fuel assy

1шт.

35

A37099

FUEL FILTER

BODY - primary filter, A35735 fuel assy

1шт.

36

217-102

PLUG, DRAIN

DRAIN COCK - primary filter, A35735 fuel assy

1шт.

37

A35669

SPRING

- final filter, A35735 fuel assy

1шт.

38

A35670

WASHER

- final filter, A35735 fuel assy

1шт.

39

A35671

GASKET

- rubber, A35735 fuel filter assy

1шт.

40

A35672

CAP

- final filter, A35735 fuel assy, Inlcudes: Ref. 41 and 42

1шт.

41

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, A35735 fuel filter assy

1шт.

42

NLS

NO LONGER SERVICED

GASKET - bleeder valve, A35735 fuel filter assy

1шт.

43

G49080

PLUG

- drain, final filter, A35735 fuel assy

1шт.

44

G46886

O-RING

GASKET - drain plug, A35735 fuel filter assy

1шт.

45

A37187

FILTER, ELEMENT

FILTER - final, A35735 fuel assy, Inlcudes: Ref. 46

1шт.

46

A37188

GASKET

- fnal filter (See ref. 48), A35735 fuel assy

1шт.

47

A35668

FILTER

- final (Order A37187), A35735 fuel assy, Inlcudes: Ref. 48

1шт.

48

G46895

GASKET

- final filter (See ref. 46), A35735 fuel assy

2шт.
