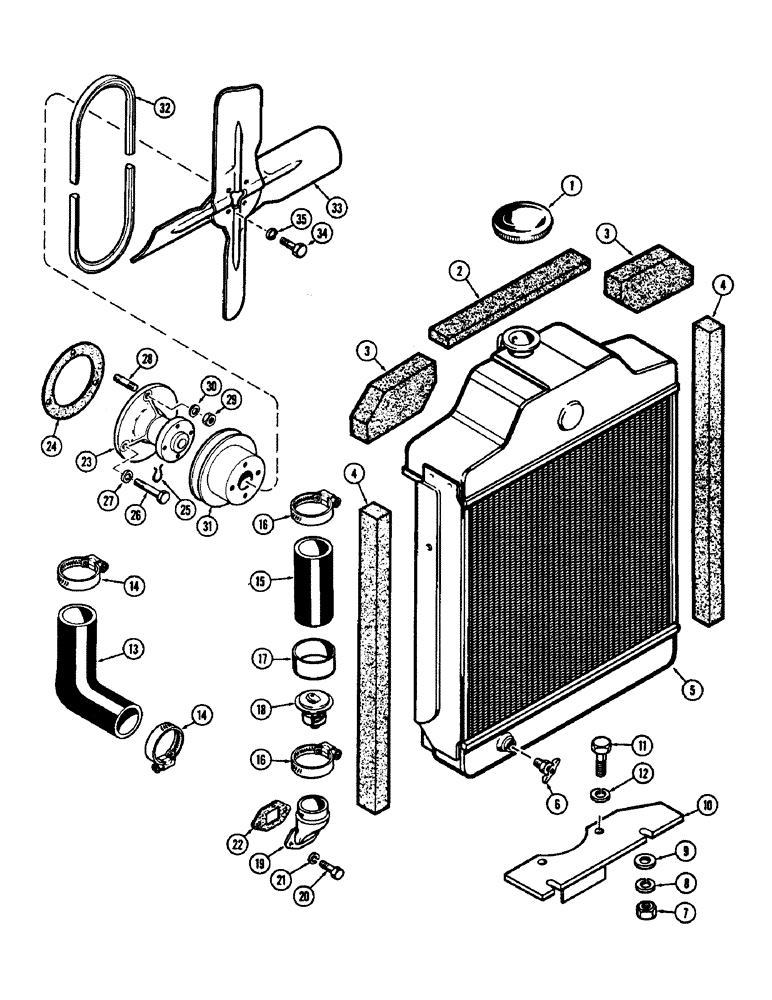

Запчасти Case 430CK (002) - ENGINE COOLING SYSTEM, (148B) SPARK IGNITION ENGINE

1

G45179

CAP

CAP - radiator

1шт.

2

G46280

BAFFLE

BAFFLE - radiator top center

1шт.

3

G46278

BAFFLE

BAFFLE - radiator top R.H. & L.H.

2шт.

4

D31270

INSULATOR

BAFFLE - radiator side

2шт.

5

A35604

RADIATOR

RADIATOR

1шт.

6

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

7

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C. hex.

2шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

9

95-6

WASHER,3/8"

WASHER - plain 3/8"

2шт.

10

A35574

BRACKET

BRACKET - radiator mounting

1шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

12

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

13

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower, Radiator to Pump

1шт.

14

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

15

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper, Head to Radiator

1шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

3шт.

17

G49625

SUPPORT

SPACER - thermostat

1шт.

18

G11065

CASE

THERMOSTAT (177 degrees to 182 degrees F)

1шт.

19

G11087

SPARE PART ELBOW - cylinder head

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

22

A30003

GASKET

GASKET -, Serial Range: elbow-head

1шт.

23

G11956

WATER PUMP

WATER PUMP - complete, Inlcudes: Ref. 24 and 25

1шт.

23

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

23

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

23

A146584

PUMP, WATER

WATER PUMP

1шт.

23

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

23

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Water Pump

1шт.

23

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

23

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

23

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

24

G46875

GASKET

GASKET -, Serial Range: pump-cover

1шт.

25

A30067

RING

RING - retainer

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.C. hex. hd.

1шт.

27

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

28

A29433

STUD

STUD - pump mounting (3/8" x 1")

1шт.

29

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

30

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

31

G11339

PULLEY

PULLEY - drive

1шт.

32

G46238

BELT,0.55" W x 17.78" L

Drive

1шт.

33

G45243

FAN

FAN

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

35

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.
