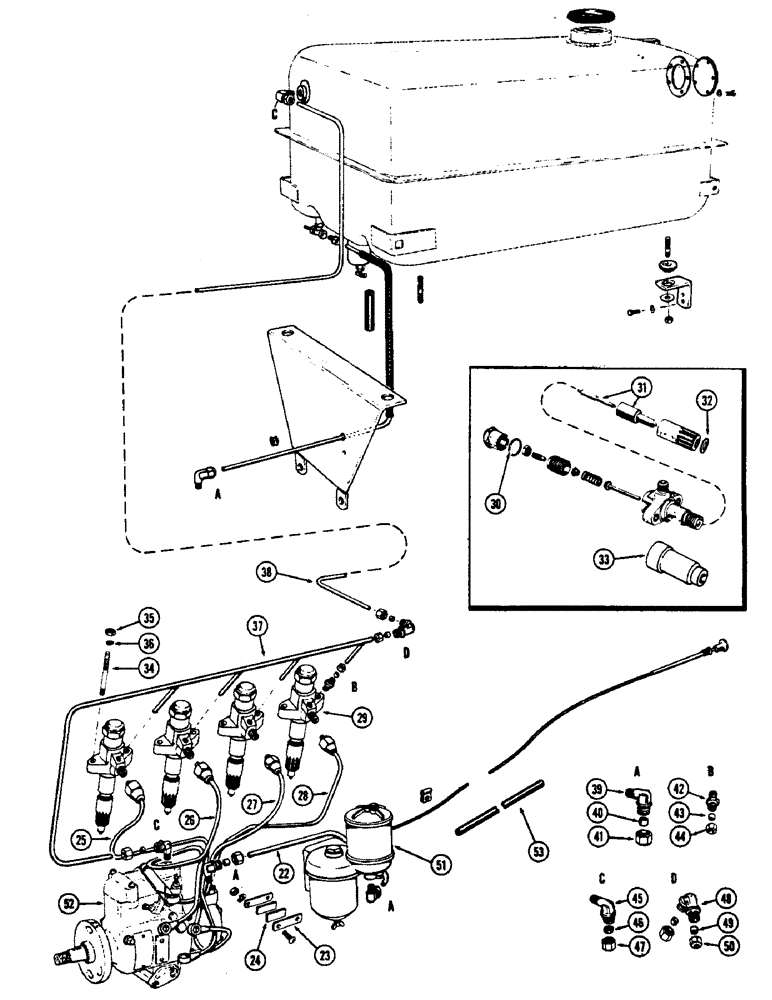

Запчасти Case 430CK (045A) - FUEL SYSTEM, (188) DIESEL ENGINE

22

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

23

A27978

CLAMP

- injection tube

2шт.

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10-24 x 1" rd. hd.

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

129-7

NUT,Hex, #10 - 24

- hex. #10-24

2шт.

24

A27980

CUSHION

- tube clamp

2шт.

25

A35058

TUBE

- pump to #1 injector

1шт.

26

A35059

TUBE

- pump to #2 injector

1шт.

27

A35060

TUBE

- pump to #3 injector

1шт.

28

A35061

TUBE

- pump to #4 injector

1шт.

29

A49056

NOZZLE CAP

INJECTOR - fuel, Inlcudes: Ref. 30 - 32

4шт.

30

G46885

GASKET

- injector cap

1шт.

31

A35085

NOZZLE CAP

NOZZLE - injector

1шт.

32

G49068

GASKET

- seat, Serial Range: injector-liner

1шт.

33

G11724

LINER

-, Serial Range: injector-head

4шт.

34

A29431

STUD

- injector to head, 3/8" N.C. x 1-3/4"

8шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

36

92-6

LOCK WASHER,3/8"

8шт.

37

G45376

TUBE - manifold, injector leak-off

1шт.

38

A35631

TUBE

LINE -, Serial Range: leak-off-tank

1шт.

39

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, 3/8" tube x 1/4" pt., 90 degrees, Inlcudes: Ref. 40 and 41

3шт.

40

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

41

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

42

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off, Includes Ref. 43 and 44 7/16"-24 x 1/8" NPTF

4шт.

43

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

44

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

45

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off tube, 5/16" tube x 1/8" P.T., 90 degrees, Inlcudes: Ref. 46 and 47

2шт.

46

222-103

SLEEVE,5/16" Tube

1шт.

47

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

48

222-133

ELBOW,90 Degree, 9/16"-24

ASSY. - manifold, 5/16" tube, Inlcudes: Ref. 49 and 50

1шт.

49

222-103

SLEEVE,5/16" Tube

2шт.

50

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

2шт.

51

A35735

FILTER

ASSY. - (See Figure 46)

1шт.

52

G37030

PUMP - fuel injection (See Figure 46)

1шт.

53

A27164

LOOM - shut-off wire

1шт.
