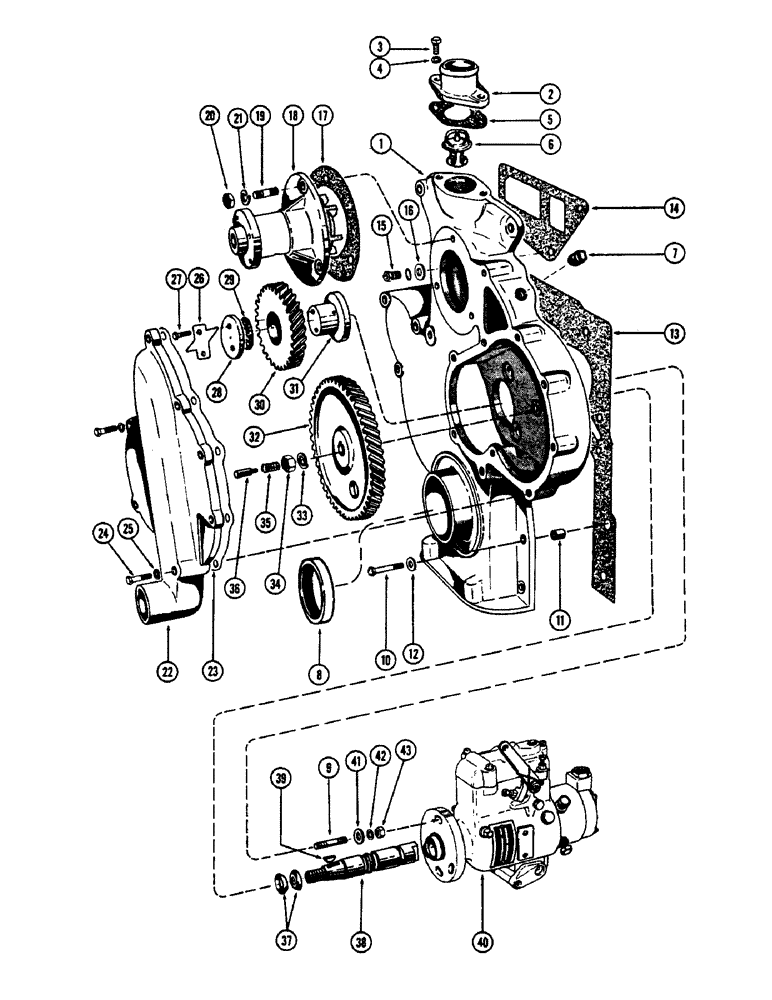

Запчасти Case 430CK (042) - FUEL INJECTION PUMP DRIVE, (188) DIESEL ENGINE

1

A36823

COVER

- injection pump drive, Inlcudes: Ref. 2 - 9

1шт.

2

G2144

FITTING

CONNECTION - water outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

G46907

GASKET

- water outlet

1шт.

6

A57641

THERMOSTAT

- (180 degrees) (Replaces G45788)

1шт.

7

221-1843

PLUG

- pipe, 3/8" sckt. hd.

1шт.

8

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

OIL SEAL - crankshaft front (Replaces A36609)

1шт.

9

G11204

STUD

- pump mtg., 3/8" N.C. x 1-7/16"

3шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

3шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

11

A29442

RING

- dowel, Serial Range: cover-block

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

G46857

GASKET

-, Serial Range: cover-block

1шт.

14

G46858

GASKET

-, Serial Range: cover-head

1шт.

15

G49083

BOLT

- 1/2 x 3/4" N.C. hex. drilled, Serial Range: cover-head

1шт.

16

A30058

WASHER

- drilled bolt

1шт.

17

G46875

GASKET

- water, Serial Range: pump-cover

1шт.

18

A39074

PUMP

WATER PUMP ASSY. - (See Figure 26) (Replaces A37758)

1шт.

19

A29433

STUD

- pump mtg., 3/8" N.C. x 1"

3шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

21

92-6

LOCK WASHER,3/8"

3шт.

22

G2077

COVER ASSY

COVER - drive gear

1шт.

23

G46859

GASKET

- gear cover

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

25

92-6

LOCK WASHER,3/8"

9шт.

26

G11746

PLATE

- lock, idler gear

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

G11732

PLATE

- thrust, idler gear

1шт.

29

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

29

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

29

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

29

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

30

G11852

GEAR

ASSY. - idler (Incl. bushing)

1шт.

31

G11726

HUB

- idler gear

1шт.

32

G2076

GEAR

- drive, injection pump

1шт.

33

G49081

WASHER

- lock, pump drive shaft

1шт.

34

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex., jam

1шт.

35

G48502

SPRING

- thrust, pump drive shaft

1шт.

36

G47128

PLUNGER

- thrust spring

1шт.

37

R14711

SEAL

- drive shaft

2шт.

38

G47113

SHAFT

- pump drive

1шт.

39

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

40

G37030

PUMP - injection (See Figure 46)

1шт.

41

A30043

WASHER

- pump mtg. stud

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.

43

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.
