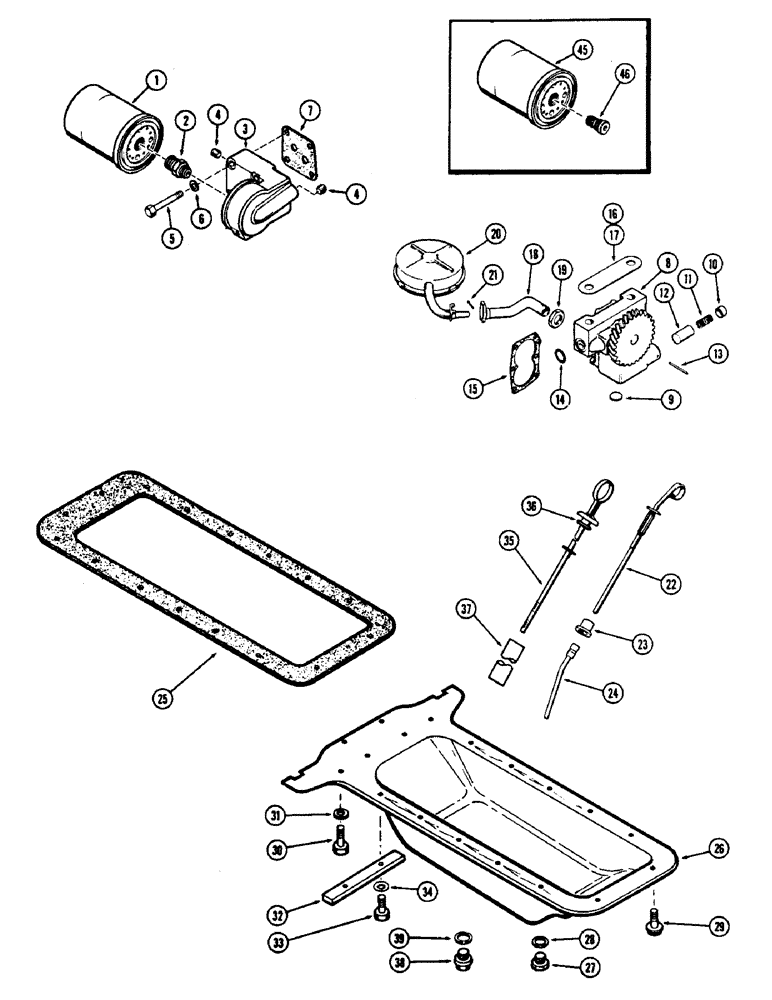

Запчасти Case 430CK (038) - OIL FILTER, OIL PUMP AND OIL PAN, (188) DIESEL ENGINE

1

G45210

FILTER, ELEMENT

FILTER - oil

1шт.

2

A35557

ADAPTER

-, Serial Range: filter-bracket

1шт.

3

A36288

BRACKET

- filter mounting (Replaces A35556)

1шт.

4

221-841

PLUG

- pipe, 1/4" hex. sckt. hd.

4шт.

5

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex.

4шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G46854

GASKET

-, Serial Range: bracket-block

1шт.

8

G37070

X

PUMP ASSY. - engine oil, Inlcudes: Ref. 9 - 15

1шт.

9

41-102

PLUG,Exp, 1/2"

- pump body

2шт.

10

A29260

RETAINER

- relief spring

1шт.

11

G48500

SPRING

- relief valve

1шт.

12

A155144

VALVE, PRESSURE RELI

- relief

1шт.

13

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN - roll, 1/8 x 1-1/4"

1шт.

14

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

15

G46852

GASKET

- pump cover

1шт.

16

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

17

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

18

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

19

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

20

A30126

FLOAT ASSY. - (Includes screen)

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

G37037

DIPSTICK

- oil level (Used prior to eng. ser. no. 2117952), Inlcudes: Ref. 23

1шт.

23

G46892

OIL SEAL

- rubber

1шт.

24

G45139

BRACKET

SUPPORT - dipstick (Used w/G37037)

1шт.

25

A40712

KIT

GASKET - oil pan (See Figure 28)

1шт.

26

A36720

X

OIL PAN - engine, Inlcudes: Ref. 27 and 28

1шт.

27

A14280

PLUG

- drain, 3/4" N.F. thrd.

1шт.

28

A27927

OIL PAN GASKET SET

- drain plug (Copper)

1шт.

29

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex. sems

16шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

31

195-400

WASHER

- sealing, 5/16"

2шт.

32

G11372

STRIP

- reinforcing

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

34

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

35

A37148

DIPSTICK

- oil lever (1st used eng. ser. no. 2117952), Inlcudes: Ref. 36

1шт.

36

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal

2шт.

37

A37149

TUBE

SUPPORT - dipstick (Used w/A37148)

1шт.

38

G45786

PLUG

- drain, 3/8" P.T., Inlcudes: Ref. 39

1шт.

39

G46903

GASKET

- drain plug (Fiber)

1шт.

45

A37189

FILTER, ELEMENT

FILTER - engine oil, flange mounted

1шт.

46

A153552

ADAPTER

- filter to block, flange mounted oil

1шт.
