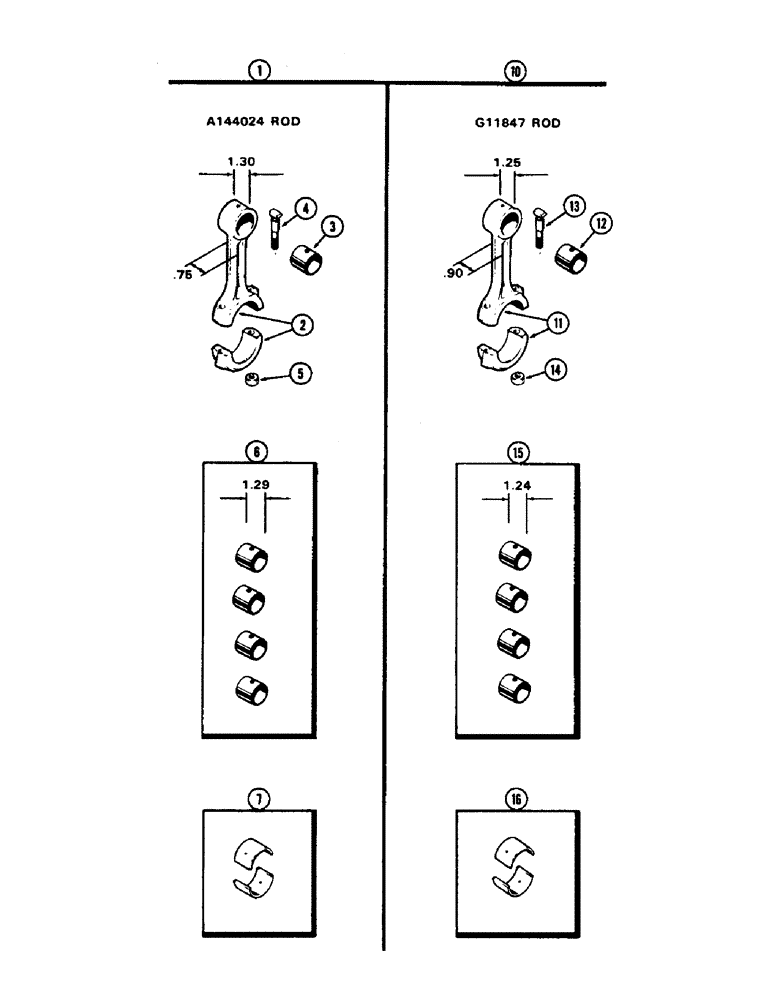

Запчасти Case 430CK (037A) - CONNECTING RODS, (188) DIESEL ENGINE

1

A144024

ROD

ASSY. - connecting (Replaces G11847), Inlcudes: Ref. 2 - 5

4шт.

2

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.75" "I" section width and 1.30" pin boss width)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 6) (1-7/32 x 15/16 x 1.29" width)

1шт.

4

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

5

A51904

NUT

NUT - conn. rod blt

2шт.

6

A44083

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

7

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2)

4шт.

7

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2)

4шт.

7

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2)

4шт.

7

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2)

4шт.

7

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2)

4шт.

10

G11847

ROD

ASSY. - connecting (Order A144024), Inlcudes: Ref. 11 - 14

4шт.

11

NSS

NOT SOLD SEPARAT

ROD & CAP - (.090" "I" section width and 1.25" pin boss width)

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 15) (1-7/32 x 1-5/16 x 1.24" width)

1шт.

13

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

14

A51904

NUT

NUT - conn. rod bolt (Replaces A39286 & G49060)

2шт.

15

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

16

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2)

4шт.

16

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2)

4шт.

16

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2)

4шт.

16

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2)

4шт.

16

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2)

4шт.
