(036) - PISTONS, (188) DIESEL ENGINE, FOR NARROW FLANGED SLEEVES

Запчасти Case 430CK (036) - PISTONS, (188) DIESEL ENGINE, FOR NARROW FLANGED SLEEVES

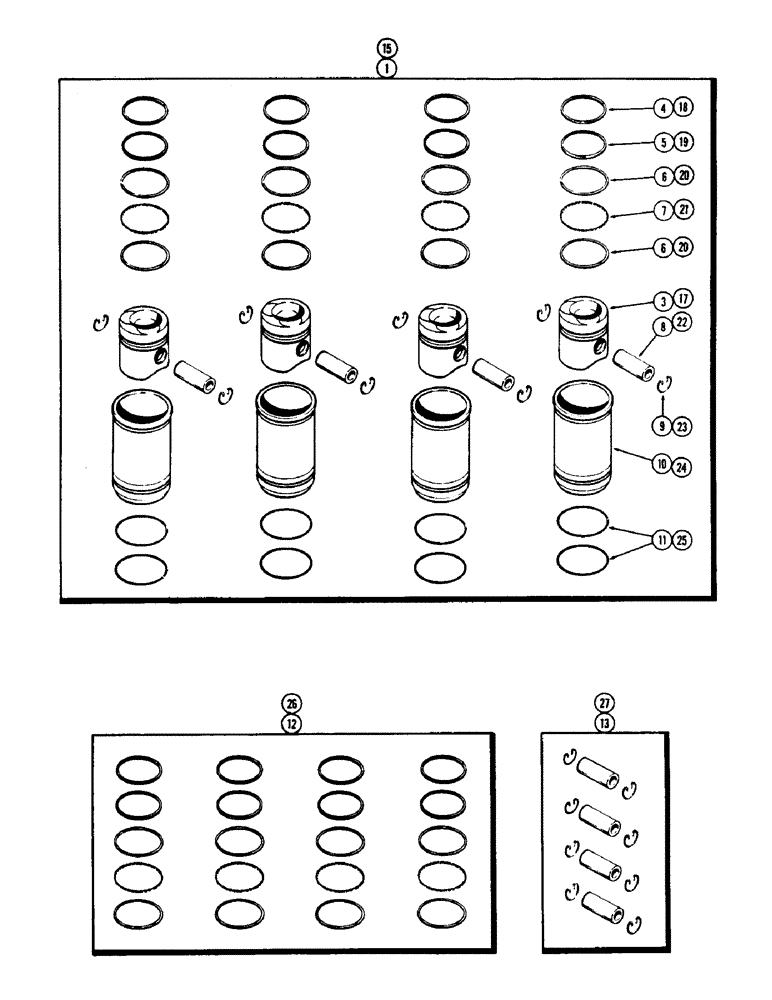

Схема запчастей Case 430CK - (036) - PISTONS, (188) DIESEL ENGINE, FOR NARROW FLANGED SLEEVES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A43014

KIT

PISTON ASSY. - (Set of 4) (Replaces A35772), Inlcudes: Ref. 3 - 11

1шт.

A43010

PISTON ASSY. - (Set of 1) (Replaces A36391), Inlcudes: Ref. 3 - 11

4шт.

3

A38424

PISTON

- (Replaces G2137)

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control ring (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - retaining (See ref. 12)

2шт.

10

A43009

SLEEVE CYLINDER

SLEEVE - cylinder (Replaces G2110)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - 4 pistons

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings)

1шт.

15

A42813

PISTON

ASSY. - (Set of 4) (Replaces A37764) (It is recommended valve grind gasket kit A43193 also be ordered), for wide flanged sleeves17 - 25

1шт.

A42812

SLEEVE

PISTON ASSY. - (Set of 1) (Replaces A37769) (It is recommended valve grind gasket kit A43193 also be ordered), for wide flanged sleeves, Inlcudes: Ref. 17 - 25

4шт.

17

A38424

PISTON

- (Replaces G2137), for wide flanged sleeves

1шт.

18

G4819

RING

- compression, 1st groove (See ref. 26), for wide flanged sleeves

1шт.

19

G4817

RING

- compression, 2nd groove (See ref. 26), for wide flanged sleeves

1шт.

20

G47155

RAIL

RING - oil control, 3rd groove (See ref. 26), for wide flanged sleeves

2шт.

21

G47174

SPRING

SPACER - oil control ring (See ref. 26), for wide flanged sleeves

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 27), for wide flanged sleeves

1шт.

23

G46702

RING, LOCKING

RING - piston pin retaining (See ref. 27), for wide flanged sleeves

2шт.

24

A39006

SLEEVE

- piston (Replaces A38638 & A37763), for wide flanged

1шт.

25

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve sealing, for wide flanged

2шт.

26

G37075

RING

KIT - piston re-ring (Set of 4), for wide flanged sleeves

1шт.

27

A35771

KIT

PIN SET - (Set of 4 pins & 8 rings), for wide flanged sleeves

1шт.
