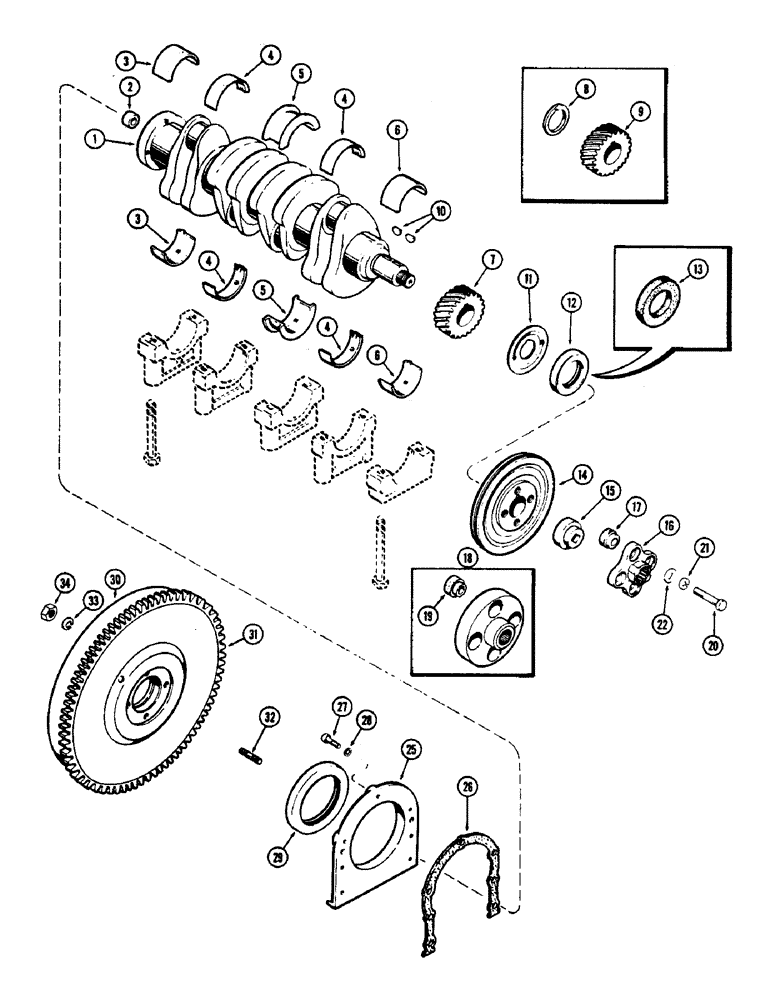

Запчасти Case 430CK (034) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE

1

A39150

CRANKSHAFT

ASSY. - engine (Replaces G11889), Inlcudes: Ref. 2

1шт.

2

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot

1шт.

3

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER SET - rear bearing (Std. set of 2)

1шт.

3

A36496

LINING

LINER SET - rear bearing (.002" undersize set of 2)

1шт.

3

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER SET - rear bearing (.010" undersize set of 2)

1шт.

3

A36498

KIT

LINER SET - rear bearing (.020" undersize set of 2)

1шт.

3

A36499

BEARING LINER

LINER SET - rear bearing (.030" undersize set of 2)

1шт.

4

A36485

LINING

LINER SET - intermediate bearing (Std. of 2)

2шт.

4

A36486

LINING

LINER SET - intermediate bearing (.002" undersize set of 2)

2шт.

4

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER SET - intermediate bearing (.010" undersize set of 2)

2шт.

4

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER SET - intermediate bearing (.020" undersize set of 2)

2шт.

4

A36489

LINING

LINER SET - intermediate bearing (.030" undersize set of 2)

2шт.

5

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER SET - center bearing (Std. set of 2)

1шт.

5

A36491

LINING

LINER SET - center bearing (.002" undersize set of 2)

1шт.

5

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - center bearing (.010" undersize set of 2)

1шт.

5

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - center bearing (.020" undersize set of 2)

1шт.

5

A36494

LINING

LINER SET - center bearing (.030" undersize set of 2)

1шт.

6

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER SET - front bearing (Std. set of 2)

1шт.

6

A36481

LINING

LINER SET - front bearing (.002" undersize set of 2)

1шт.

6

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER SET - front bearing (.010" undersize set of 2)

1шт.

6

A36483

LINING

LINER SET - front bearing (.020" undersize set of 2)

1шт.

6

A36484

LINING

LINER SET - front bearing (.030" undersize set of 2)

1шт.

7

A39288

GEAR

- crankshaft (1-5/32" wide) (Replaces A29263 & A29264)

1шт.

8

A29294

BUSHING

SPACER - gear (3/32" wide) (Used w/A29263 gear)

1шт.

9

A29263

GEAR

- crankshaft (1-1/16" wide) (Order A39288)

1шт.

10

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

11

A29259

SLINGER

- oil

1шт.

12

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (2 x 3 x 1/2") (Replaces A36609)

1шт.

13

A30028

DUST SEAL - pulley (Order A39110, this part not needed with A39110 seal)

1шт.

14

A50962

PULLEY

- fan & alternator drive belt (Replaces G11342)

1шт.

15

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

16

A51885

COUPLING, BREAK AWAY

COUPLING ASSY. - flexible, pump drive (Replaces A35558), Inlcudes: Ref. 17

1шт.

17

A45216

BUSHING

- flex

4шт.

18

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flexible, pump drive (Order A51885)

1шт.

19

G36905

BLOCK

BUSHING - flex

4шт.

20

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

21

92-7

LOCK WASHER,7/16"

4шт.

22

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 16 ga.

4шт.

25

A38390

RETAINER

- rear oil seal (Replaces G2017)

1шт.

26

A39188

GASKET

- retainer (Replaces G46802)

1шт.

27

113-25

X

BOLT - 1/4 x 3/4" N.C. hex.

4шт.

27

113-26

BOLT

- 1/4 x 1" N.C. hex.

3шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

29

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, crankshaft rear (4 x 5 x 1/2") (Replaces A39111)

1шт.

30

G11859

FLYWHEEL

ASSY. - engine

1шт.

31

G11710

GEAR

- ring (135 teeth)

1шт.

32

A29434

STUD

- flywheel to crankshaft, 7/16" N.F. x 1-3/4"

4шт.

33

92-7

LOCK WASHER,7/16"

4шт.

34

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.
