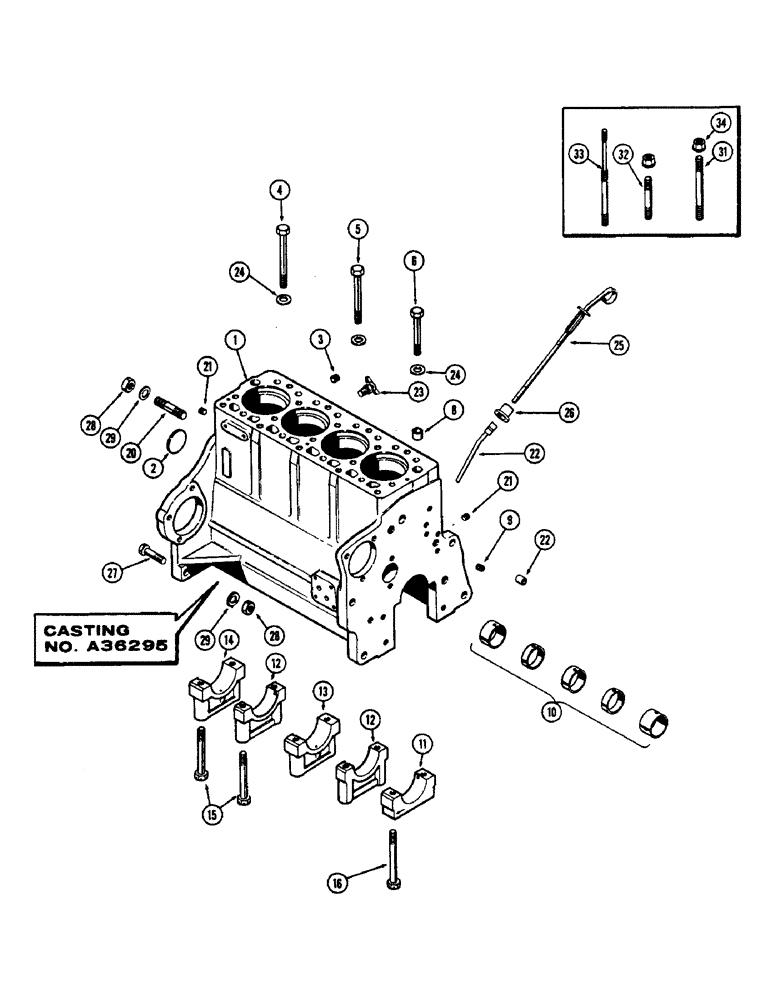

Запчасти Case 430CK (033E) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, CASTING NUMBER A36295, WITH NARROW FLANGED SLEEVES

A36315

BLOCK ASSY. - short (Casting no. A36295) (Order A40592 from Figure 32 or 33C), Inlcudes: Ref. 1 - 34

1шт.

1

A36309

BLOCK ASSY. - stripped (Casting no. A36295) (Order A40590 from Figure 33C), Inlcudes: Ref. 2 - 16

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" dia. (Replaces A30033)

1шт.

3

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater hole, 3/8" P.T.

1шт.

4

A35372

BOLT (SPREADER)

BOLT - head, 1/2 x 6" N.C. hex. (See note A)

2шт.

5

A35371

BOLT

- head, 1/2 x 5-5/8" N.C. hex. (See note A)

11шт.

6

A35370

BOLT

BOLT - head, 1/2 x 4" N.C. hex. (See note A)

4шт.

8

G49608

RING

DOWEL -, Serial Range: head-block

2шт.

9

G49070

PLUG

- drilled, oil gallery front (1/4" P.T.)

1шт.

10

A42746

CAM

BUSHING SET - camshaft (Replaces A41232)

1шт.

11

A51054

CAP

- front brg., crankshaft (Replaces G2126)

1шт.

12

A51055

CAP

- intermediate brg., crankshaft (Replaces G2128)

2шт.

13

A51056

CAP

- center brg., crankshaft (Replaces G2127)

1шт.

14

A51057

CAP

- rear brg., crankshaft (Replaces G2129)

1шт.

15

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- brg. cap, 1/2 x 4-1/2" N.C. hex. special (Replaces G49078)

8шт.

16

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- frt. brg. cap, 1/2 x 5-1/8" N.C. hex. special (Replaces G49077)

2шт.

20

A29333

STUD

- eng. to torque tube, 5/8" N.F. x 3"

2шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery, Incl Ref. 22 and 23 Hex Soc, 1/4"-18 NPTF

2шт.

22

G45139

BRACKET

SUPPORT - dipstick

1шт.

23

217-103

COCK, DRAIN

DRAIN COCK - cyl. block, 1/4" P.T.

1шт.

24

A29288

WASHER

- head bolt

17шт.

25

G37037

DIPSTICK

- oil level, Inlcudes: Ref. 26

1шт.

26

G46892

OIL SEAL

- rubber

1шт.

27

A30099

X

BOLT - eng. to torque tube, 5/8 x 3-1/2" N.F. hex.

2шт.

28

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

A36902

STUD

- head, 1/2" N.C. x 5-5/8"

11шт.

31

A36905

STUD

- head, 1/2" N.C. x 6-1/8"

2шт.

32

A36904

STUD

- head, 1/2" N.C. x 4"

4шт.

33

A36903

STUD

- head & cover

2шт.

34

A37030

FLANGE NUT

- head stud, 1/2" N.C. hex. flanged

19шт.
