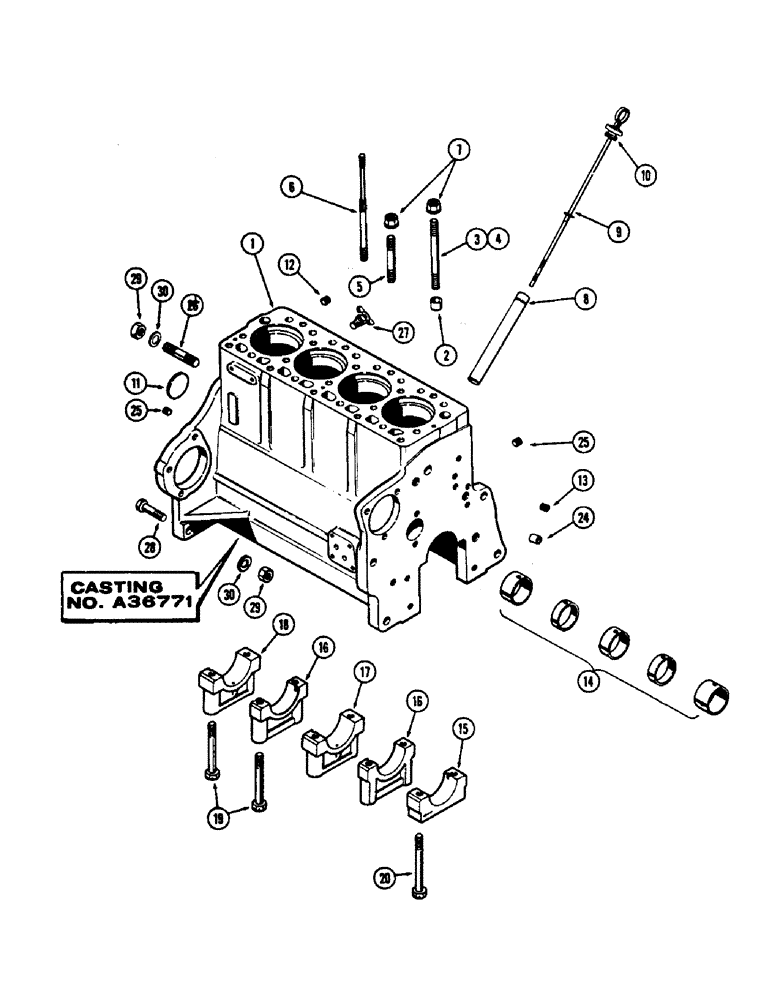

Запчасти Case 430CK (033C) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, CASTING NUMBER A36771, WITH NARROW FLANGED SLEEVES

A40592

BLOCK ASSY. - short (Casting no. A36771) (Incl. stripped block, crankshaft & brgs. camshaft & gear, pistons & sleeves, conn. rods & oil pump), Inlcudes: Ref. 1 - 30

1шт.

1

A40590

BLOCK ASSY. - stripped (Casting no. A36771), Inlcudes: Ref. 2 - 20

1шт.

2

G49608

RING

DOWEL -, Serial Range: head-block

2шт.

3

A36902

STUD

- head to block, 1/2" N.C. x 5-5/8"

11шт.

4

A36905

STUD

- head to block, 1/2" N.C. x 6"

2шт.

5

A36904

STUD

- head to block, 1/2" N.C. x 4"

4шт.

6

A36903

STUD

-, Serial Range: head-cover

2шт.

7

A37030

FLANGE NUT

- head stud, 1/2" N.C. hex. flanged

19шт.

8

A37149

TUBE

- dipstick

1шт.

9

A37148

DIPSTICK

- oil level

1шт.

10

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

2шт.

11

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" dia. (Replaces A30033)

1шт.

12

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater hole, 3/8" P.T.

1шт.

13

G49070

PLUG

- drilled, oil gallery front

1шт.

14

A42746

CAM

BUSHING SET - camshaft (Replaces A41232)

1шт.

15

A51054

CAP

- front brg., crankshaft (Replaces G2126)

1шт.

16

A51055

CAP

- intermediate brg., crankshaft (Replaces G2128)

2шт.

17

A51056

CAP

- center brg., crankshaft (Replaces G2127)

1шт.

18

A51057

CAP

- rear brg., crankshaft (Replaces G2129)

1шт.

19

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- brg. cap, 1/2 x 4-1/2" N.C. hex. special (Replaces G49078)

8шт.

20

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- front brg. cap, 1/2 x 5-1/8" N.C. hex. spec. (Replaces G49077)

2шт.

24

A29442

RING

- dowel, timing gear cover

2шт.

25

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

26

A29333

STUD

- eng. to torque tube, 5/8" N.F. x 3"

2шт.

27

217-103

COCK, DRAIN

DRAIN COCK - cylinder block, 1/4" P.T.

1шт.

28

A30099

X

BOLT - eng. to torque tube, 5/8 x 3" N.F. hex.

2шт.

29

25-1110

NUT,5/8"-18, G5

- 1/2" N.F. hex.

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
