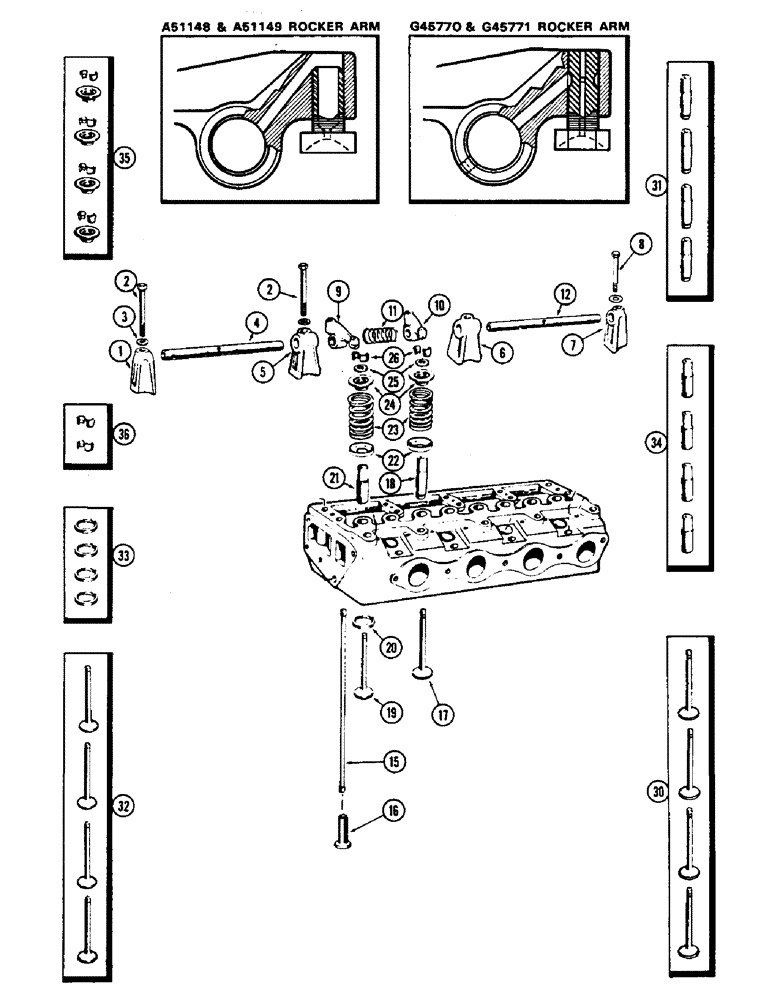

Запчасти Case 430CK (031C) - VALVE MECHANISM, (188) DIESEL ENGINE
№
Артикул
Название
Примечание
Количество
1
G2100
BRACKET
- front, rocker arm shaft
1шт.
2
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" N.C. hex.
4шт.
3
A300658
WASHER - bracket bolt
5шт.
4
G11743
SHAFT
- front, rocker arm
1шт.
5
G2101
BRACKET
- center, rocker arm shaft
1шт.
6
A51084
BRACKET
- intermediate, rocker arm shaft (Replaces A51084)
2шт.
7
A36615
BRACKET
- rear, rocker arm shaft
1шт.
8
G49067
BOLT
- drilled, rear bracket
1шт.
9
A51148
ARM
ASSY. - rocker, R.H. (w/adjusting screw) (Replaces G45770) (See inset) (See note)
4шт.
9
G45770
ARM
ASSY. - rocker, R.H. (Order A51148) (See inset) (See note)
4шт.
10
A51149
ARM
ASSY. - rocker, L.H. (w/adjusting screw) (Replaces G45771) (See inset) (See note)
4шт.
10
G45771
ARM
ASSY. - rocker, L.H. (Order A51149) (See inset) (See note)
4шт.
11
G48501
SPRING
- rocker arm shaft
4шт.
12
G11747
X
SHAFT - rear, rocker shaft
1шт.
15
G47079
ROD
- push
8шт.
16
G47077
TAPPET
LIFTER - push rod
8шт.
17
NSS
NOT SOLD SEPARAT
VALVE - intake (See ref. 30)
4шт.
18
NSS
NOT SOLD SEPARAT
GUIDE - intake valve (See ref. 31)
4шт.
19
NSS
NOT SOLD SEPARAT
VALVE - exhaust (See ref. 32)
4шт.
20
NSS
NOT SOLD SEPARAT
INSERT - valve seat (See ref. 33)
4шт.
21
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve (See ref. 34)
4шт.
22
G49065
SEAT
- valve spring
8шт.
23
A30025
SPRING
- valve
8шт.
24
NSS
NOT SOLD SEPARAT
RETAINER - valve spring (See ref. 35)
8шт.
25
G46851
SEAL
- rubber, valve stem
8шт.
26
NSS
NOT SOLD SEPARAT
LOCK - retainer, valve spring (See ref. 36)
16шт.
30
G11947
VALVE
S - intake (Set of 4)
1шт.
31
G11945
GUIDE
S - intake valve stem (Set of 4)
1шт.
32
G11948
KIT
VALVES - exhaust (Set of 4)
1шт.
33
A43048
KIT
INSERTS - valve seat (Set of 4) (Replaces G11986)
1шт.
34
G11946
GUIDE
S - exhaust valve stem (Set of 4)
1шт.
35
G11927
RETAINER
- valve spring (Set of 4 w/locks)
2шт.
36
G11929
LOCK
- valve spring retainer (Set of 4)
4шт.
Выбрано товаров: 33
