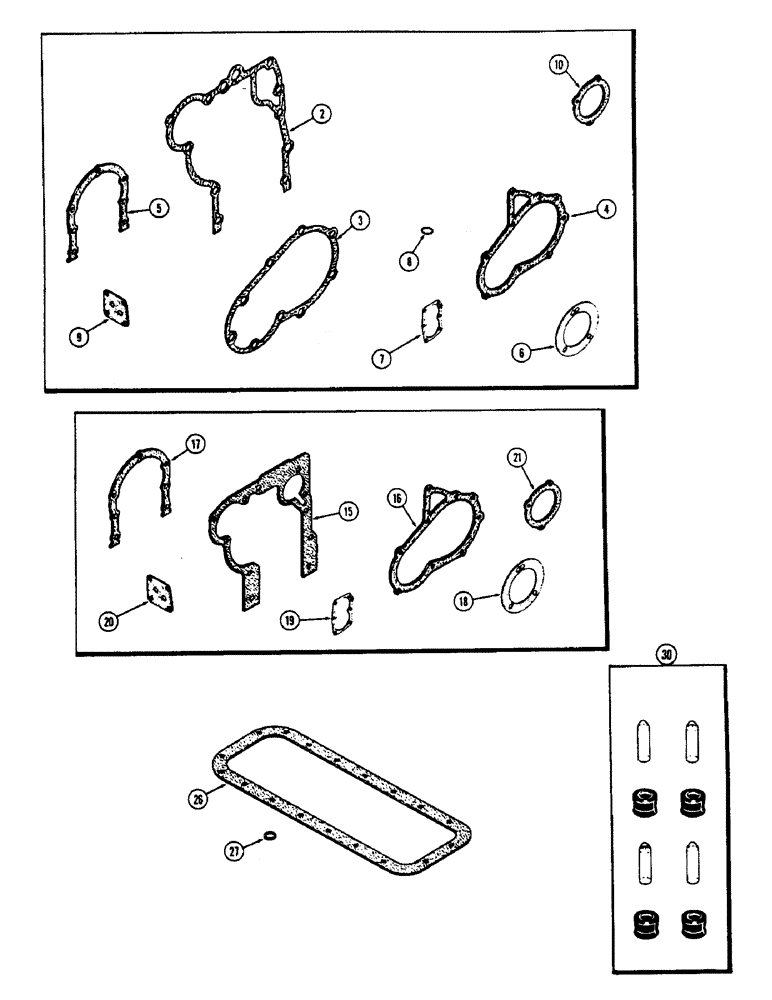

Запчасти Case 430CK (028) - CYLINDER BLOCK GASKET KIT, (188) DIESEL ENGINE

A43198

GASKET

KIT - cylinder block, Inlcudes: Ref. 2 - 10

1шт.

2

A51529

GASKET

- timing gear cover

1шт.

3

A39925

GASKET

- inj. pump drive cover (Not used)

1шт.

4

G46859

GASKET

- inj. pmp drive cover

1шт.

5

A39188

GASKET

- rear oil seal retainer

1шт.

6

A38083

GASKET

- water pump

1шт.

7

G46852

GASKET

- oil pump cover

1шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body to cover (Not used)

1шт.

9

G46854

GASKET

- oil filter mtg. brkt.

1шт.

10

A30042

GASKET

- power steering pump

1шт.

A41426

KIT

GASKET KIT - cylinder block (Replaces G11950) (Order A43198), Inlcudes: Ref. 15 - 21

1шт.

15

A38228

GASKET

- timing gear cover (Replaces G46857)

1шт.

16

G46859

GASKET

- inj. pump drive cover

1шт.

17

A39188

GASKET

- rear oil seal retainer (Replaces G46802)

1шт.

18

A38083

GASKET

- water pump (Replaces G46875)

1шт.

19

G46852

GASKET

- oil pump cover

1шт.

20

G46854

GASKET

- oil filter mtg. brkt.

1шт.

21

A30042

GASKET

- power steering pump

1шт.

A44758

GASKET

KIT - oil pan (Replaces A40712), Inlcudes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

27

A58608

GASKET

- drain plug, 3/4 x 1 x 1/16" nylon, oil pan

1шт.

27

A34827

GASKET

- drain plug (copper) (Not used), oil pan kit

1шт.

30

M20611

SEAL KIT

- seal, valve stem (Set of 4 seals & installation sleeve), oil pan gasket

1шт.
