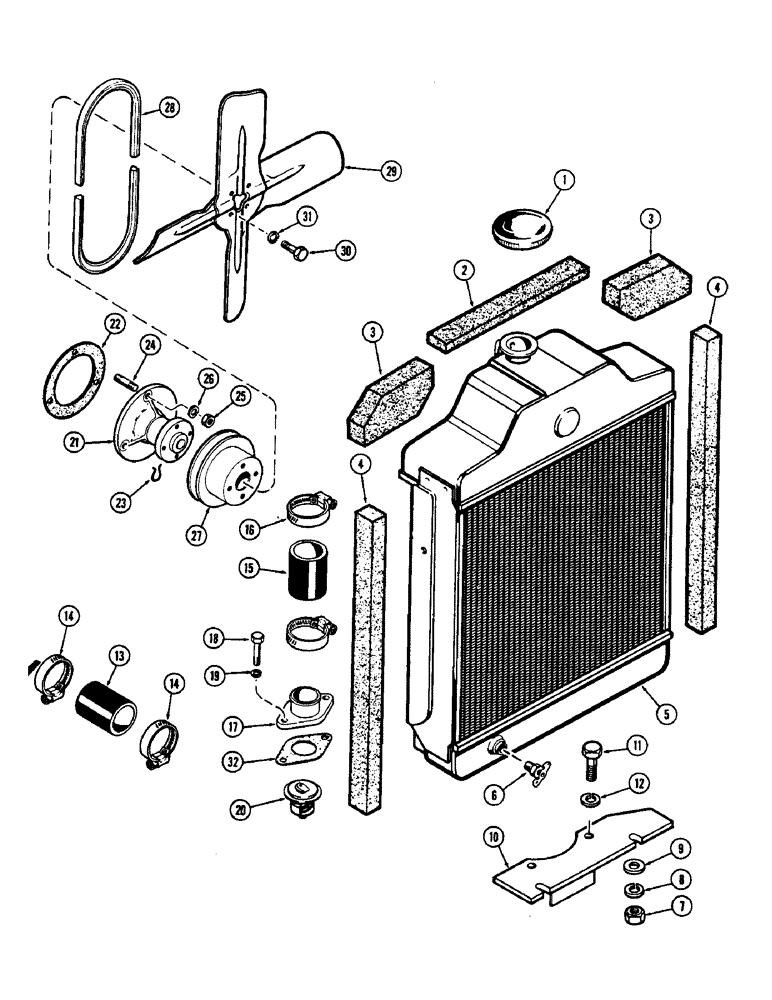

Запчасти Case 430CK (026) - ENGINE COOLING SYSTEM, (188) DIESEL ENGINE

1

G45179

CAP

- radiator

1шт.

2

G46280

BAFFLE

- radiator top center

1шт.

3

G46278

BAFFLE

R - radiator side top

2шт.

4

D31270

INSULATOR

BAFFLE - side

2шт.

5

A35604

RADIATOR

1шт.

6

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Radiator stud)

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

10

A35574

BRACKET

- radiator mounting

1шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

14

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

15

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

17

G2144

FITTING

CONNECTION - water otlet

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

A57641

THERMOSTAT

- (180 degrees) (Replaces G45788)

1шт.

21

A39074

PUMP

WATER PUMP ASSY. - (Replaces G11939 & A37758), Inlcudes: Ref. 22 and 23

1шт.

22

G46875

GASKET

-, Serial Range: pump-cover

1шт.

23

A30067

RING

- retainer

1шт.

24

A29433

STUD

- pump mtg., 3/8" N.C. x 1"

3шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

27

G11339

PULLEY

- drive

1шт.

28

G46238

BELT,0.55" W x 17.78" L

Drive 0.55" W x 17.78" L

1шт.

29

G45243

FAN

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

G46907

GASKET

- water connection

1шт.
