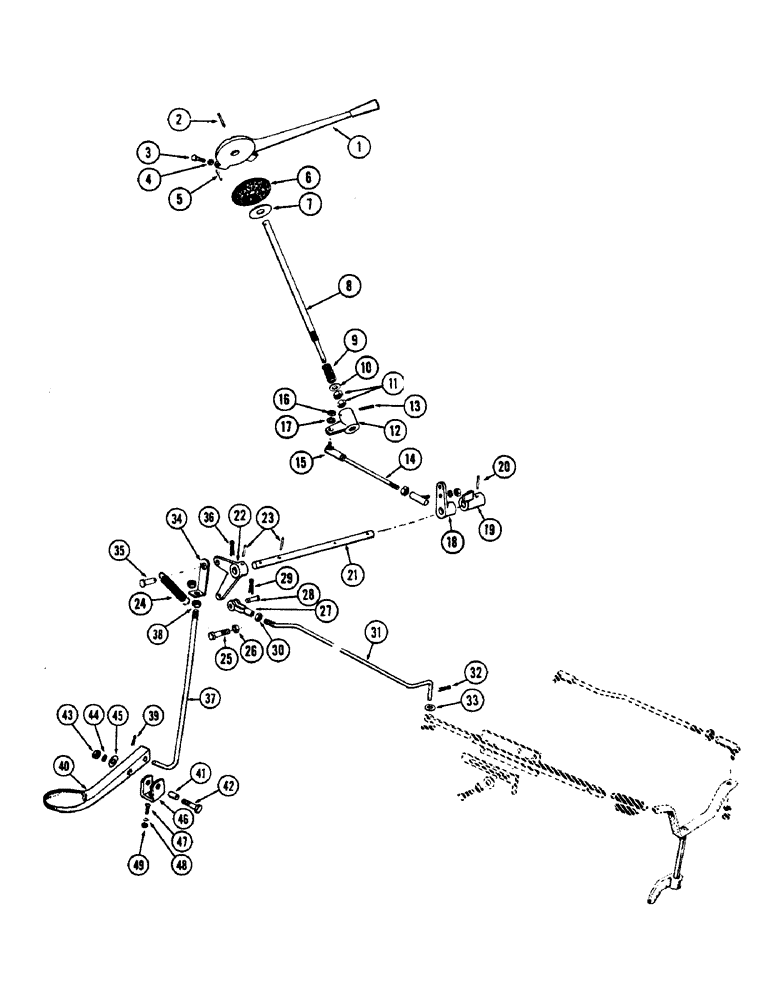

Запчасти Case 430CK (024) - THROTTLE CONTROL LINKAGE, (148B) SPARK IGNITION ENGINE

1

A36513

LEVER

- hand

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Lever stop 1/4" x 3/4", Slotted

1шт.

6

A11969

GASKET

DISC - friction

1шт.

7

A32838

WASHER

- friction disc

1шт.

8

A36512

SHAFT

- hand lever

1шт.

9

A34113

SPRING

- tension, hand lever shaft

1шт.

10

195-33

WASHER,1/2"

- plain 1/2"

1шт.

11

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

12

A35644

LEVER - lower, hand lever shaft

1шт.

13

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

14

A35642

ROD

- intermediate

1шт.

15

A10329

BALL JOINT,1/4" - 28 x 1"

- intermediate shaft

2шт.

16

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

A35638

LEVER

- cross shaft

1шт.

19

A35639

LEVER

- override, foot throttle

1шт.

20

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

21

A35637

SHAFT - cross, throttle lever

1шт.

22

A35633

LEVER- throttle rod

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

24

B18277

SPRING

- return

1шт.

25

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - spring, 3/8" x 3" N.F. hex. hd.

1шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam 3/8" N.F. hex.

2шт.

27

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - throttle rod to lever

1шт.

28

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

29

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

30

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

31

A35634

ROD

- throttle to governor rod

1шт.

32

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

33

95-6

WASHER,3/8"

- plain 3/8"

1шт.

34

G16898

LINK - foot, Serial Range: throttle-lever

1шт.

35

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link to lever 3/8" x 1.060"

1шт.

36

132-26

COTTER PIN

PIN Split (Cotter), 3/32" x 3/4"

1шт.

37

A35830

ROD

- foot throttle

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

39

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

40

G15692

PEDAL

- foot throttle

1шт.

41

G49618

BUSHING

- pedal pivot

1шт.

42

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

43

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

44

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

45

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

46

G15694

BRACKET

- pedal pivot

1шт.

47

77-512

SCREW

- 5/16" x 3/4" truss hd.

1шт.

48

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.
