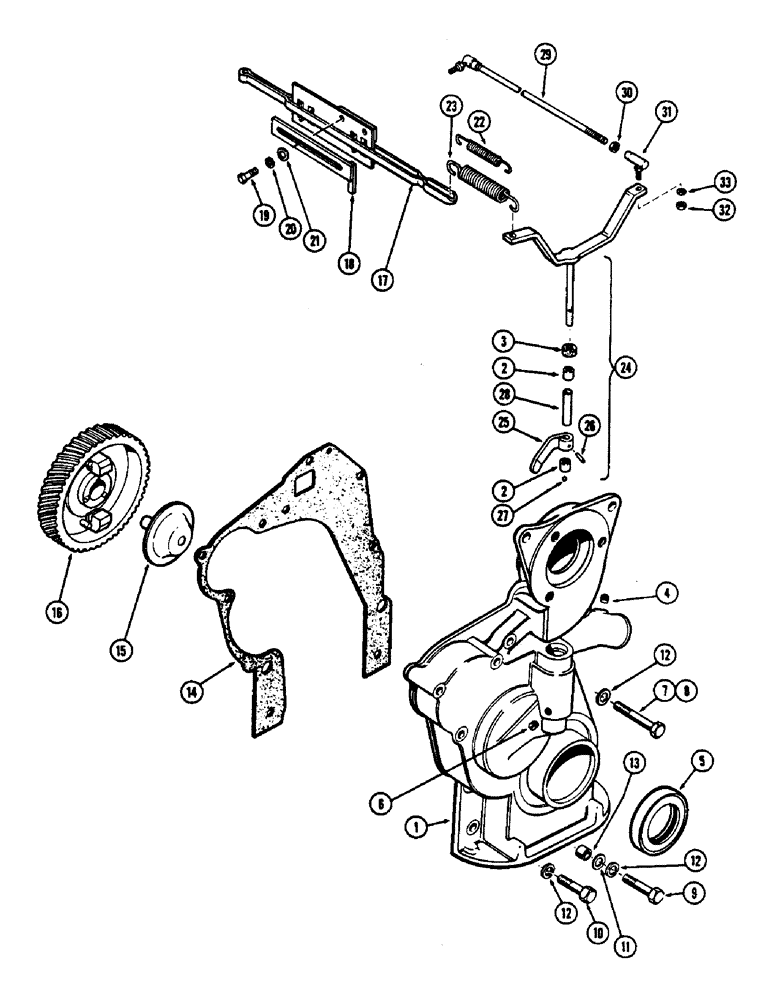

Запчасти Case 430CK (022) - GOVERNOR AND TIMING GEAR COVER, (148B) SPARK IGNITION ENGINE
№
Артикул
Название
Примечание
Количество
1
A36979
COVER
- timing gear, Inlcudes: Ref. 2 - 6
1шт.
2
A35822
NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W
BEARING - governor shaft
2шт.
3
A30011
SEAL
- dust, governor shaft
1шт.
4
221-1013
DRAIN PLUG,Sq Hd, 3/8"-18 NPTF
PLUG - pipe, 3/8" sq. hd.
1шт.
5
A36609
OIL SEAL
- oil, crankshaft
1шт.
6
A30016
FITTING
PLUG - pipe, 1/8" sltd. hd.
1шт.
7
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- 3/8 x 3-1/4" N.C. hex.
3шт.
8
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8 x 2-3/4" N.C. hex.
1шт.
9
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
10
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
11
195-25
WASHER,3/8"
- 13/32 x 13/16 x 5/64"
2шт.
12
92-6
LOCK WASHER,3/8"
9шт.
13
A29442
RING
- dowel
2шт.
14
A38226
GASKET
- cover to block (Replaces A30010)
1шт.
15
A29957
SHAFT
ASSY. - governor
1шт.
16
G37066
GEAR
- camshaft (Incl. governor weights)
1шт.
17
G45793
ROD
- governor control
1шт.
18
G45792
STOP
- governor control rod
1шт.
19
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
20
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
21
195-521
WASHER,5/16", SAE
- 11/32 x 11/16 x 1/16"
2шт.
22
G48514
SPRING
- inner, governor speed control
1шт.
23
G48511
SPRING
- outer, governor speed control
1шт.
24
A30125
SHAFT
& LEVER ASSY. - governor, Inlcudes: Ref. 25 and 26
1шт.
25
NSS
NOT SOLD SEPARAT
LEVER - (Order A30125)
1шт.
26
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, (Arm to shaft) 1/8" x 3/4", Slotted
1шт.
27
211-5
BALL,3/16" Dia
- thrust, governor shaft (.) 3/16" Dia
1шт.
28
A30012
SPACER
- thrust, shaft & lever
1шт.
29
G45222
ROD
- governor to carburetor, Inlcudes: Ref. 30 and 31
1шт.
30
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
1шт.
31
A10329
BALL JOINT,1/4" - 28 x 1"
1шт.
32
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
2шт.
33
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
Выбрано товаров: 33
