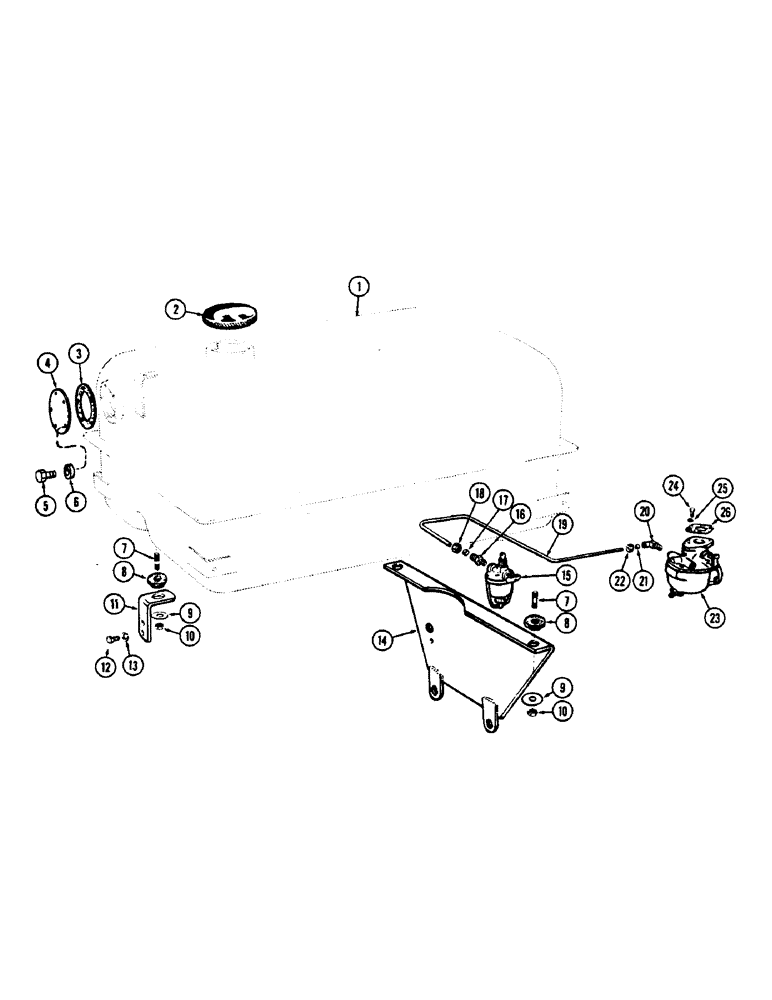

Запчасти Case 430CK (018) - FUEL SYSTEM, (148B) SPARK IGNITION ENGINE

1

A36560

TANK

Fuel (1st used trac. S/N 8248494)

1шт.

1

A21404

X

TANK - fuel (Used prior to trac. S/N 8248494)

1шт.

2

A32119

CAP

Filler, 2-7/8" O.D. (Used w/A36560 tank)

1шт.

2

A33558

CAP

Filler, 3-1/2" O.D. (Used w/A21404 tank)

1шт.

A20619

GASKET

Filler cap (Not illust.)

1шт.

3

A11822

GASKET

Cover

1шт.

4

G16143

COVER - tank opening

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

#10 x 7/16" N.F. rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

5шт.

7

A8373

STUD

Tank mtg., 3/8" N.F. x 2-7/16"

3шт.

8

A7336

CUSHION

Rubber, tank support

6шт.

9

B18261

WASHER

Stud

3шт.

10

131-5

LOCK NUT,3/8"-16, GB

Hex

3шт.

11

A36177

SPARE PART SUPPORT - rear fuel tank

1шт.

12

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

A35629

SPARE PART SUPPORT - front, fuel tnak

1шт.

15

A30049

STRAINER ELEMENT

Fuel

1шт.

16

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - Includes Ref. 17 and 18

1шт.

17

222-103

SLEEVE,5/16" Tube

1шт.

18

222-113

TUBE NUT,9/16"-24

For 5/16" tube

1шт.

19

G46268

FUEL TUBE,0.312" OD x 20.5" L

Fuel, strainer to carburetor

1шт.

20

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

Includes Ref. 21 and 22

1шт.

21

222-653

SLEEVE,5/16" Tube, Comp

1шт.

22

22-663

GASKET

NUT - for 5/16" tube

1шт.

23

REF

INSTRUCTION

CARBURETOR - (See Figure 20)

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

A29956

GASKET

, Serial Range: Carburetor-manifold

1шт.
