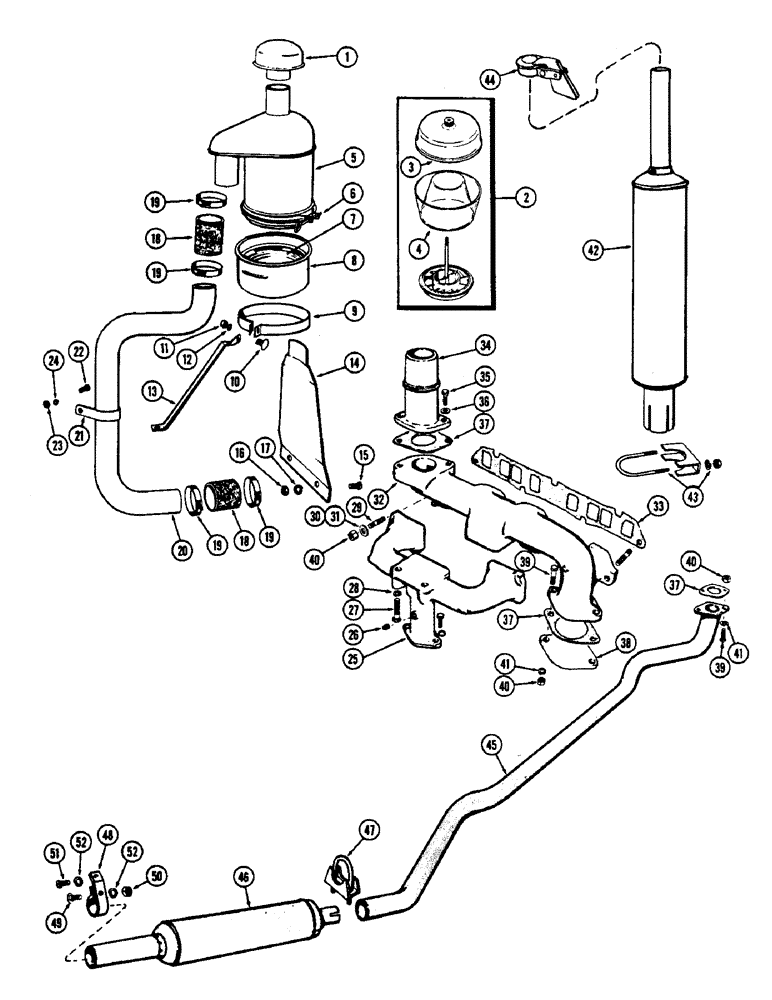

Запчасти Case 430CK (016) - MANIFOLD, MUFFLER AND AIR CLEANER, (148B) SPARK IGNITION ENGINE

1

A30532

CAP

- air cleaner

1шт.

2

A35321

CLEANER

PRE-CLEANER ASSY, Inlcudes: Ref. 3 and 4

1шт.

3

D30676

COVER

1шт.

4

D30675

BODY

- (Plastic)

1шт.

5

A36421

AIR CLEANER ASSY, Inlcudes: Ref. 6 - 8

1шт.

6

G45011

CLAMP - oil cup

1шт.

7

G46013

CUP

- oil, inner

1шт.

8

G46012

CUP - oil, outer

1шт.

9

G15662

BAND - mounting, air cleaner

2шт.

10

11-420

BOLT - 1/4 x 1-1/4" rd. hed. sq. nk.

1шт.

11

25-104

NUT,1/4"-20, G5

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

A35590

BRACE - air, Serial Range: cleaner-engine

1шт.

14

A36422

BRACKET - mounting, air cleaner

1шт.

15

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

A36423

HOSE

- air cleaner & carburetor

2шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

20

A35588

TUBE

- air, Serial Range: cleaner-carburetor

1шт.

21

A35860

CLAMP -, Serial Range: tube-engine

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

A37172

MANIFOLD

- intake (Replaces G11920)

1шт.

26

221-1002

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. hd.

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

A29431

STUD

- manifold to head, 3/8" N.C. x 1-3/4"

7шт.

30

A30058

WASHER

- 13/32 x 7/8 x 1/8"

4шт.

31

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

32

G2042

MANIFOLD

- exhaust

1шт.

33

A30030

GASKET

-, Serial Range: manifold-head

1шт.

34

G2125

OUTLET

ELBOW - exhaust, vertical muffler

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

G46853

MANIFOLD GASKET

- exhaust opening

2шт.

38

G2044

LARGE PLATE

COVER - exhaust opening

1шт.

39

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

40

A30022

X

NU - 3/8" N.C. hex., brass

9шт.

41

195-25

WASHER,3/8"

- 13/32 x 13/16 x 5/64"

2шт.

42

G45264

MUFFLER

- vertical

1шт.

43

A13240

CLAMP,2-5/8" ID

- vertical muffler

1шт.

44

G45048

CAP

- weather, vertical muffler

1шт.

45

A36908

PIPE, EXHAUST SYSTEM

PIPE - exhaust, horizontal muffler

1шт.

46

G45287

MUFFLER

- horizontal

1шт.

47

A27077

CLAMP

-, Serial Range: muffler-pipe

1шт.

48

A36909

BRACKET

CLAMP - muffler, rear

1шт.

49

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

50

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

51

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

52

92-5

LOCK WASHER,5/16"

2шт.
