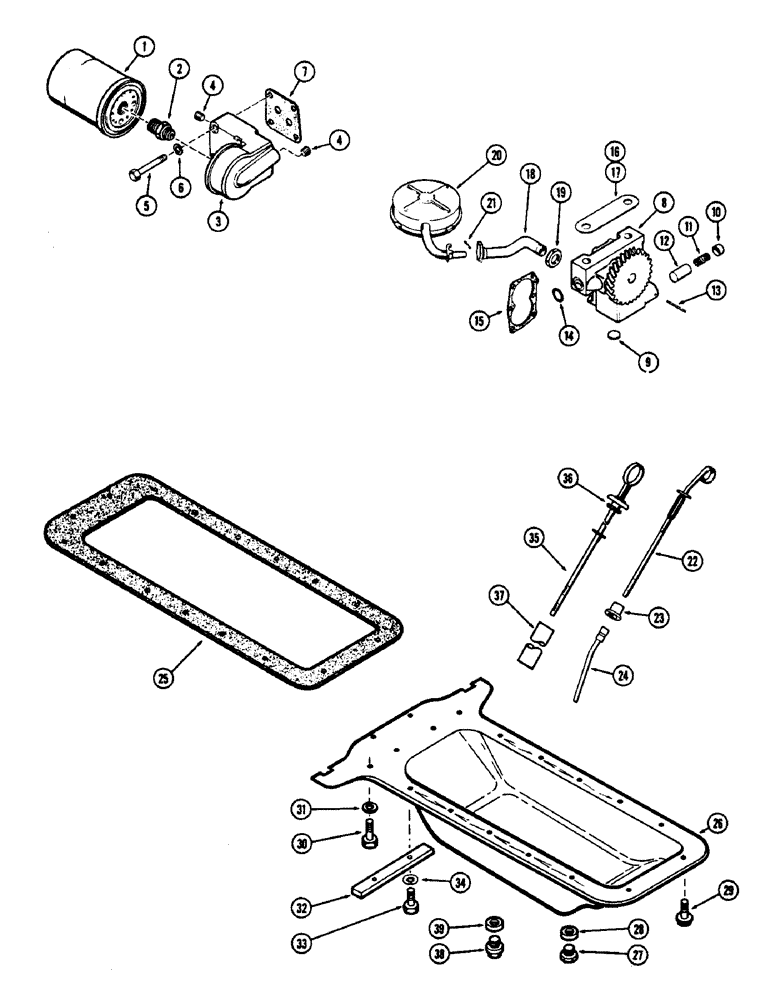

Запчасти Case 430CK (014) - OIL FILTER, OIL PUMP AND OIL PAN, (148B) SPARK IGNITION ENGINE

1

G45210

FILTER, ELEMENT

ELEMENT, FILTER FILTER - oil

1шт.

2

A35557

ADAPTER

ADAPTER -, Serial Range: filter-bracket

1шт.

3

A35556

BRACKET

BRACKET - filter mounting

1шт.

4

221-841

PLUG

PLUG - pipe, 1/4" hex. socket hd.

4шт.

5

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT - 5/16" x 1-3/4" N.C. hex. hd.

4шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G46854

GASKET

GASKET -, Serial Range: bracket-block

1шт.

8

G11844

PUMP, ENGINE OIL

PUMP ASSY. - engine oil, complete, Inlcudes: Ref. 9 - 15

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

9

41-102

PLUG,Exp, 1/2"

PLUG - pump body

2шт.

10

A29260

RETAINER

RETAINER - relief spring

1шт.

11

G48513

VALVE SPRING

SPRING - relief valve

1шт.

12

A155144

VALVE, PRESSURE RELI

- relief

1шт.

13

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL PIN - 1/8" x 1/4"

1шт.

14

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

15

G46852

GASKET

GASKET - pump cover

1шт.

16

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

2шт.

17

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

18

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction

1шт.

19

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

20

A30126

SPARE PART FLOAT ASSY - (Includes screen)

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

G37037

DIPSTICK

DIPSTICK - oil level (Before eng. #2122555), Inlcudes: Ref. 23

1шт.

23

G46892

OIL SEAL

SEAL - rubber (Before eng. #2122555)

1шт.

24

G45139

BRACKET

SUPPORT - dipstick (Before eng. #2122555)

1шт.

25

D128322

RELAY

GASKET KIT - oil pan (See Figure 4)

1шт.

26

A36723

X

OIL PAN - engine, Inlcudes: Ref. 27 and 28

1шт.

27

A14280

PLUG

PLUG - drain (3/4" N.F. thrd.) See ref. 37

1шт.

28

A27927

OIL PAN GASKET SET

GASKET - drain plug

1шт.

29

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

14шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Rear Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

31

195-400

WASHER

WASHER - sealing, 5/16"

2шт.

32

G11372

STRIP

STRIP - reinforcing

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

34

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

35

A37148

DIPSTICK

DIPSTICK - oil level (Eng. #2122555 and after), Inlcudes: Ref. 36

1шт.

36

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING

2шт.

37

A37149

TUBE

SUPPORT - dipstick (Eng. #2122555 and after)

1шт.

38

G45786

PLUG

PLUG - drain (3/8" P.T.), Inlcudes: Ref. 39

1шт.

39

G46903

GASKET

GASKET - drain plug

1шт.
