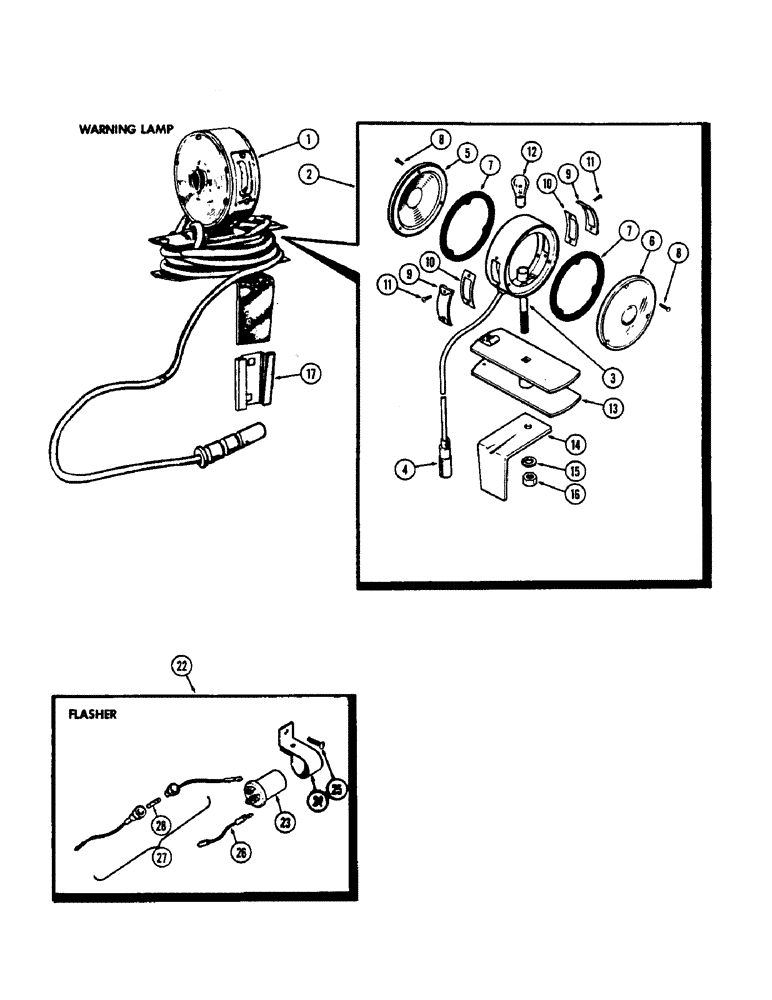

Запчасти Case 430CK (126) - WARNING LAMP

1

A11066

ATTACHMENT - warning lamp (Mchy. item), Inlcudes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066M), Inlcudes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A11066M), Inlcudes: Ref. 4

1шт.

4

B50259

PLUG

- auxiliary socket

1шт.

5

B50337

LENS

- lamp (Amber)

1шт.

6

B53962

LENS

- lamp (Red)

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6 x 1/2" rd. hd.

6шт.

9

B50328

LENS - side

2шт.

10

B50329

GASKET - side lens

2шт.

11

182-43

SCREW - side lens, #6 x 5/16" pan hd.

4шт.

12

33686

BULB

- lamp

1шт.

13

B50330

SPOOL - cable

1шт.

14

B50331

BRACKET - mounting, attachment

1шт.

15

92-7

LOCK WASHER,7/16"

std. 7/16"

1шт.

16

25-117

NUT,7/16"-20, G5

- lamp, 7/16" N.C. hex.

1шт.

17

A8179

SOCKET

- lamp mounting

1шт.

22

A22630

FLASHER ATTACHMENT - (Mchy. item), Inlcudes: Ref. 23 - 28

1шт.

23

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.

24

A22626

BRACKET - flasher mounting, attachment

1шт.

25

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- bracket, #10 x 1/2" rd. hd., flasher attachment

1шт.

26

A22628

WIRE - flasher to auxiliary outlet, attachment

1шт.

27

A22629

WIRE ASSY. - flasher to power, attachment

1шт.

28

223-4

FUSE,4 Amp, Type 3AG

- flasher (4 amp.), attachment

1шт.
