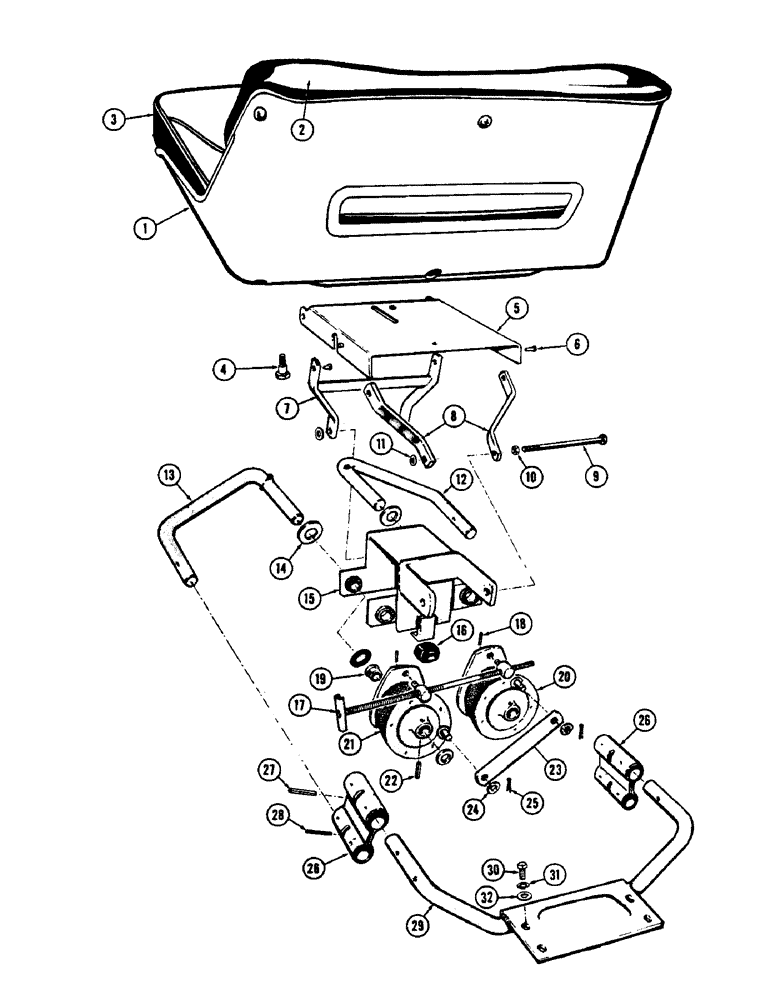

Запчасти Case 430CK (124) - DELUXE OPERATORS SEAT
№
Артикул
Название
Примечание
Количество
1
D32724
SEAT ASSY.
SEAT ASSEMBLY - complete (Incl. ref. 2 & 3)
1шт.
2
A24712
BACKREST
CUSHION - back rest
1шт.
173-213
SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"
- mach., 1/4" x 1/2" rd. hd. (Phillips recessed)
3шт.
3
A24713
CUSHION
- seat
1шт.
173-213
SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"
- mach., 1/4" x 1/2" rd. hd. (Phillips recessed)
2шт.
195-518
WASHER,1/4", SAE
2шт.
4
G49092
BOLT - shoulder, Serial Range: seat-support
1шт.
5
G10778
CHANNEL
- seat mounting
1шт.
6
G10779
RIVET
- channel to pivot arm
4шт.
7
G13379
ARM - front pivot
1шт.
8
G10775
ARM
- rear pivot
2шт.
9
14-572
BOLT,Hex, 5/16" - 24 x 4-1/2", Gr 5
- 5/16" x 4-1/2" N.F. hex. hd.
2шт.
10
131-3
LOCK NUT,5/16"-24, GB
NUT - lock, 5/16" N.F. hex.
2шт.
11
95-4
WASHER,1/4"
- plain 1/4"
2шт.
12
G46000
SHAFT - spring, R.H.
1шт.
13
G46001
SHAFT - spring, L.H.
1шт.
14
A26462
WASHER
- spring shafts (1-1/4" O.D. x 49/64" I.D. #14 ga.)
6шт.
15
G45031
BRACKET - support
1шт.
16
A30644
BUMPER
- rubber
1шт.
17
G45001
STUD
- adjusting
1шт.
18
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, , Adjusting stud 1/8" x 3/4", Slotted
2шт.
19
G46002
FLANGED BEARING
BEARING - flange
2шт.
20
G45002
SPRING SEAT
RUBBER SPRING ASSEM. - R.H.
1шт.
21
G45003
SPRING SEAT
RUBBER SPRING ASSEM. - L.H.
1шт.
22
135-583
GROOVED PIN,1/4" x 1 1/4", Type D
PIN - Grooved, 1/4" x 1 1/4", Type D
2шт.
23
G45005
LINK - stabilizing
1шт.
24
95-8
WASHER,1/2"
plain - stabilizing link 1/2"
4шт.
25
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
26
G45004
LEVER
- suspension
2шт.
27
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, , Lever to spring shaft 1/4" x 1 1/4", Slotted
2шт.
28
138-155
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, , Lever to support 5/16" x 1 1/4", Slotted
2шт.
29
G13034
SUPPORT - seat suspension
1шт.
30
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
4шт.
31
92-6
LOCK WASHER,3/8"
std. 3/8"
4шт.
32
95-6
WASHER,3/8"
- std. 3/8"
4шт.
Выбрано товаров: 35
