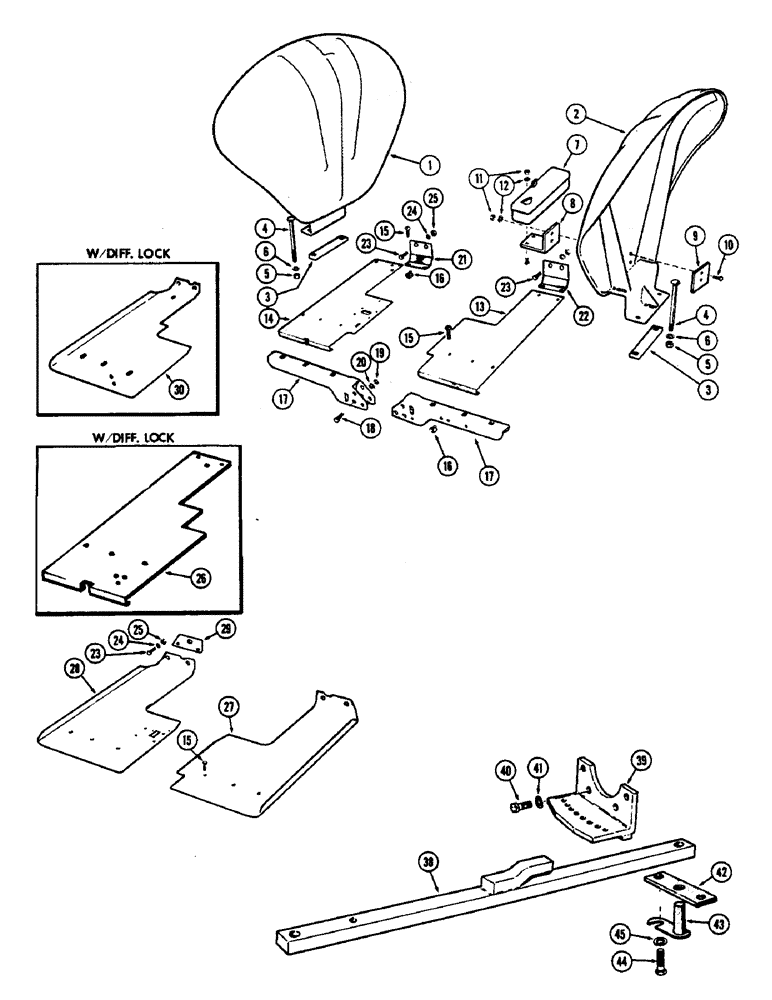

Запчасти Case 430CK (122) - STEP PLATES, FENDERS AND TOOL BOX

1

A29118

SEAT

FENDER - R.H. (Order A35749)

1шт.

2

A35749

FENDER - L.H. and R.H.

2шт.

3

A29091

CLAMP - fender

2шт.

4

15-7104

BOLT (MACHINE)

BOLT - 7/16" x 6-1/2" N.C. hex. hd.

4шт.

5

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

6

92-7

LOCK WASHER,7/16"

std. 7/16"

4шт.

7

G13138

TOOL BOX

1шт.

8

A35831

BRACKET - tool box

1шт.

9

A35832

PLATE - reinforcement, tool box bracket

1шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

G15651

PLATE - step, L.H.

1шт.

14

G14388

PLATE - step, R.H.

1шт.

15

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N.C. truss hd.

6шт.

16

1502286C2

NUT,Floating Cage, 5/16"-18

- retainer, 5/16" N.C.

6шт.

17

G10752

SUPPORT - front, step plate

2шт.

18

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex. hd.

6шт.

19

92-6

LOCK WASHER,3/8"

std. 3/8"

6шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

6шт.

21

A35170

SUPPORT

- rear, R.H. step plate

1шт.

22

A35171

SUPPORT

- rear, L.H. step plate

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

std. 3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. hd.

4шт.

26

A36603

PLATE - step, R.H. (w/differential lock)

1шт.

27

G14307

PLATE - step, L.H. (Early production)

1шт.

28

G17228

PLATE - step, R.H. (Early production)

1шт.

29

G17219

SUPPORT - rear, step plate (Early production)

2шт.

30

A36600

PLATE - step, R.H. (Early production w/diff. lock)

1шт.

38

A36756

DRAWBAR

- (34-3/4" lg.) (Replaces G30279)

1шт.

39

G30266

SUPPORT

- rear, drawbar

1шт.

40

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Drawbar Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar 5/8"

4шт.

42

G10617

SUPPORT

- front, drawbar

1шт.

43

G14403

PIN

& LATCH - drawbar

1шт.

44

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Drawbar Hex, 3/4"-10 x 2", G5

2шт.

45

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar 3/4"

2шт.
