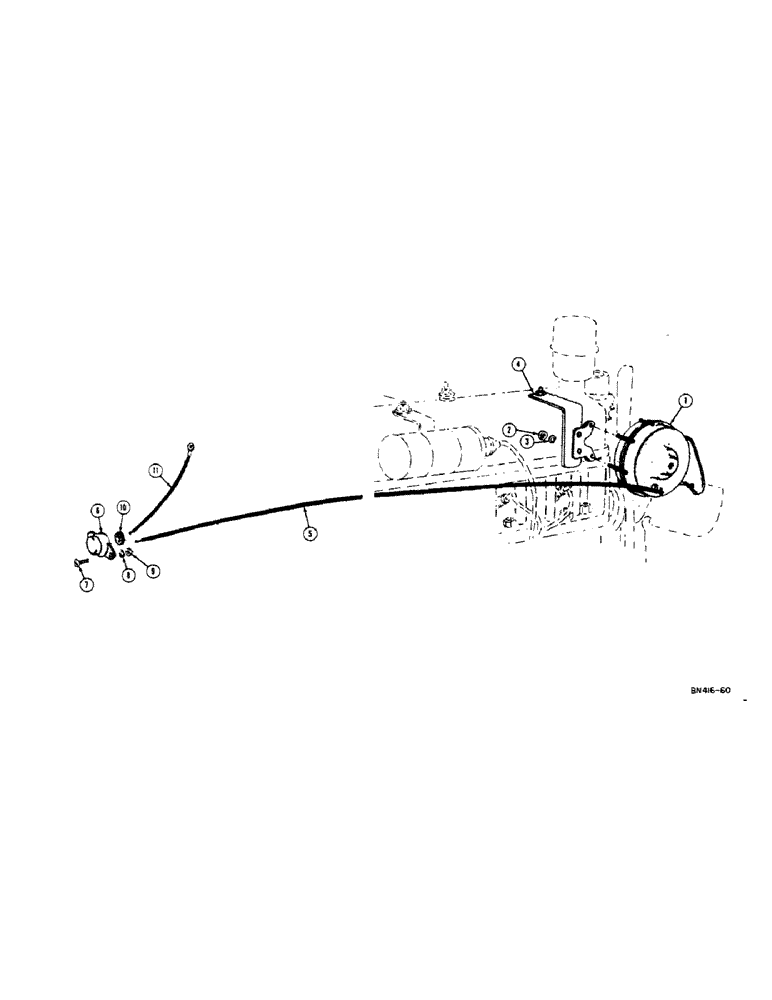

Запчасти Case 420BD (056[A]) - ELECTRIC HORN

1

G45033

HORN - electric (12 volt)

1шт.

2

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

G13392

BRACKET - horn mounting

1шт.

5

G44001

CABLE - horn button to horn (65" long)

1шт.

6

O7740AB

BUTTON - horn

1шт.

7

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- rd. hd. (#10-24 NC x 1/2)

2шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

129-7

NUT,Hex, #10 - 24

- hex. ( NC) #10-24

2шт.

10

O8332AB

X

GROMMET - rubber

1шт.

11

G44000

CABLE - horn button to ammeter (11" long)

1шт.
