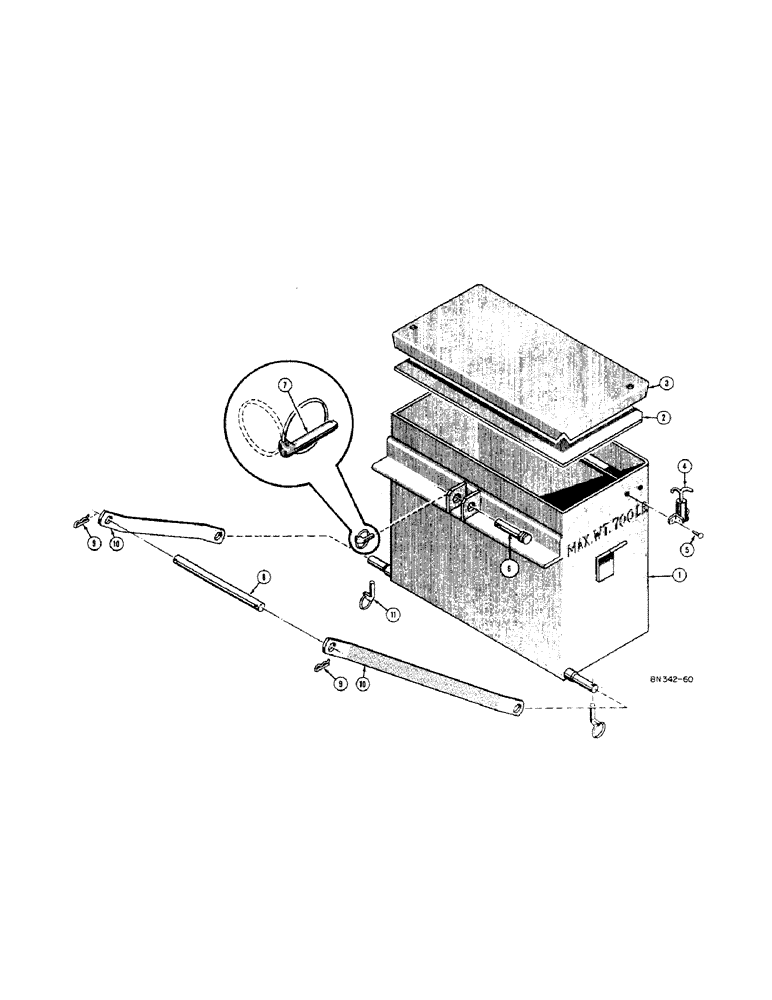

Запчасти Case 420BD (234) - 700 LB. REAR WEIGHT BOX (WITH EAGLE HITCH)

1

DR10591

BOX - weight (700 lb.), Includes: Ref. 2 - 5

1шт.

2

DR10587

SHELF - tool box

1шт.

3

DR10589

LID - weight box

1шт.

4

O3771AB

X

CATCH - lid

2шт.

5

45-35

RIVET - button head (3/16 x 5/16)

4шт.

6

V14209

X

PIN - Eagle Hitch, mast

1шт.

7

SV2433

X

PIN AND RING - retaining

1шт.

8

DR10603

SHAFT - turnbuckle pivot

1шт.

9

CT1864S

X

PIN - spring, shaft

2шт.

10

DR10595

STRAP - support

2шт.

11

SV2433

X

PIN AND RING - retaining

2шт.
