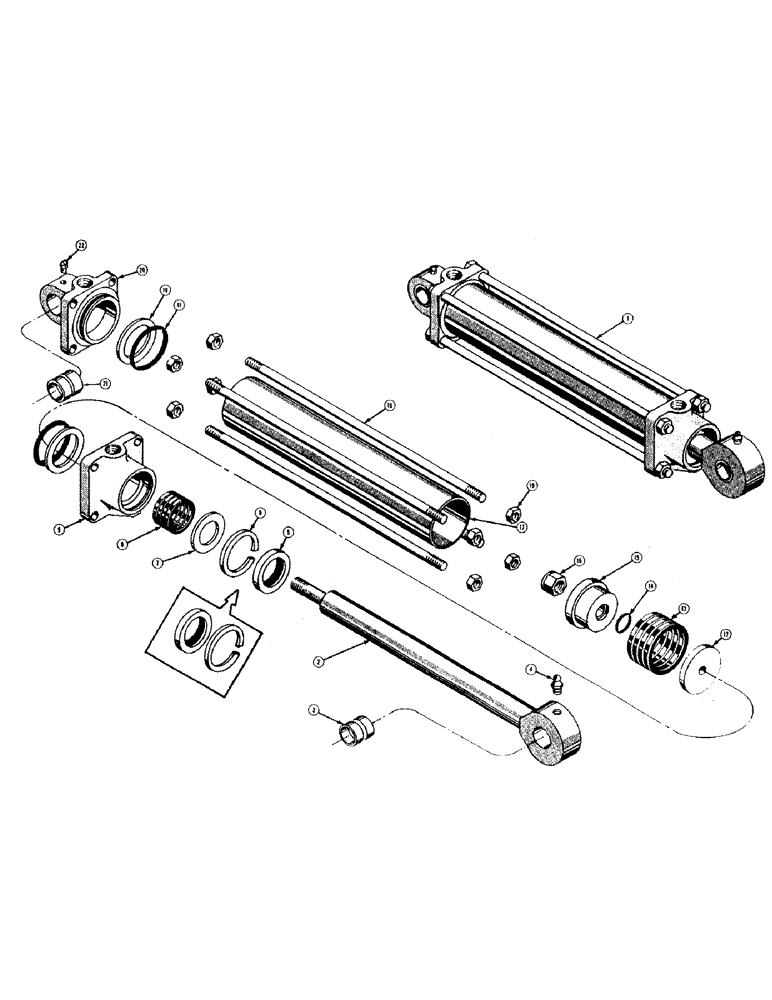

Запчасти Case 420BD (226) - 36070 HYDRAULIC BOOM CYLINDER (3-1/2" DIA.)

1

36070

TOY

CYLINDER - boom, hydraulic (3-1/2") (See D24418, Figure 228), Includes: Ref. 2 - 22

1шт.

2

D20039

ROD - piston, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

6

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

7

70741

X

WASHER - packing, piston rod (Used with 30567 cylinder end cap only) (1/8" thick)

1шт.

D25043

WASHER

- packing, piston rod (Used with D25596 cylinder end cap only) (1/4" thick)

1шт.

8

30568

PACKING

- piston rod

1шт.

9

30567

FLANGE

CAP - end, cylinder (Use D25596 and D25043)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D25596

CAP - end, cylinder (When replacing 30567 end cap also order 1-D25043 washer)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24987

RING

- leather backup (Used only with cylinder end or cap which has .210" wide "O" ring groove)

2шт.

D25495

RING

- plastic backup (Used only with cylinder end or cap which has .185" wide "O" ring groove)

2шт.

11

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING - seal, cylinder tube

2шт.

12

NLS

NO LONGER SERVICED

WASHER - packing, piston

1шт.

13

17578

PACKING

- piston

1шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - seal (Used with D23736 piston only)

1шт.

15

30571

PISTON - cylinder (No "O" ring) (Use D23736, A7623, and D23688)

1шт.

D23736

PISTON - cylinder (With "O" ring) (When replacing 30571 piston without "O" ring, also order 1-A7623 "O" ring and 1-D23688 lock nut)

1шт.

16

131-19

LOCK NUT,1"-14, GB

NUT - hex, lock (30571 piston only) 1-14 NF

1шт.

D23688

X

NUT - hex, lock (D23736 piston only) 1-14 NF

1шт.

17

36063

LUBE NIPPLE

TUBE - cylinder

1шт.

18

36069

TOY

ROD - tie

4шт.

19

230-4618

LOCK NUT,1/2"-20, GA

NUT - hex, lock (1/2-20 NF)

8шт.

20

D20054

END - cylinder, Includes: Ref. 21

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- end cap

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.
