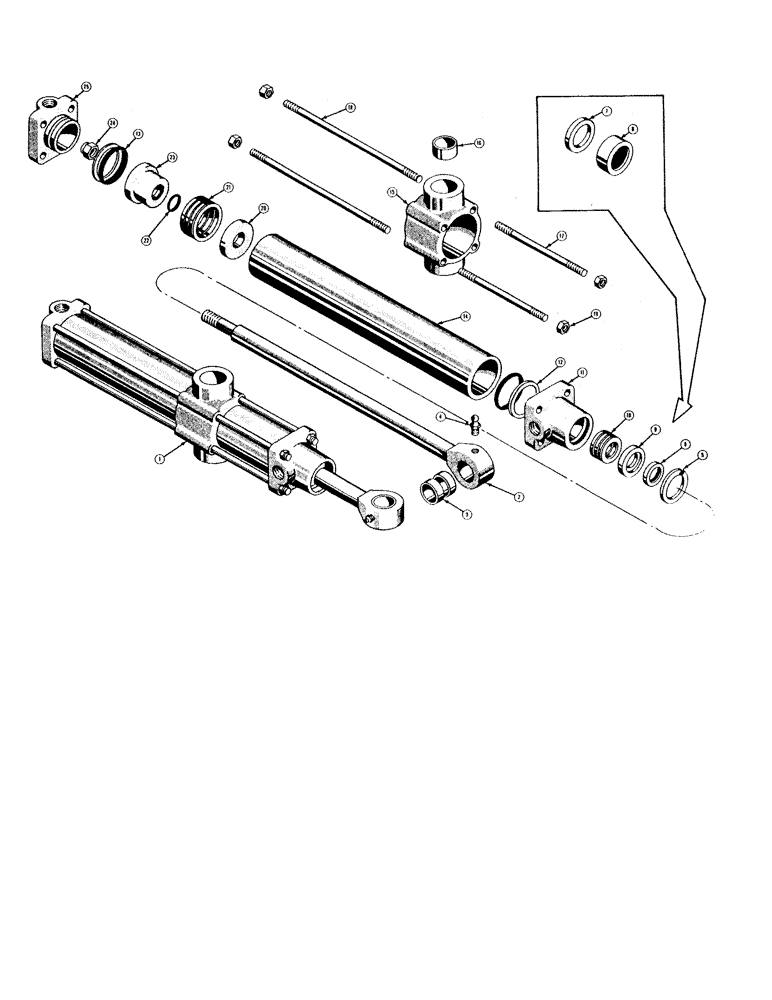

Запчасти Case 420BD (224) - BACKHOE HYDRAULIC SWING CYLINDERS

1

38374

WASHER

CYLINDER - swing, hydraulic (L.H.) Original equipment - use D23252, Includes: Ref. 2 - 25

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

38375

CYLINDER - swing, hydraulic (R.H.) Original equipment - use D23253, Includes: Ref. 2 - 25

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

D23252

CYLINDER - swing, hydraulic (L.H.) Replacement only, Includes: Ref. 2 - 25

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

D23253

CYLINDER - swing, hydraulic (R.H.) Replacement only, Includes: Ref. 2 - 25

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

2

D20027

ROD - piston, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

6

17603

WIPER SEAL

- wiper, piston rod (Use D23962 and D23933)

1шт.

7

36259

WASHER

- piston rod packing (Use D23962 and D23933)

1шт.

8

D23962

SEAL

- wiper, piston rod (Also order 1-D23933 gland when replacing 17603 seal

1шт.

9

D23933

GLAND

- seal, wiper (Also order 1-D23962 seal when replacing 36259 washer

1шт.

10

17597

PACKING

- piston rod

1шт.

11

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order 1-D24985 backup ring, as replacement end has .210" wide "O" ring groove.

1шт.

12

D25495

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

13

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal, cylinder tube

2шт.

14

38372

TUBE - cylinder (3" O.D. - 38374 and 38375 cylinders only)

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

D23250

TUBE - cylinder (2-7/8" O.D. - D23252 and D23253 cylinders only)

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

15

D20528

TRUNNION - hydraulic cylinder (3" O.D. cylinder tube only)

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

D21905

TRUNNION - hydraulic cylinder (2-7/8" O.D. cylinder tube only), Includes: Ref. 16

1шт.

38374 and 38375 - D23252 and D23253 are identical except for cylinder tube outside diameter and matching trunnion. D23252 and D23253 cylinders have 2-7/8" O.D. tube; whereas 38374 and 38375 cylinders have 3" O.D. tube.

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder trunnion

2шт.

17

38369

ROD - tie, short

4шт.

18

38370

ROD - tie, long

4шт.

19

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex., lock (3/8-24 NF)

8шт.

20

30630

CARTRIDGE

WASHER - packing, piston

1шт.

21

17598

PACKING

- piston

1шт.

22

O3522CK

X

"O" RING - seal, piston (Used with D23738 piston only)

1шт.

23

30631

X

PISTON - cylinder (No. "O" ring) (Use D23738, D23739, and O3522CK)

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing 30631 piston, also order 1-O3522CK "O" ring and 1-D23739 locknut)

1шт.

24

131-152

HARDWARE

NUT - hex., lock (30631 piston only) 3/4-16 NF

1шт.

D23739

LOCK NUT

NUT - hex., lock (D23738 piston only) 3/4-16 NF

1шт.

25

34888

END

- cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order 1-D24985 backup ring, as replacement end has .210" wide "O" ring groove.

1шт.
