(200) - BACKHOE BUCKETS (OPTIONAL EQUIPMENT), TRENCHING BUCKETS (MACHINERY ITEMS)

Запчасти Case 420BD (200) - BACKHOE BUCKETS (OPTIONAL EQUIPMENT), TRENCHING BUCKETS (MACHINERY ITEMS)

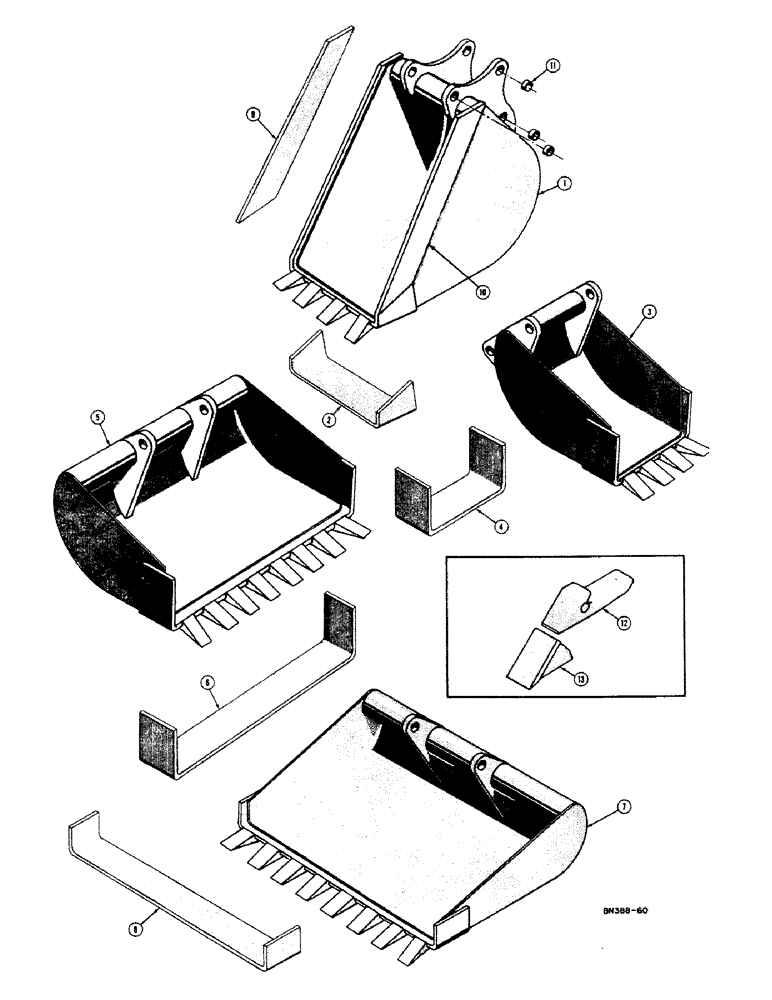

Схема запчастей Case 420BD - (200) - BACKHOE BUCKETS (OPTIONAL EQUIPMENT), TRENCHING BUCKETS (MACHINERY ITEMS)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D20807M

BUCKET - trenching, 14", Includes: Ref. 2

1шт.

2

37289

BLADE - cutting, center

1шт.

1

D20808M

BUCKET - trenching, 16", Includes: Ref. 2

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

2

36894

BLADE - cutting, center

1шт.

1

D23359M

BUCKET - trenching, 18", Includes: Ref. 2

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

2

D23226

BLADE - cutting, center

1шт.

1

D20809M

BUCKET - trenching, 19", Includes: Ref. 2

1шт.

2

35282

FINGER

BLADE - cutting, center

1шт.

1

D20810M

BUCKET - trenching, 24", Includes: Ref. 2

1шт.

1

D23360M

BUCKET - trenching, 24", Includes: Ref. 2

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

2

35277

KNIFE

BLADE - cutting, center (D20810M and D23360M buckets)

1шт.

1

D20811M

BUCKET - trenching, 30", Includes: Ref. 2

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

2

35294

BLADE - cutting, center

1шт.

3

D25213M

BUCKET - bellhole, 12", Includes: Ref. 4

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

4

D23107

BLADE - cutting, bellhole buckets

1шт.

3

37698M

BUCKET - bellhole, 16", Includes: Ref. 4

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

4

37696

BLADE - cutting, bellhole bucket

1шт.

3

37446M

BUCKET - bellhole, 30", Includes: Ref. 4

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

4

37448

BLADE - cutting, bellhole bucket

1шт.

5

D20461M

BUCKET - bellhole and graveyard, 36", Includes: Ref. 6

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

6

D20453

BLADE - cutting

1шт.

7

37910M

BUCKET - graveyard, 38", Includes: Ref. 8

1шт.

Buckets are available from factory. Buckets not indicated are not available for factory shipment.

1шт.

8

37908

BLADE - cutting, parts

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, side (L.H.) trenching buckets only, parts

1шт.

10

D21606

EDGE, CUTTING

BLADE - cutting, side (R.H.) trenching buckets only, parts

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket (If used), parts for buckets

4-6шт.

12

D26268

SPRING

SHANK - tooth, parts for buckets

3-8шт.

13

35205

X

TOOTH - bucket, parts

3-8шт.
