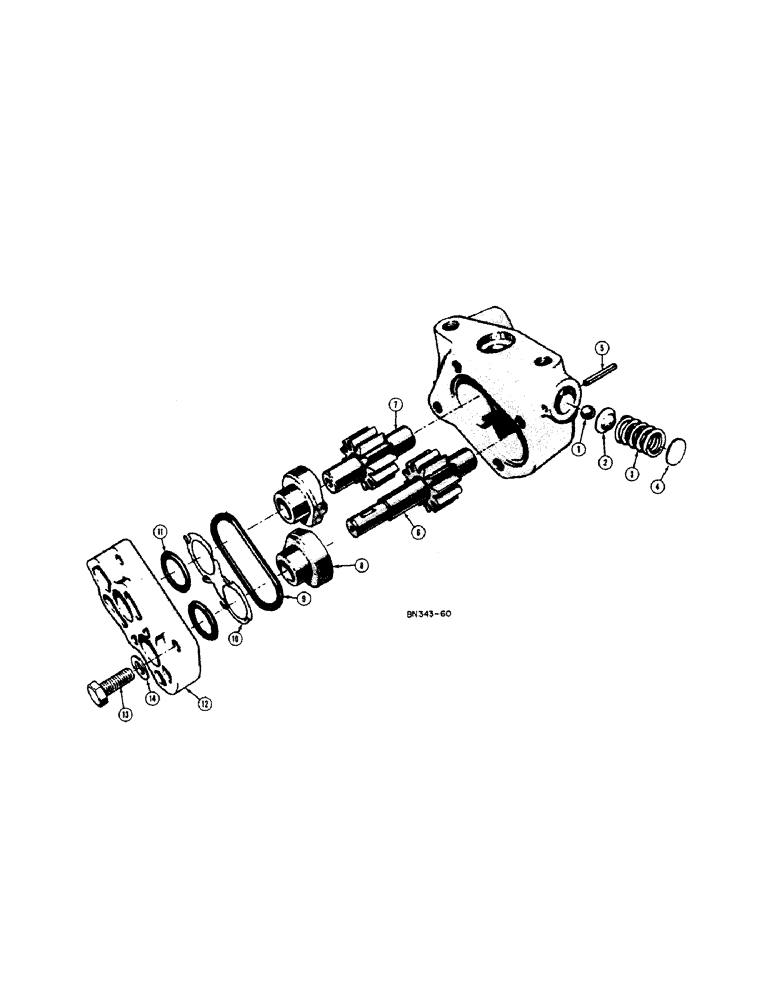

Запчасти Case 420B (132) - G45100 HYDRAULIC PUMP

G45100

X

PUMP - hydraulic, Includes: Ref. 1 - 14

1шт.

1

211-10

BALL

- detent valve (11/32" dia.)

1шт.

2

G46054

RETAINER - detent valve ball

1шт.

3

G46051

X

SPRING - detent valve

1шт.

4

G46053

SHIM - detent valve spring

1шт.

5

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, , Detent spring 3/16" x 1 1/8", Slotted

1шт.

6

G46223

GEAR

- drive

1шт.

7

G46049

GEAR - driven

1шт.

8

G46224

BEARING - gear

2шт.

9

G46055

SEAL

"O" RING - pump seal

1шт.

10

G46052

PLATE

- spring, bearing

1шт.

11

O8377AB

X

"O" RING - gear bearing seal

2шт.

12

G4500

COVER - pump

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

14

95-6

WASHER,3/8"

- plain (3/8)

4шт.
