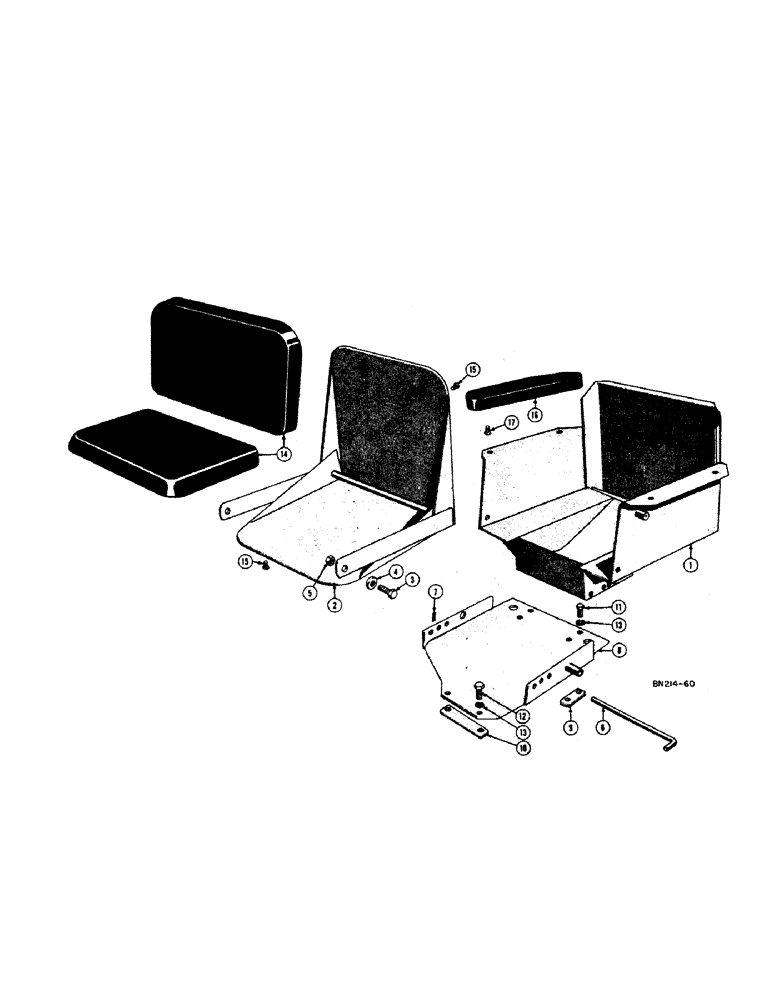

Запчасти Case 420B (128) - SEAT

D20856

KIT

TRANSFERS - set, models 420B and 420BD

1шт.

51

TRANSFERS - set, model 320B

1шт.

1

36061

SEAT - tractor

1шт.

2

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

FRAME - seat

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2-20 NF x 1-1/4

2шт.

4

95-8

WASHER,1/2"

- plain 1/2"

2шт.

5

230-4618

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2-20 NF)

2шт.

6

36047

PIN - seat adjusting

1шт.

7

132-45

COTTER PIN,1/8" x 5/8"

PIN, Split (Cotter), 1/8" x 5/8"

1шт.

8

D21911

BRACKET - mounting, seat

1шт.

9

D20072

SPACER - mounting bracket, rear (If used)

2шт.

10

D20080

SPACER - mounting bracket, front (If used)

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4-6шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(If used) Hex, 3/8"-16 x 1 3/4", G5

2шт.

13

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

6шт.

14

36112

CUSHION - seat

2шт.

15

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- flat hd. machine (1/4-20 NC x 3/4)

8шт.

16

D20853

CUSHION - arm rest

2шт.

17

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- flat hd. machine (1/4-20 NC x 3/4)

4шт.

G13106

INTERLOCK - hydraulic

1шт.
