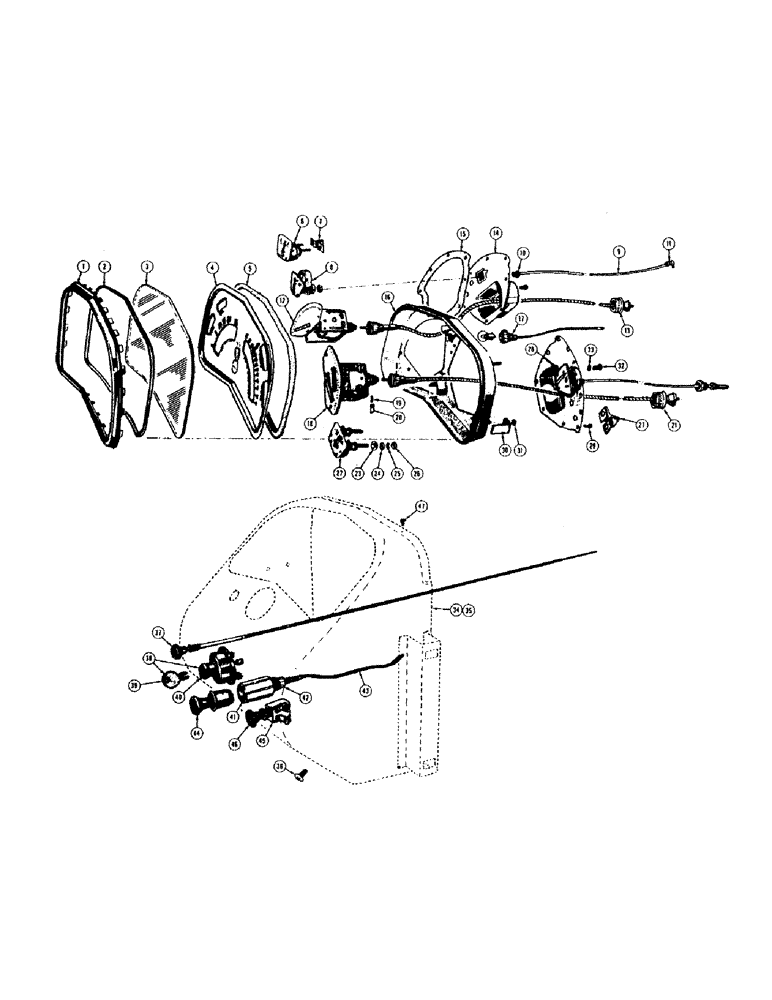

Запчасти Case 420B (124) - INSTRUMENT PANEL

1

G46028

RIM

- clamp, instrument panel glass

1шт.

2

G46032

GASKET,0.125" ID x 0.188" OD

GASKET - rubber tube, between glass and rim

1шт.

3

G46029

GLASS

- instrument panel

1шт.

4

G47022

FACE - instrument panel (Model 420B)

1шт.

G46030

FACE - instrument panel (Model 420BD)

1шт.

5

G46033

GASKET

- rubber channel, Serial Range: rim-glass

1шт.

6

G45024

X

GAUGE - fuel

1шт.

7

G46039

INSULATOR

- fuel gauge posts

1шт.

8

G45025

GAUGE - oil pressure (Gas engine)

1шт.

G45026

GAUGE - oil pressure (Diesel engine)

1шт.

9

G10972

LINE

TUBE - oil pressure, engine to gauge (Gas engine)

1шт.

G15502

TUBE - oil pressure, engine to gauge (Diesel engine)

1шт.

10

222-110

TUBE NUT,3/8"-24

NUT - hex., tube (1/8)

1шт.

11

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- 90 degrees (1/8)

1шт.

222-110

TUBE NUT,3/8"-24

NUT - hex., tube (1/8) (Not shown)

1шт.

12

G45027

SPEEDOMETER

1шт.

13

G13022

CABLE

HOUSING - speedometer drive cable (39" long)

1шт.

A20260

X

CABLE - speedometer drive (Not shown)

1шт.

14

G46035

CASE - speedometer, fuel gauge and oil gauge

1шт.

15

G46034

GASKET - cork, instrument case

2шт.

16

G45018

CASE

- instrument cluster

1шт.

17

G45029

SOCKET - lamp

2шт.

18

G45022

TACHOMETER

- hourmeter

1шт.

19

G46037

WICK - oil, felt

2шт.

20

G46036

TUBE - oil wick retainer 0.1875" OD x 0.687" L

2шт.

21

G13023

X

HOUSING - tachometer drive cable (34" long)

1шт.

A20260

X

CABLE - tachometer drive (Not shown)

1шт.

22

G45021

AMMETER

1шт.

23

131-400

PALNUT - #10-32 NF

4шт.

24

195-1009

WASHER

- plain, brass (#10)

4шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

26

129-661

NUT

- hex., brass (#10-32 NF)

4шт.

27

G46040

INSULATOR - ammeter posts

1шт.

28

G45020

GAUGE

- heat indicator, includes case

1шт.

29

182-83

SCREW

- #8-32 NC x 5/16

8шт.

30

G46038

CLAMP - mounting, instrument cluster

4шт.

31

129-27

NUT,Hex, #10 - 32

- hex. ( NF) #10-32

4шт.

32

G46041

SCREW - retaining, speedometer and tachometer

4шт.

33

G46042

WASHER - rubber, retaining screw

4шт.

34

G13994

PANEL - instrument (Gas engine)

1шт.

35

G14073

PANEL - instrument (Diesel engine)

1шт.

36

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- truss hd. (5/16-18 NC x 3/4)

4шт.

37

G45151

WIRE - choke (Gas engine)

1шт.

G13343

WIRE - engine shut off (Diesel engine)

1шт.

38

G13136

IGNITION SWITCH

SWITCH - starting and ignition, Includes: Ref. 39 and 40

1шт.

39

G15470

KEY

- ignition

1шт.

40

G15469

NUT

- face, ignition switch

1шт.

41

G13344

SOCKET - lighter, Includes: Ref. 42 and 43

1шт.

42

G44803

FUSE - lighter socket

1шт.

43

G44022

ELECTRICAL WIRE

CABLE - lighter socket

1шт.

44

G13345

UNIT

- pop-out, lighter

1шт.

45

G13142

IGNITION SWITCH

SWITCH - light, Includes: Ref. 46

1шт.

46

G13141

KNOB

- light switch

1шт.

47

G10865

CUSHION - rubber button

2шт.
