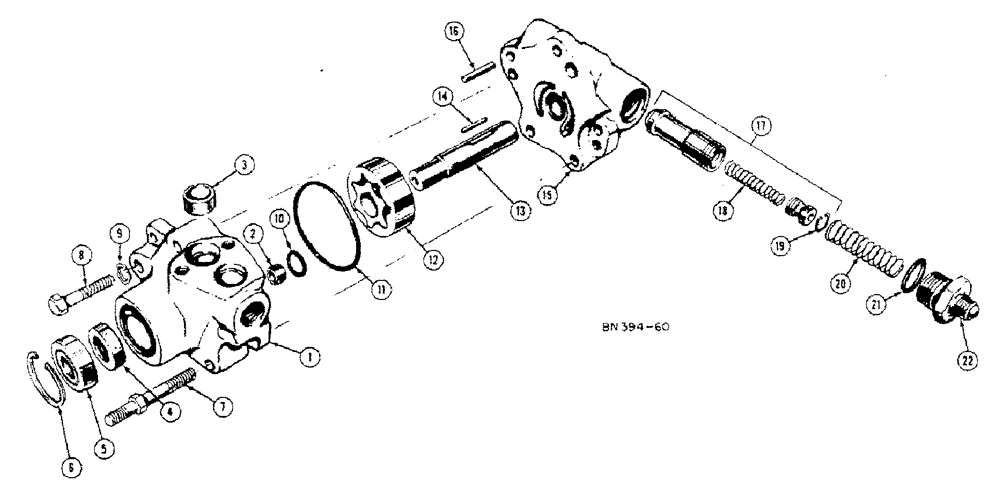

Запчасти Case 420B (116[A]) - G45055 HYDRAULIC PUMP

G45055

SPARE PART PUMP - hydraulic, power steering, Includes: Ref. 1 - 22

1шт.

1

4859AA

BODY - pump, Includes: Ref. 2 and 3

1шт.

2

O10559AB

RETAINER - pump body gasket (9/16 x 1/4)

1шт.

3

O10560AB

RETAINER - pump body gasket (3/4 x 5/8)

1шт.

4

O10570AB

X

SEAL - oil, pump shaft

1шт.

5

O10558AB

X

BEARING - pump, shaft

1шт.

6

O10569AB

SPARE PART SNAP RING - bearing retainer

1шт.

7

O10572AB

STUD - pump, Serial Range: body-cover

3шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

O10568AB

X

"O"RING - flow director

1шт.

11

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

"O"RING - pump body to cover

1шт.

12

A11024

SPARE PART ROTOR - pump

1шт.

13

O10557AB

SPARE PART SHAFT - pump, drive

1шт.

14

O10571AB

X

PIN - drive, pump rotor

1шт.

15

A11017

COVER - pump, Includes: Ref. 16

1шт.

16

O10561AB

SPARE PART PIN - dowel, cover to pump body

2шт.

17

G45084

SPARE PART VALVE - control, Includes: Ref. 18 and 19

1шт.

18

O10562AB

SPARE PART SPRING - relief valve plunger

1шт.

19

A11019

SNAP RING - relief valve

1шт.

20

O10564AB

X

SPRING - flow control valve

1шт.

21

O10567AB

X

"O"RING - fitting, valve cap bolt

1шт.

22

G46130

SPARE PART FITTING - bolt, pump valve cap

1шт.
