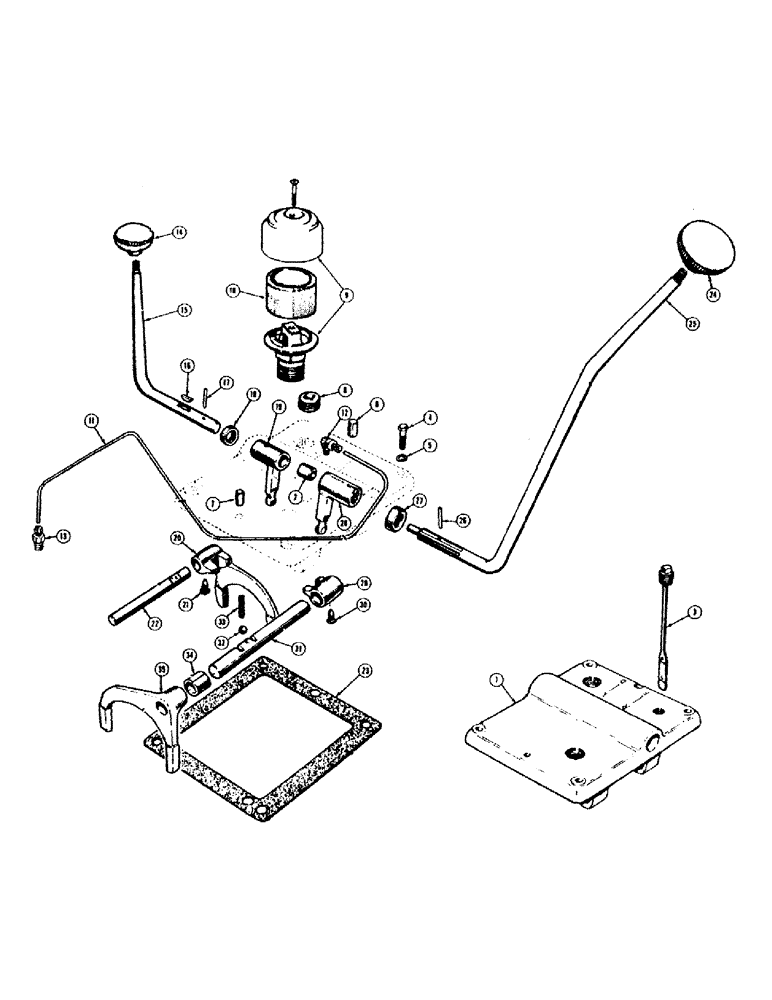

Запчасти Case 420B (092) - SHUTTLE TRANSMISSION CONTROL COVER

1

G14325

COVER - control (Models 320B and 420BD)

1шт.

G14326

COVER - control (Model 420B), Includes: Ref. 2

1шт.

2

G49650

BUSHING - control lever

1шт.

3

G14099

TUBE,1.5, 3.562" L

DIPSTICK - oil level (Models 320B and 420BD)

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

G10711

PIN

- dowel, control cover rear (1/2 x 3/4)

1шт.

7

VT4453

X

PIN - dowel, control cover front (3/8 x 3/4)

1шт.

8

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe (3/4 NPT)

1шт.

9

A9238

BREATHER

- oil, control cover, Includes: Ref. 10

1шт.

10

A10059

FILTER, ELEMENT

ELEMENT - filter

1шт.

11

G46179

LINE - oil, regulator valve to cover (Model 420B)

1шт.

12

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

- oil line to cover (3/16 x 1/8)

1шт.

222-501

TUBE NUT,3/8"-24

NUT - tube (Not shown)

1шт.

13

222-301

UNION

FITTING - oil line to regulator valve (3/16 x 1/8)

1шт.

222-501

TUBE NUT,3/8"-24

NUT - tube (Not shown)

1шт.

14

O3501AB

X

KNOB - control lever

1шт.

15

G16636

LEVER - shift control, low range

1шт.

16

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

17

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, , Control lever 3/32" x 1", Slotted

1шт.

18

O4244AB

SEAL - oil, control lever

1шт.

19

G16663

LEVER - shift fork, low range

1шт.

20

G16632

FORK

- shift, low and direct range

1шт.

21

VT2012

X

SCREW - lock, shift fork and lug

1шт.

22

G16634

RAIL

- shift, low and direct range

1шт.

23

G46842

GASKET

- control cover to torque tube

1шт.

24

O3501AB

X

KNOB - control lever

1шт.

25

G16880

LEVER - shift, control, shuttle (See G14327, below)

1шт.

G14327

LEVER KIT - replaces shift control lever with key way

1шт.

26

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, , Control lever 3/32" x 1", Slotted

1шт.

27

O4244AB

SEAL - oil, control lever

1шт.

28

G16881

LEVER - shift fork, shuttle

1шт.

29

G16638

LUG

- shuttle shift lever rail

1шт.

30

VT2012

X

SCREW - lock, shift fork and lug

2шт.

31

G30264

KIT

RAIL - shift, shuttle

1шт.

G49612

SPACER

- shift rail, shuttle (7/8" O.D. x 1/2" long)

1шт.

32

VT4913

X

BALL - detent, shift rail interlock (3/8" dia.)

2шт.

33

G47039

SPRING

- detent ball, shift rail

2шт.

34

G16682

X

SPACER - shift rail, shuttle (7/8" O.D. x 9/16" long)

1шт.

35

G16633

FORK

- shift, shuttle

1шт.
