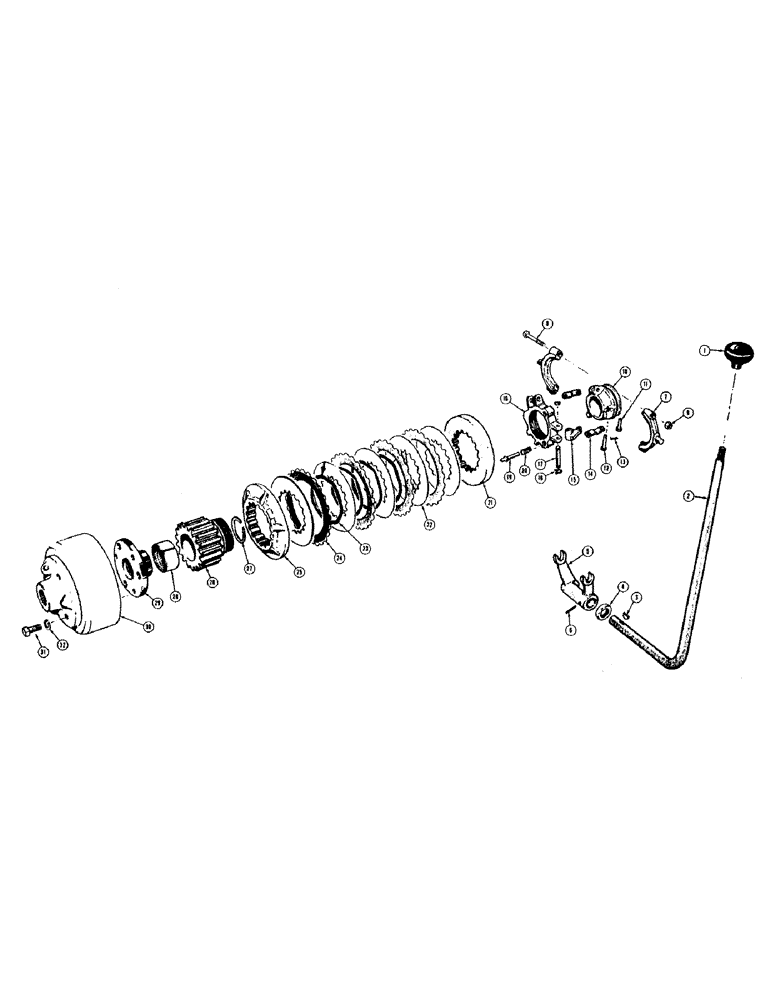

Запчасти Case 420B (084) - HAND CLUTCH

1

O3501AB

X

KNOB - clutch lever

1шт.

2

G10712

LEVER - hand clutch throw-out

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil, hand clutch lever

1шт.

5

G10439

COUPLING

YOKE - hand clutch throw-out

1шт.

6

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Yoke to clutch lever 3/16" x 1 3/8", Slotted

1шт.

7

4259AA

X

COLLAR - clutch throw-out, Includes: Ref. 8 and 9

1шт.

8

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2

2шт.

9

O10837AB

NUT - stop (5/16-24 NF)

2шт.

10

6140A

X

SLEEVE - clutch sliding

1шт.

11

A8823

PIN,6.29mm OD x 26.99mm L

- clutch lever link, outer (1-1/32" long)

3шт.

12

A8824

PIN

- clutch lever link, inner (1-15/64" long)

3шт.

13

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

14

O9045AB

LINK - clutch lever

6шт.

15

O9042AB

X

FINGER - clutch

3шт.

16

O9040AB1

X

YOKE - clutch adjusting

1шт.

17

G10658

AXLE PIN

PIN - clutch finger pivot

3шт.

18

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin #31, Ext

6шт.

19

O9041AB

X

PIN - clutch adjusting lock

2шт.

20

O5839AB

X

SPRING - clutch adjusting lock pin

2шт.

21

6139A

X

PLATE - clutch pressure

1шт.

22

A7102

CLUTCH DRIVING PLATE

PLATE - hand clutch, driven

6шт.

23

O9039AB

SPRING

- clutch drive plate separator

5шт.

24

A11127

PLATE

- clutch drive

5шт.

25

A7107

PLATE

- hand clutch backing

1шт.

26

G14059

HUB CAP

HUB - hand clutch, Includes: Ref. 27 and 28

1шт.

27

G10438

RING

- internal snap, clutch hub

1шт.

28

G10437

BEARING

BUSHING - clutch hub

1шт.

29

G10441

HUB CAP

HUB - clutch drum

1шт.

30

G10440

DRUM HUB

DRUM - clutch

1шт.

31

G49021

BOLT (SPREADER)

BOLT - drilled, clutch drum and hub

3шт.

32

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

3шт.
