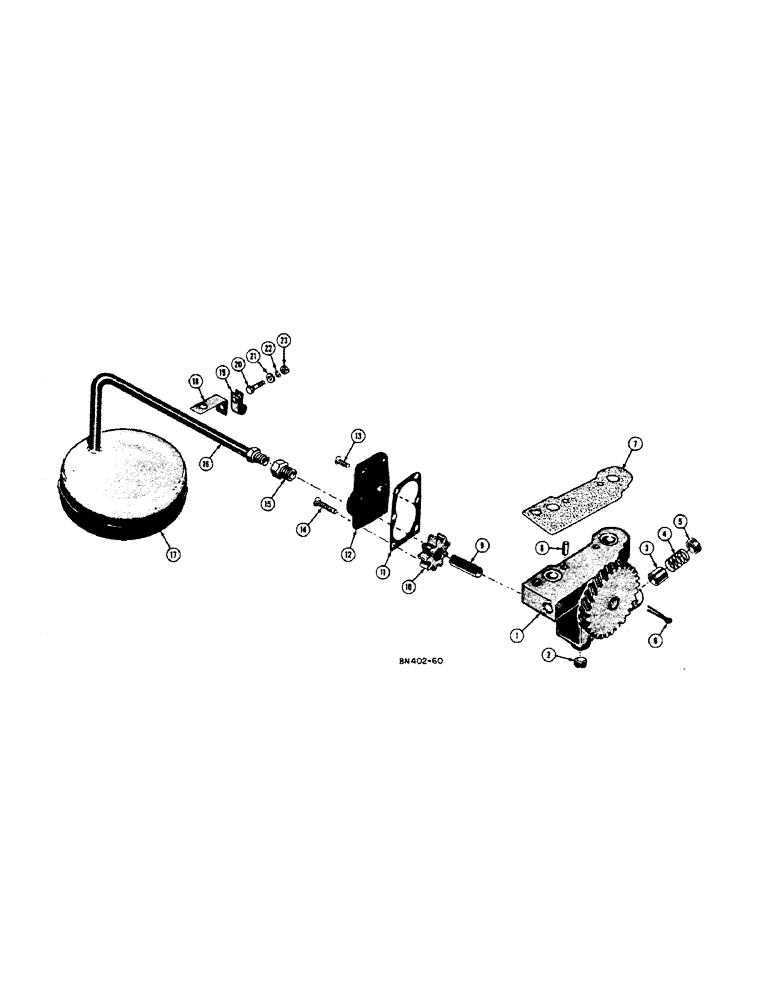

Запчасти Case 420B (040) - ENGINE OIL PUMP - DIESEL

1

GD157L-4074

BODY - oil pump

1шт.

2

A10766

BODY

PLUG - pipe, oil pump body

1шт.

3

VT3298

X

VALVE - relief, oil pressure

1шт.

4

30325

SPRING - relief valve

1шт.

5

VT3221

X

RETAINER - spring, relief valve

1шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

7

30187

SIEVE

SHIM - oil pump to bearing cap

1шт.

8

VT3355

PIN - dowel, pump to bearing cap

2шт.

9

VT3218

STUD - idler gear

1шт.

10

VT3255

X

GEAR - idler, oil pump (9T)

1шт.

11

30252

TOOL KIT

GASKET - cover to body, oil pump

1шт.

12

30177

SHAFT

COVER - oil pump

1шт.

13

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- flat hd. (1/4-20 NC x 5/8)

5шт.

14

73-416

BOLT (MACHINE),Flat, 1/4"

SCREW - flat hd. (1/4-20 NC x 1)

1шт.

15

30204

FITTING - inlet, Serial Range: tube-pump

1шт.

16

30095

STRAINER - oil, Includes: Ref. 17

1шт.

17

10399

SCREEN - oil strainer

1шт.

18

30581

SHAFT SEAL

BRACKET - suction tube

1шт.

19

30582

CLIP - suction, Serial Range: tube-bracket

1шт.

20

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

21

95-4

WASHER,1/4"

- plain (1/4)

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

1шт.
