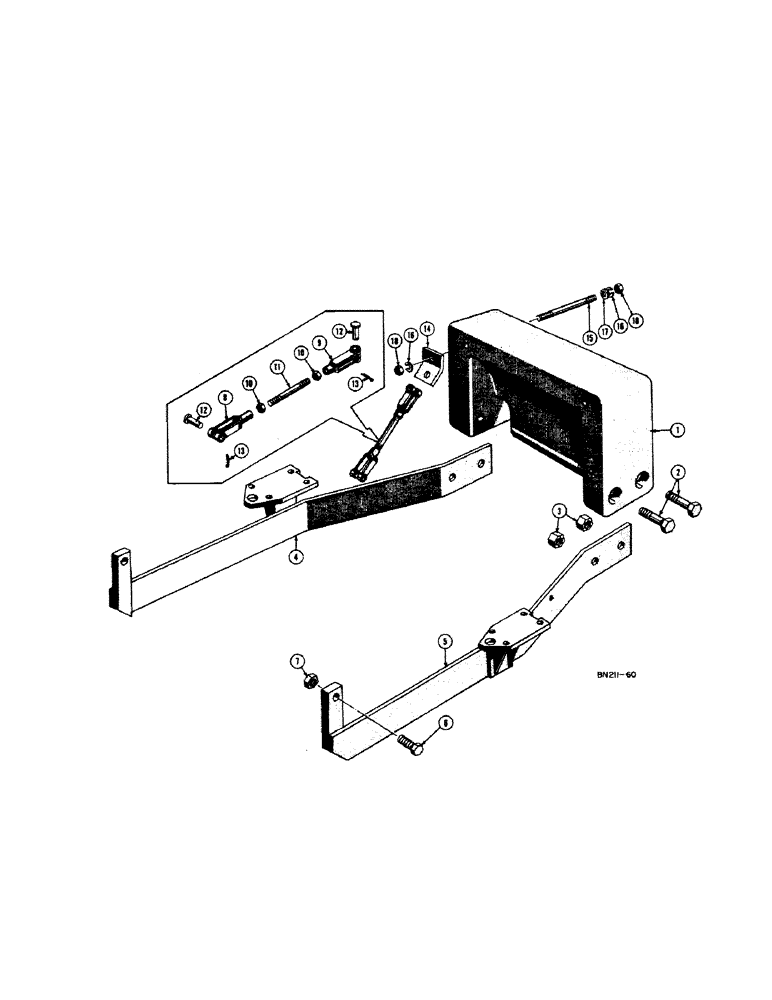

Запчасти Case 420B (238[A]) - 900 LB. REAR COUNTER WEIGHT FOR LOADER

1

32105

COUNTERWEIGHT - 900 lb.

1шт.

2

14-1680

CAPSCREW,Hex, 1" - 14 x 5", Gr 5

HHCS - 1-14 NF x 5

4шт.

3

131-370

LOCK NUT

NUT - hex., lock (1-14 NF)

4шт.

4

D21061

ARM - support, R.H.

1шт.

5

D21062

ARM - support, L.H.

1шт.

6

14-1656

HHCS - 1-14 NF x 3-1/2

2шт.

7

232-46116

LOCK NUT,1"-14, GC

NUT - hex., lock (1-14 NF)

2шт.

8

48606

X

YOKE - stabilizer rod, lower

2шт.

9

O2701AB

X

YOKE - stabilizer rod, upper

2шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

4шт.

11

D21054

ROD - stabilizer

2шт.

12

O2499AB1

X

PIN - yoke

4шт.

13

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

4шт.

14

32167

SUPPORT - stabilizer rod

2шт.

15

32169

GEAR

BOLT - rod support

2шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

17

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D.)

2шт.

18

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

4шт.
