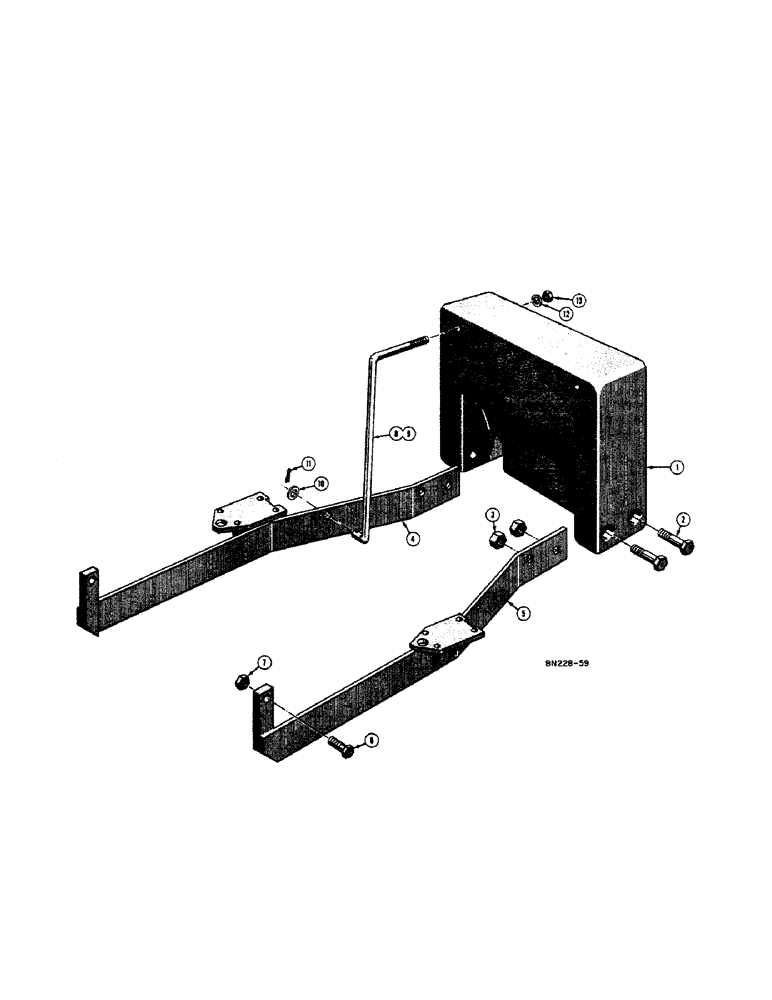

Запчасти Case 420B (236[A]) - 1400 LB. COUNTERWEIGHT FOR LOADER

1

31112

O-RING

COUNTERWEIGHT - 1400 lb.

1шт.

2

14-1680

CAPSCREW,Hex, 1" - 14 x 5", Gr 5

HHCS - 1-14 NF x 5

4шт.

3

131-370

LOCK NUT

NUT - hex., lock (1-14 NF)

4шт.

4

D21386

ARM - support, R.H.

1шт.

5

D21387

ARM - support, L.H.

1шт.

6

14-1656

HHCS - 1-14 NF x 3-1/2

2шт.

7

232-46116

LOCK NUT,1"-14, GC

NUT - hex., lock (1-14 NF)

2шт.

8

D24366

ROD - support, R.H.

1шт.

9

D24367

ROD - support, L.H.

1шт.

10

95-10

WASHER,5/8"

- plain (5/8)

2шт.

11

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

12

195-41

WASHER,5/8"

2шт.

13

131-154

LOCK NUT,5/8"-18, GA

NUT - hex., lock (5/8-18 NF)

2шт.
