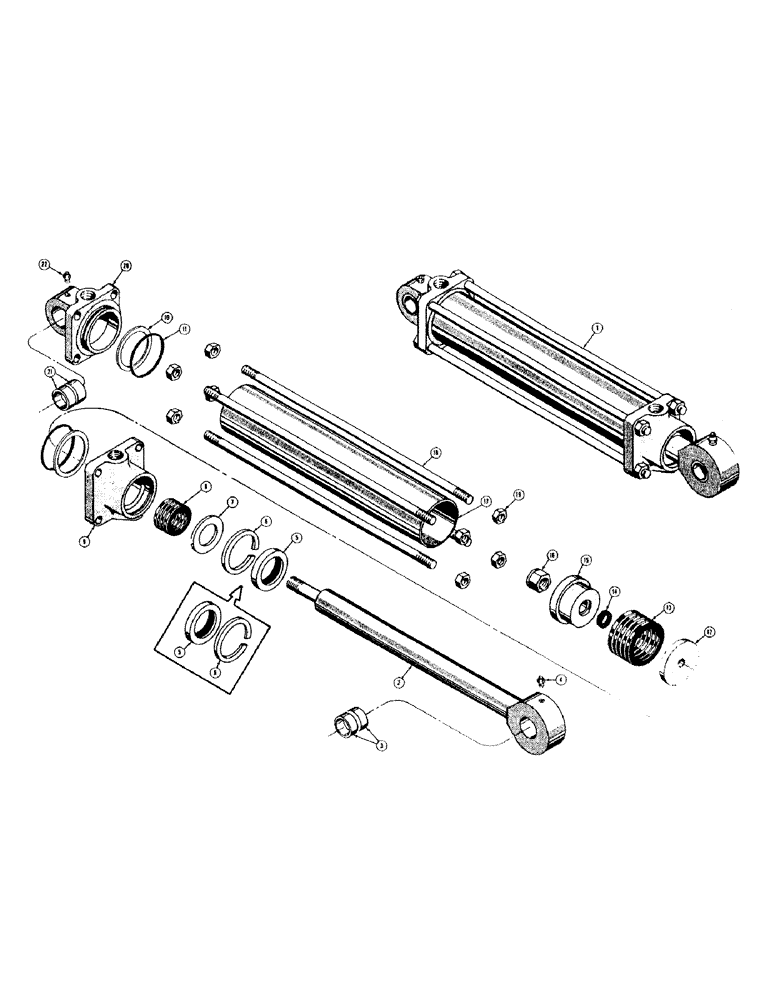

Запчасти Case 420B (232) - 30530 AND D23774 BACKHOE HYDRAULIC BUCKET CYLINDERS

1

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - bucket, hydraulic (Use D23774), Includes: Ref. 2 - 22

1шт.

D23774

CYLINDER - bucket, hydraulic, Includes: Ref. 2 - 22

1шт.

2

D20036

ROD

- piston, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

6

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

7

70741

X

WASHER - packing (1/8" thick) (Used on 30567 end cap)

1шт.

D25043

WASHER

- packing (1/4" thick) (Used on D25596 end cap)

1шт.

8

30568

PACKING

- piston rod

1шт.

9

30567

FLANGE

CAP - cylinder end (Use D25596 and D25043)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D25596

CAP - cylinder end (When replacing 30567 end cap, also order 1-D25043 washer)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24987

RING

- leather backup (Used only with cylinder end and cap that has .210" wide "O" ring groove)

2шт.

D25495

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING - seal, cylinder

2шт.

12

NLS

NO LONGER SERVICED

WASHER - piston packing

1шт.

13

17578

PACKING

- piston

1шт.

14

A7523

PIN

"O" RING - seal, piston rod (Used with D23736 piston)

1шт.

15

30571

PISTON - cylinder (No "O" ring) (Use D23736, D23688, and A7623)

1шт.

D23736

PISTON - cylinder (With "O" ring) (When replacing 30571 piston without "O" ring, also order A7623 "O" ring and D23688 nut)

1шт.

16

48378

X

NUT - hex., lock (1-14 NF) (Used with 30571 piston)

1шт.

D23688

X

NUT - hex., lock (1-14 NF) (Used with D23736 piston)

1шт.

17

30570

DRAWBAR

TUBE - cylinder

1шт.

18

30569

ROD

- tie

4шт.

19

230-4618

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2-20 NF)

8шт.

20

D20054

END - cylinder, Includes: Ref. 21

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.
