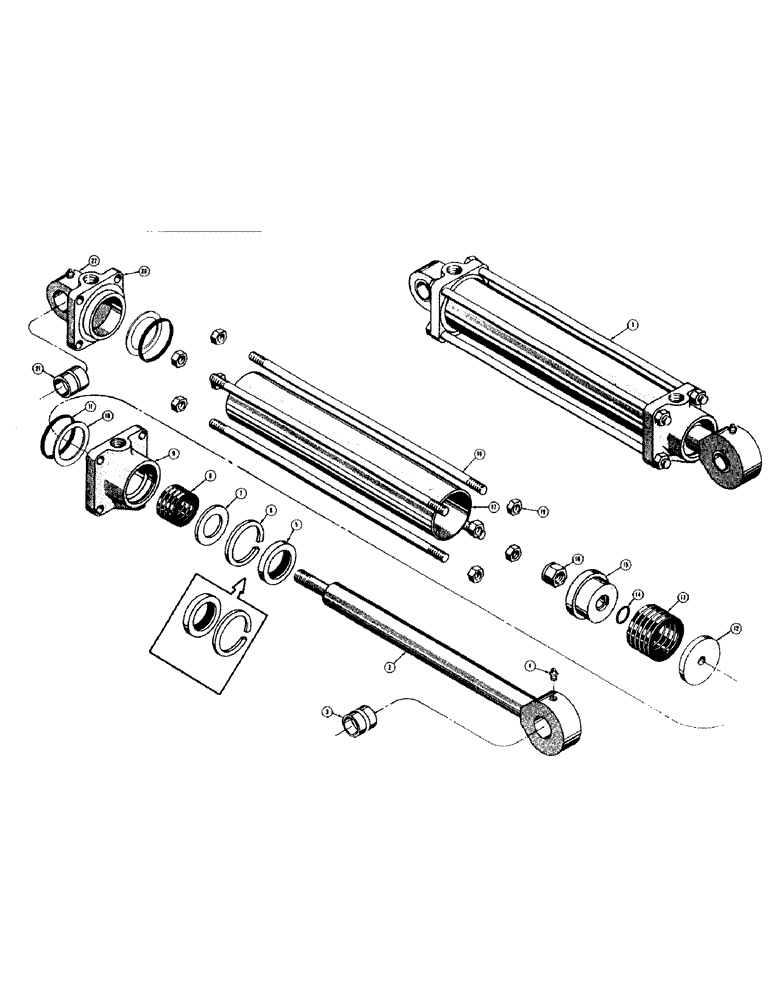

Запчасти Case 420B (230) - 36770 HYDRAULIC CROWD CYLINDER

1

36770

CYLINDER - crowd, hydraulic, Includes: Ref. 2 - 22

1шт.

2

D20042

ROD - piston, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

31525

WIPER SEAL

- wiper, piston rod

1шт.

6

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

7

31539

WASHER

- piston rod packing (1/8" thick)

1шт.

D25044

WASHER

- piston rod packing (1/4" thick)

1шт.

8

17598

PACKING

- piston rod

1шт.

9

73348

CAP - cylinder end (When replacing cap using 31359 washer 1/8" thick, also order 1-D25044 washer 1/4" thick)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24988

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25496

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - seal, cylinder tube

2шт.

12

31519

LOCKING PLATE

WASHER - packing, piston

1шт.

13

31526

PACKING

- piston

1шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - seal, piston rod (Used with D23738 piston only)

1шт.

15

31520

PISTON - cylinder (No "O" ring) (Use D23737, D23688, and A7623)

1шт.

D23737

PISTON - cylinder (With "O" ring) (When replacing 31520 piston, also order 1-A7623 "O" ring and 1-D23688 nut)

1шт.

16

131-19

LOCK NUT,1"-14, GB

NUT - hex, lock (31520 piston only) 1"-14 NF

1шт.

D23688

X

NUT - hex, lock (D23737 piston only) 1"-14 NF

1шт.

17

36771

TUBE - cylinder

1шт.

18

36788

ROD - tie

4шт.

19

131-154

LOCK NUT,5/8"-18, GA

NUT - hex, lock (5/8"-18 NF)

8шт.

20

D20037

END - cylinder, Includes: Ref. 21

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.
