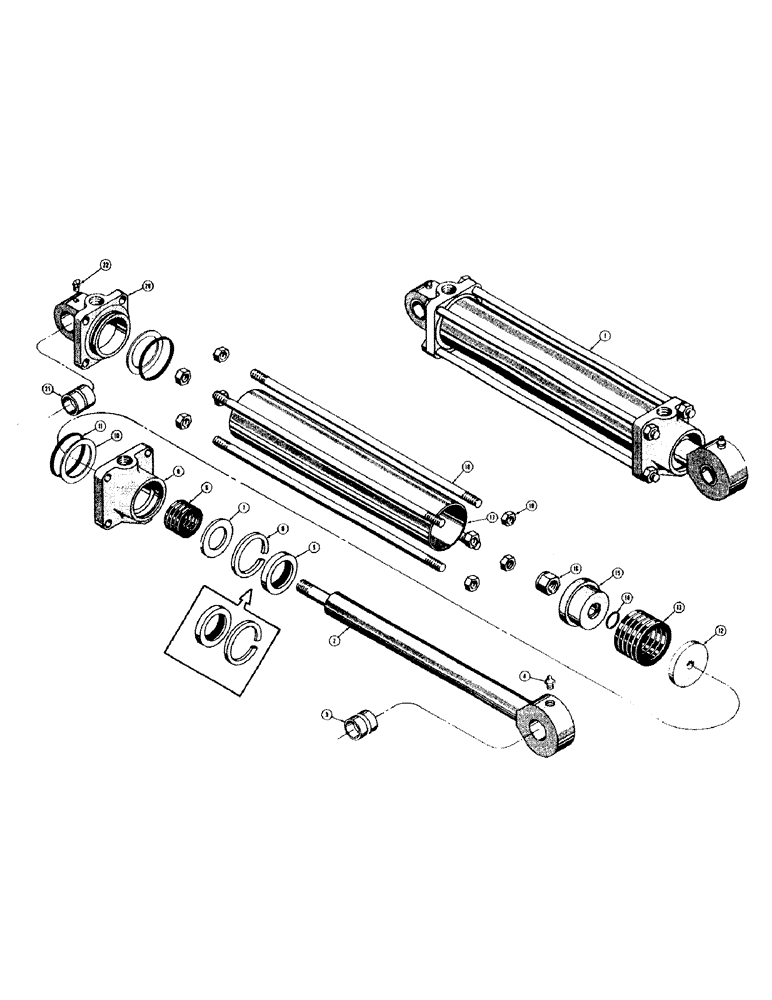

Запчасти Case 420B (228) - D24418 HYDRAULIC BOOM CYLINDER (OPTIONAL - 4" DIA.)

1

D24418

CYLINDER - boom, hydraulic (4") see 30670, Includes: Ref. 2 - 22

1шт.

2

D20039

ROD - piston, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

6

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

7

70741

X

WASHER - packing, piston rod (1/8" thick)

1шт.

D25043

WASHER

- packing, piston rod (1/4" thick)

1шт.

8

30568

PACKING

- piston rod

1шт.

9

D24391

CAP - cylinder end (Replacement cap will use D25043 washer)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24988

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25496

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - seal, cylinder

2шт.

12

31519

LOCKING PLATE

WASHER - packing, piston

1шт.

13

31526

PACKING

- piston

1шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - seal, piston rod

1шт.

15

D23737

PISTON - cylinder

1шт.

16

D23688

X

NUT - hex, lock (1-14 NF)

1шт.

17

34884

CABLE PULLING GRIP,3.995" ID, 4.387" OD, 38.447" Length

TUBE - cylinder

1шт.

18

34885

ROD - tie

4шт.

19

131-154

LOCK NUT,5/8"-18, GA

NUT - hex, lock (5/8-18 NF)

8шт.

20

D24557

END - cylinder, Includes: Ref. 21

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.
