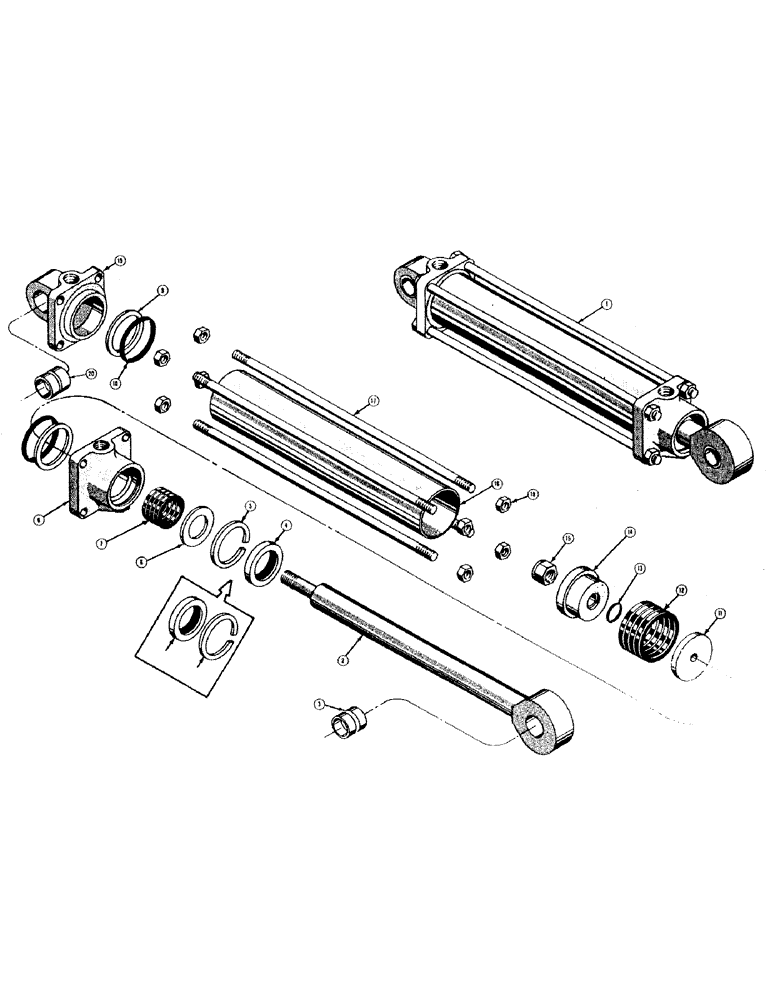

Запчасти Case 420B (222) - 38464 HYDRAULIC STABILIZER CYLINDERS

1

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic, Includes: Ref. 2 - 20

2шт.

2

D20028

ROD - piston, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke

2шт.

4

17583

WIPER SEAL

- wiper, piston rod

1шт.

5

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

6

70740

WASHER

- packing, piston rod (Used with 32486 cylinder end cap only) (1/8" thick)

1шт.

D25042

WASHER

- packing, piston rod (Used with D25584 cylinder end cap only (1/4" thick)

1шт.

7

17577

PACKING

- piston rod

1шт.

8

32486

RATCHET

CAP - end, cylinder (Use D25042 and D25584)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D25584

CAP

- end, cylinder (When replacing 32486 end cap, also order 1-D25042 washer)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

9

D24986

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25494

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

10

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

"O" RING - seal, cylinder tube

2шт.

11

31661

WASHER

- packing, piston

1шт.

12

31662

PACKING

- piston

1шт.

13

O3522CK

X

"O" RING - seal (Used with D23735 piston only)

1шт.

14

31663

X

PISTON - cylinder (No. "O" ring) (Use D23735, D23739, and O3522CK)

1шт.

D23735

PISTON

- cylinder (With "O" ring) (When replacing 31663 piston, also order 1-O3522CK "O" ring and 1-D23739 lock nut)

1шт.

15

131-152

HARDWARE

NUT - hex, lock (31663 piston only) 3/4-16 NF

1шт.

D23739

LOCK NUT

NUT - hex, lock (D23735 piston only) 3/4-16 NF

1шт.

16

31750

TUBE - cylinder

1шт.

17

34939

ROD - tie

4шт.

18

230-4618

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2-20 NF)

8шт.

19

D20055

END - cylinder, Includes: Ref. 20

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.
