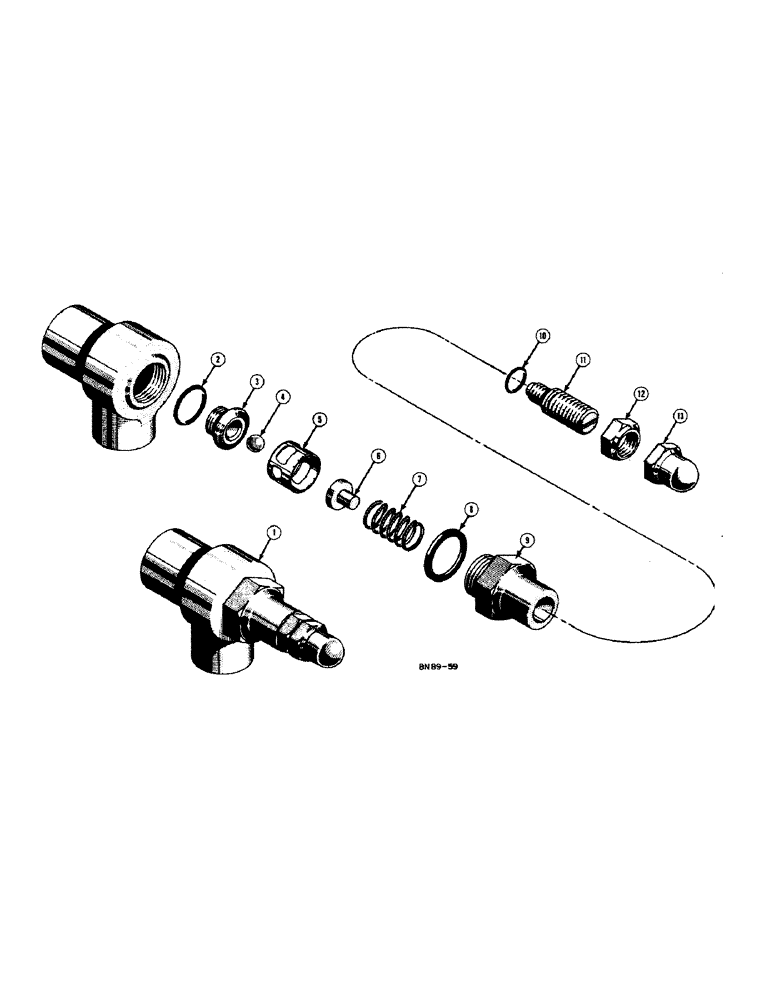

Запчасти Case 420B (220) - 33959 SPECIAL RELIEF VALVE

1

NLS

NO LONGER SERVICED

VALVE - relief (Has #985 on body) (Use D24452), Includes: Ref. 2 - 13

1шт.

2

O8416AB

X

"O" RING - seal, valve seat

1шт.

3

34119

SEAT, VALVE

SEAT - valve

1шт.

4

O7210AB

X

BALL - relief valve (1/2" dia.)

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- body cap

1шт.

9

34113

BODY

CAP - body

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

"O" RING - seal, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting

1шт.

12

34111

X

NUT - hex, jam

1шт.

13

34109

NUT - cap, hex.

1шт.
