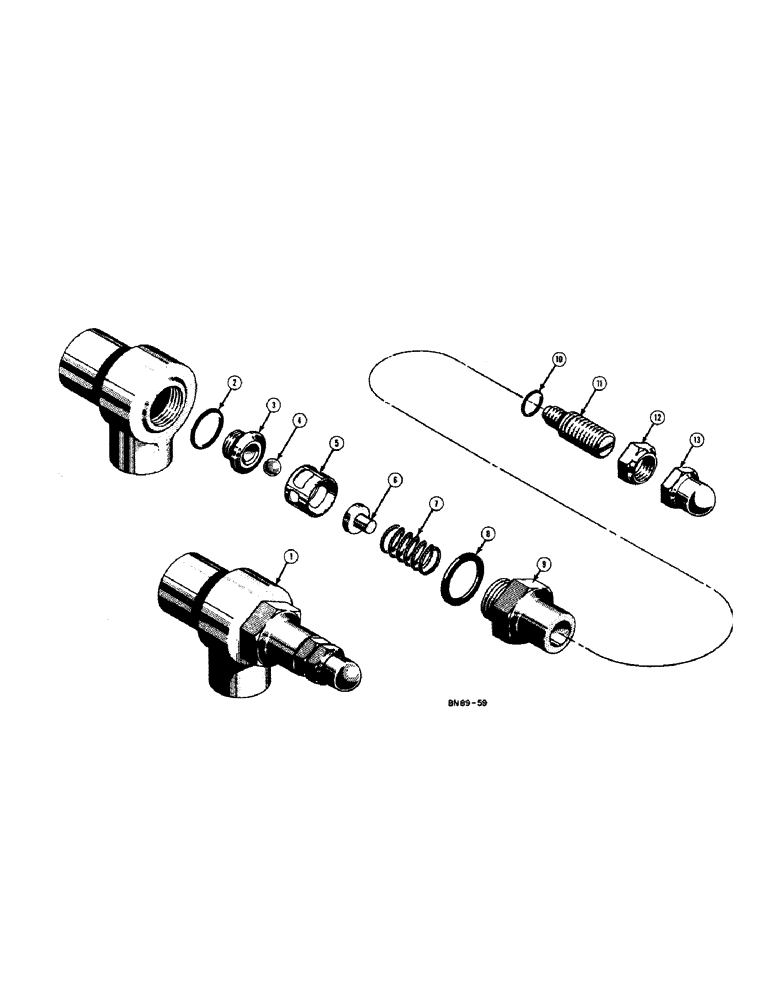

Запчасти Case 420B (220[A]) - D24452 RELIEF VALVE

1

D24452

VALVE

- relief (Has #2716 on body), Includes: Ref. 2 - 13

1шт.

2

D23928

O-RING

"O" RING - seal, valve seat

1шт.

3

D24406

SEAT

- valve

1шт.

4

O7210AB

X

BALL - relief valve (1/2" dia.)

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- body cap

1шт.

9

34113

BODY

CAP - body

1шт.

10

34112

CLIP

"O" RING - seal, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting

1шт.

12

34111

X

NUT - hex, jam

1шт.

13

34109

NUT - cap, hex

1шт.
