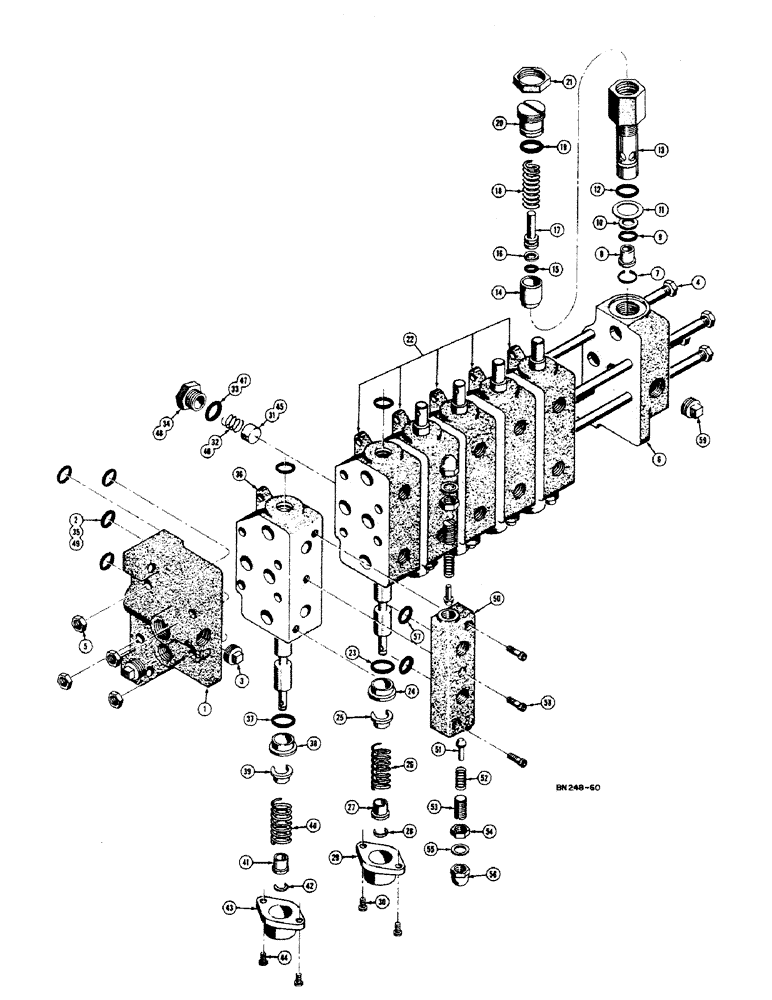

Запчасти Case 420B (216) - D24433 HYDRAULIC CONTROL VALVE, (USED ON MODELS WITH HIGH PRESSURE CARRY OVER LINE)

D24433

VALVE

- control hydraulic, Includes: Ref. 1 - 58

1шт.

1

D24943

SECTION - outlet, control valve, Includes: Ref. 2 and 3

1шт.

2

D21922

O-RING

"O" RING - seal, valve body

4шт.

3

221-15

PLUG,Sq Hd, 3/4"-14

- pipe 3/4 NPT ext. sq. hd.

2шт.

4

38578

SOCKET WRENCH

STUD - valve tie (1/2-20 NF x 16-3/4)

4шт.

5

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, lock (1/2-20 NF)

4шт.

6

D23813

SECTION - inlet, control valve, Includes: Ref. 7 - 21

1шт.

R14175

CARTRIDGE - main relief, Includes: Ref. 7 - 21

1шт.

7

R15512

SNAP RING,#87, .929", Int, Spiral

- poppet retaining

1шт.

8

R12511

POPPET

- relief valve

1шт.

9

O9787AB

X

"O" RING - seal, poppet

1шт.

10

R12512

OIL SEAL

RING - backup, poppet

1шт.

11

23146

WASHER

- fiber, relief valve shell

1шт.

12

O8377AB

X

"O" RING - seal, relief valve shell

1шт.

13

R12505

SHELL - cartridge, relief valve

1шт.

14

R12510

SEAT

- floating valve

1шт.

15

O8416AB

X

"O" RING - seal, floating seat

1шт.

16

R12509

RING

- backup, displacement plunger

1шт.

17

R12508

PLUNGER - displacement, floating seat

1шт.

18

23136

SPRING

- compression, plunger

1шт.

19

O8377AB

X

"O" RING - seal, adjusting screw

1шт.

20

R12506

SCREW - spring adjusting

1шт.

21

R12507

LOCK NUT

- lock, spring adjusting screw

1шт.

22

D23826

SECTION - valve, stabilizers, boom, crowd, and bucket cylinder control, Includes: Ref. 23 - 35

5шт.

23

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING - seal, valve spool

2шт.

24

23122

HYDRAULIC HOSE

RETAINER - "O" ring, valve spool

1шт.

25

16205

RETAINER - spring, spool centering

1шт.

26

23127

SPRING

- spool centering

1шт.

27

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering

1шт.

28

NLS

NO LONGER SERVICED

- spring guide, spool centering

1шт.

29

23115

HYDRAULIC HOSE

CAP - valve spool

1шт.

30

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16-18 NC x 3/4

2шт.

31

23116

HYDRAULIC HOSE

POPPET - check valve, valve section

1шт.

32

23118

HYDRAULIC HOSE

SPRING - poppet, check valve

1шт.

33

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

"O" RING - seal, check valve cap

1шт.

34

23117

HYDRAULIC HOSE

CAP - check valve, valve section

1шт.

35

D21922

O-RING

"O" RING - seal, valve body

4шт.

D23825

SECTION - swing cylinder control, Includes: Ref. 36 - 58

1шт.

36

D23829

SECTION - valve, swing cylinder control, Includes: Ref. 37 - 49

1шт.

37

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING - seal, valve spool

2шт.

38

23122

HYDRAULIC HOSE

RETAINER - "O" ring, valve spool

1шт.

39

16205

RETAINER - spring, spool centering

1шт.

40

23127

SPRING

- spool centering

1шт.

41

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering

1шт.

42

16413

HOSE

- spring guide, spool centering

1шт.

43

23115

HYDRAULIC HOSE

CAP - valve spool

1шт.

44

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16-18 NC x 3/4

2шт.

45

23116

HYDRAULIC HOSE

POPPET - check valve, valve section

1шт.

46

23118

HYDRAULIC HOSE

SPRING - poppet, check valve

1шт.

47

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

"O" RING - seal, check valve cap

1шт.

48

23117

HYDRAULIC HOSE

CAP - check valve, valve section

1шт.

49

D21922

O-RING

"O" RING - seal, valve body

4шт.

50

D23827

VALVE - relief, swing cylinders, Includes: Ref. 51 - 57

1шт.

51

16227

HOSE

POPPET - relief valve

2шт.

52

NLS

NO LONGER SERVICED

SPRING - poppet, relief valve

2шт.

53

NLS

NO LONGER SERVICED

SCREW - adjusting, swing cylinder relief valve

2шт.

54

25-119

NUT,9/16"-18, G5

- hex. (9/16-18 NF)

2шт.

55

16219

GASKET

- jam nut and cap nut (Copper and lead)

4шт.

56

48355

NUT - acorn hex. (9/16-18 NF)

2шт.

57

D21922

O-RING

"O" RING - seal, valve, Serial Range: body-section

2шт.

58

83-624

SET SCREW,Hex Soc, 3/8"-16 x 1 1/2"

SHCS - 3/8-16 NC x 1-1/2

3шт.

59

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4 NPT ext. sq. hd.

1шт.
