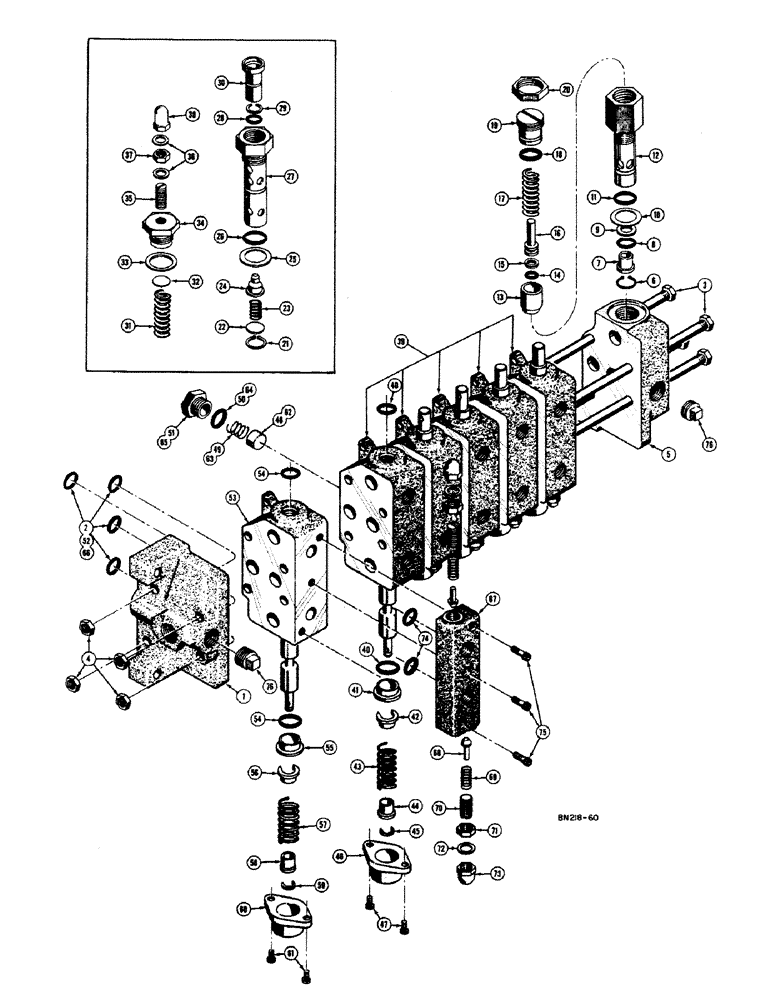

Запчасти Case 420B (212) - D23812 BACKHOE HYDRAULIC CONTROL VALVE, (USED ON MODELS W/O HIGH PRESSURE CARRY OVER LINE)

D23812

VALVE

- control, hydraulic, Includes: Ref. 1 - 64

1шт.

1

D23824

SECTION - outlet, control valve, Includes: Ref. 2

1шт.

2

D21922

O-RING

"O" RING - seal, valve body

4шт.

3

38578

SOCKET WRENCH

STUD - valve tie (1/2-20 NF x 16-3/4)

4шт.

4

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2-20 NF)

4шт.

5

D23813

SECTION - inlet, control valve, Includes: Ref. 6 - 38

1шт.

R14175

CARTRIDGE - main relief (Replacement only - see 23130 below), Includes: Ref. 6 - 20

1шт.

6

R15512

SNAP RING,#87, .929", Int, Spiral

- poppet retaining

1шт.

7

R12511

POPPET

- relief valve

1шт.

8

O9787AB

X

"O" RING - seal, poppet

1шт.

9

R12512

OIL SEAL

RING - backup, poppet

1шт.

10

23146

WASHER

- fibre, relief valve shell

1шт.

11

O8377AB

X

"O" RING - seal, relief valve shell

1шт.

12

R12505

SHELL - cartridge, relief valve

1шт.

13

R12510

SEAT

- floating valve

1шт.

14

O8416AB

X

"O" RING - seal, floating seat

1шт.

15

R12509

RING

- backup, displacement plunger

1шт.

16

R12508

PLUNGER - displacement, floating seat

1шт.

17

23136

SPRING

- compression, plunger

1шт.

18

O8377AB

X

"O" RING - seal, adjusting screw

1шт.

19

R12506

SCREW - spring adjusting

1шт.

20

R12507

LOCK NUT

- lock, spring adjusting screw

1шт.

23130

CARTRIDGE - main relief (Original equipment - use R14175), Includes: Ref. 21 - 38

1шт.

21

23138

O-RING

SNAP RING - poppet retaining

1шт.

22

23144

THREADED TIE-ROD

WASHER - poppet spring

1шт.

23

23137

VALVE SPRING

SPRING - poppet

1шт.

24

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

25

23146

WASHER

- fibre, relief valve shell

1шт.

26

O8377AB

X

"O" RING - seal, relief valve shell

1шт.

27

23133

HYDRAULIC HOSE

SHELL - cartridge, relief valve

1шт.

28

VT2983

X

"O" RING - seal, valve seat

1шт.

29

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup, "O" ring

1шт.

30

23135

HYDRAULIC HOSE

SEAT - floating valve

1шт.

31

23136

SPRING

- seat

1шт.

32

23143

WASHER

- relief valve spring

1шт.

33

23148

SEAL

WASHER - fibre, relief valve cap

1шт.

34

23139

GASKET

CAP - valve

1шт.

35

23140

STUD

SCREW - spring adjusting, relief valve

1шт.

36

23150

WASHER

- adjusting screw nut (Copper)

2шт.

37

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8-24 NF)

1шт.

38

NLS

NO LONGER SERVICED

NUT - acorn, adjusting screw cap

1шт.

39

D23826

SECTION - valve, stabilizer, boom, crowd and bucket cylinder control, Includes: Ref. 40 - 52

5шт.

40

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING - seal, valve spool

2шт.

41

23122

HYDRAULIC HOSE

RETAINER - "O" ring, valve spool

1шт.

42

16205

RETAINER - spring, spool centering

1шт.

43

23127

SPRING

- spool centering

1шт.

44

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering

1шт.

45

NLS

NO LONGER SERVICED

- spring guide, spool centering

1шт.

46

23115

HYDRAULIC HOSE

CAP - valve spool

1шт.

47

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16-18 NC x 3/4

2шт.

48

23116

HYDRAULIC HOSE

POPPET - check valve, valve section

1шт.

49

23118

HYDRAULIC HOSE

SPRING - poppet, check valve

1шт.

50

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

"O" RING - seal, check valve cap

1шт.

51

23117

HYDRAULIC HOSE

CAP - check valve, valve section

1шт.

52

D21922

O-RING

"O" RING - seal, valve body

4шт.

D23825

SECTION - swing cylinder control, Includes: Ref. 54 - 66

1шт.

53

D23829

SECTION - valve, swing cylinder control

1шт.

54

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING - seal, valve spool

2шт.

55

23122

HYDRAULIC HOSE

RETAINER - "O" ring, valve spool

1шт.

56

16205

RETAINER - spring, spool centering

1шт.

57

23127

SPRING

- spool centering

1шт.

58

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering

1шт.

59

16413

HOSE

- spring guide, spool centering

1шт.

60

23115

HYDRAULIC HOSE

CAP - valve spool

1шт.

61

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16-18 NC x 3/4

2шт.

62

23116

HYDRAULIC HOSE

POPPET - check valve, valve section

1шт.

63

23118

HYDRAULIC HOSE

SPRING - poppet, check valve

1шт.

64

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

"O" RING - seal, check valve cap

1шт.

65

23117

HYDRAULIC HOSE

CAP - check valve, valve section

1шт.

66

D21922

O-RING

"O" RING - seal, valve body

4шт.

67

D23827

VALVE - relief, swing cylinders, Includes: Ref. 68 - 74

1шт.

68

16227

HOSE

POPPET - relief valve

2шт.

69

16404

SPRING CUP

SPRING - poppet, relief valve

2шт.

70

NLS

NO LONGER SERVICED

SCREW - adjusting, swing cylinder relief valve

2шт.

71

25-119

NUT,9/16"-18, G5

- hex. (9/16-18 NF)

2шт.

72

16219

GASKET

- jam nut and cap nut (Copper and lead)

4шт.

73

48355

NUT - acorn, hex. (9/16-18 NF)

2шт.

74

D21922

O-RING

"O" RING - seal, valve, Serial Range: body-section

2шт.

75

83-624

SET SCREW,Hex Soc, 3/8"-16 x 1 1/2"

SHCS - 3/8-16 NC x 1-1/2

3шт.

76

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4 NPT ext. sq. hd.

2шт.
