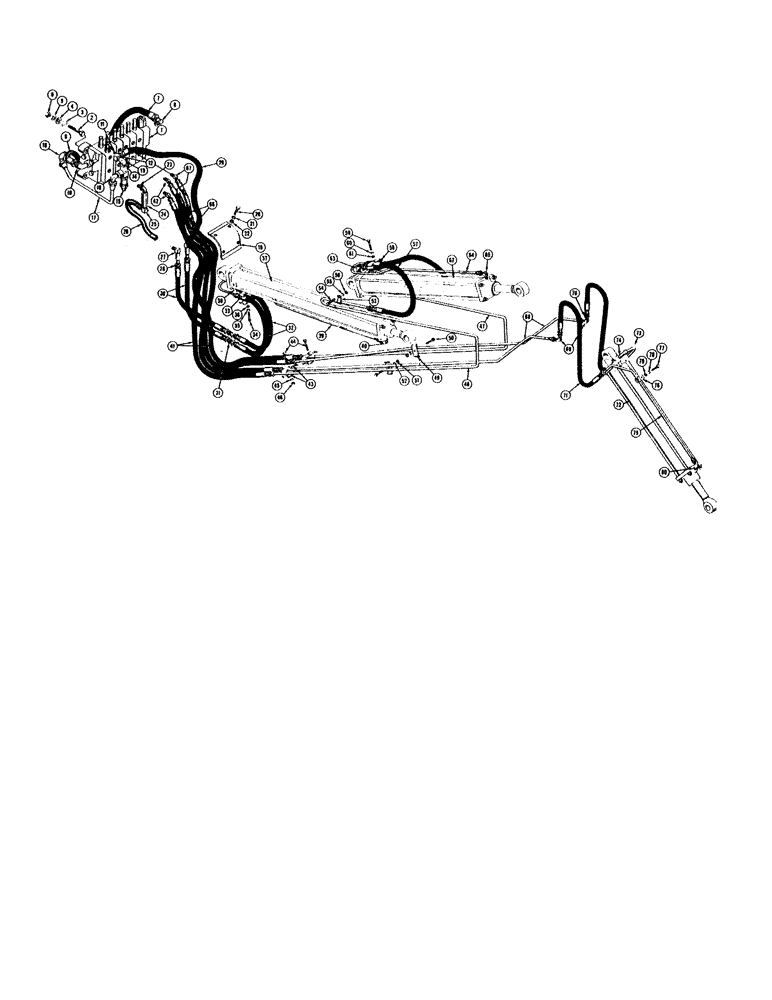

Запчасти Case 420B (208) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, (WITH HIGH PRESSURE CARRY OVER)

VALVE

1шт.

1

D24433

VALVE

- hydraulic control, backhoe (See Figure 216 for breakdown)

1шт.

2

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2-20 NF x 2-1/2

3шт.

3

33496

BRAKE LINING

SHIM - valve mounting

1шт.

4

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D.)

3шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

3шт.

7

36232

HOSE ASSY.

HOSE - high pressure, pump to valve (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

8

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees male (3/4 JIC x 3/4 NPT)

1шт.

9

36232

HOSE ASSY.

HOSE - backhoe control valve to loader control valve (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

10

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

11

D21315

NIPPLE - pipe, control valve to boom down pressure line tee (1/2 NPT x 3-1/2)

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

12

D21911

TEE - boom down pressure line (1/2 NPT)

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

13

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees street (1/2 NPT)

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

14

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - (1/2 NPT x 1-1/2)

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

15

D24452

VALVE

- relief (See page 220 for breakdown)

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

16

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT)

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

17

D24727

TUBE - relief valve to high pressure carry-over line

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

18

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (5/8 JIC x 3/4 NPT)

1шт.

See Figure 218 for high pressure carry-over breakdown

1шт.

19

35192

BRACKET - hose mounting

1шт.

20

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8-24 NF x 1-3/4

4шт.

21

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

4шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

4шт.

23

D21316

NIPPLE - pipe (1/2 NPT x 2), boom cylinder hydraulics

1шт.

24

60374

VALVE

- flow control (See Figure 218 for breakdown), boom cylinder hydraulics

1шт.

25

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT), boom cylinder hydraulics

1шт.

26

D21320

HOSE - flow control valve to L.H. male elbow (1/2" I.D. x 7/8" O.D. x 15"), boom cylinder hydraulics

1шт.

27

50878

ROLLER

ELBOW - 90 degrees special, boom cylinder hose,hydraulics

2шт.

28

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex., jam (7/8-14 NF), boom cylinder hydraulics

2шт.

29

D21317

HOSE - pipe to R.H. male elbow (1/2" I.D. x 7/8" O.D. x 22-1/2"), boom cylinder hydraulics

1шт.

30

35197

SHEAVE

HOSE - male elbow to lower bulkhead (1/2" I.D. x 7/8" O.D. x 22"), boom cylinder hydraulics

2шт.

31

D21698

UNION

- lower bulkhead, boom cylinder hoses,hydraulics

2шт.

32

35209

HOSE ASSY.

HOSE - lower bulkhead to boom cylinder (1/2" I.D. x 7/8" O.D. x 32"),hydraulics

2шт.

33

31665

COLLAR CLAMP

CLAMP - hose, boom cylinder,hydraulics

2шт.

34

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Hydraulics Hex, 5/16"-24 x 1 3/4", G5

1шт.

35

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , boom cylinder hydraulics 5/16"

1шт.

36

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), boom cylinder hydraulics

1шт.

37

D24418

CYLINDER - hydraulic, boom (See Figure 228 for breakdown)

1шт.

38

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT), boom cylinder hydraulics

1шт.

39

35206

TUBE - boom cylinder rear port, hydraulics

1шт.

40

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT), boom cylinder hydraulics

1шт.

41

D21700

HOSE

- valve to crowd cylinder tubes (1/2" I.D. x 7/8" O.D. x 65"), hydraulics

2шт.

42

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male elbow (5/8 JIC x 1/2 NPT), crowd cylinder hydraulics

2шт.

43

31665

COLLAR CLAMP

CLAMP - tube, crowd cylinder hydraulics

4шт.

44

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Crowd cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

2шт.

45

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , crowd cylinder hydraulics 5/16"

2шт.

46

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), crowd cylinder hydraulics

2шт.

47

D21712

TUBE - R.H., valve hose to crowd cylinder hose, hydraulics

1шт.

48

D21713

TUBE - L.H., valve hose to crowd cylinder hose, hydraulics

1шт.

49

31665

COLLAR CLAMP

CLAMP - tube, crowd cylinder hydraulics

2шт.

50

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Crowd cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

2шт.

51

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , crowd cylinder hydraulics 5/16"

2шт.

52

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), crowd cylinder hydraulics

2шт.

53

D20043

CLAMP - tube, crowd cylinder hydraulics

2шт.

54

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Crowd cylinder hydraulics

2шт.

55

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crowd cylinder hydraulics 1/4"

2шт.

56

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF), crowd cylinder hydraulics

2шт.

57

38410

HOSE

- tubes to crowd cylinder (1/2" I.D. x 7/8" O.D. x 22-1/2"), hydraulics

2шт.

58

31665

COLLAR CLAMP

CLAMP - tube, crowd cylinder hydraulics

2шт.

59

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Crowd cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

1шт.

60

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , crowd cylinder hydraulics 5/16"

1шт.

61

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), crowd cylinder hydraulics

1шт.

62

36770

CYLINDER - hydraulic, crowd (See Figure 230 for breakdown)

1шт.

63

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (5/8 JIC x 1/2 NPT), crowd cylinder hydraulics

1шт.

64

36811

ELECTRIC CABLE

TUBE - crowd cylinder rear port, hydraulics

1шт.

65

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT), crowd cylinder hydraulics

1шт.

66

D21700

HOSE

- valve to bucket cylinder tubes (1/2" I.D. x 7/8" O.D. x 65"), hydraulics

2шт.

67

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male (5/8 JIC x 1/2 NPT), bucket cylinder hydraulics

2шт.

68

D21715

TUBE - valve to bucket cylinder, hydraulics

2шт.

69

D21699

ELBOW - bulkhead, 90 degrees (5/8 JIC), bucket cylinder hydraulics

2шт.

70

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex., jam (7/8-14 NF), bucket cylinder hydraulics

2шт.

71

19178

HOSE

- tubes to bucket cylinder (1/2" I.D. x 7/8" O.D. x 33-1/2"), hydraulics

2шт.

72

D23774

CYLINDER - hydraulic, bucket (See Figure 232 for breakdown)

1шт.

73

D20255

TUBE - bucket cylinder front port, hydraulics

1шт.

74

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT), bucket cylinder hydraulics

1шт.

75

35027

HYD TUBE

TUBE - bucket cylinder rear port, hydraulics

1шт.

76

31665

COLLAR CLAMP

CLAMP - tube, bucket cylinder hydraulics

2шт.

77

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Bucket cylinder hydraulics Hex, 5/16"-24 x 1 1/4", G5

1шт.

78

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , bucket cylinder hydraulics 5/16"

1шт.

79

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), bucket cylinder hydraulics

1шт.

80

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT), bucket cylinder hydraulics

1шт.
